REV 0, June 2005Page 296
Operation Manual SUPREMA
12. Sensor Data Sheets
12.24 SUPREMA Sensor Data Sheet DF-7100
Order No.: D0792611

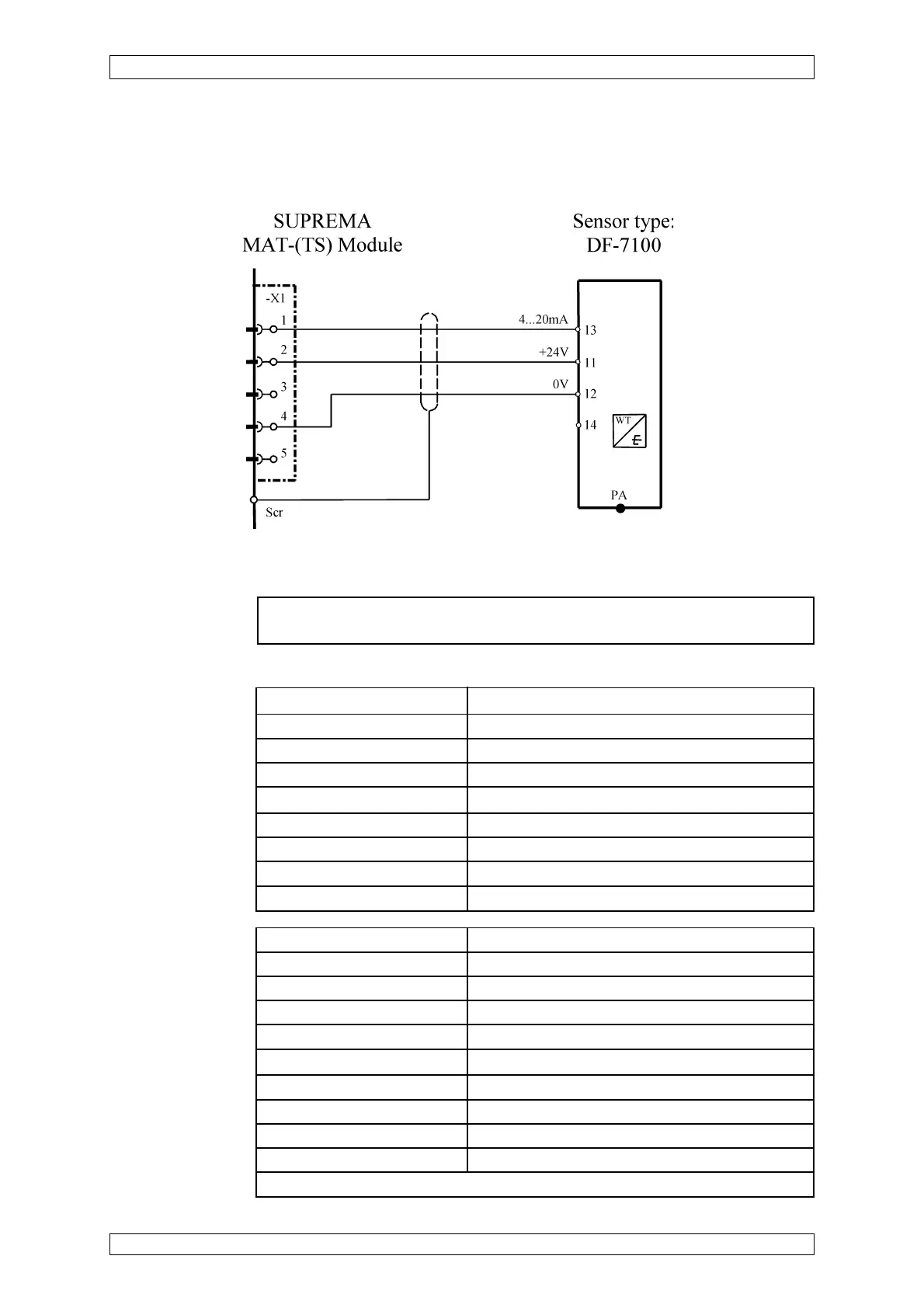

The cable screen is connected to the SUPREMA and the DF-7100.
Connection module: MCI 10/MCI 20 (active/3-wire/4 ... 20 mA linear/current supply)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Connection data: Supply voltage 16 ... 32 VDC
Operation current approx. 100 mA
Power consumption 2.5 W (without cable length)
Cable type 3-core, 80 % screened
Maximum burden 200 ohms
Maximum cable length 1000 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 12 mm
Cross section per wire allowed 0.5 ... 2.5 mm
2
Cable inlet Pg 13.5
Conditions for use: Mounting Wall mounting
Ingress protection IP 54 according to EN 60529
Explosion protection II 2G EEx d m e[[ib]] IIC T6
Type test approval DMT 99 ATEX E 023 X
Temperature -20 °C to +40 °C
Humidity 5 ... 95 % rel. humidity; noncondensing
Pressure 950 ... 1100 hPa
Weight approx. 1.5 kg
Housing material Aluminium Die cast (polyester-coated)
Dimensions W x D x H 150 mm x 88 mm x 158 mm
For further details see operation manual. (Order No.: D0792151)
