MSA SUPREMA - Figure 5-40: MAT Module;Mat-TS Module, Connector Plug; Table 5-30: MAT-;MAT-TS Module Terminal Assignment, Analogue Outputs; Table 5-31: MGT-40-TS-Module Terminal Assignment, Analogue Outputs

REV 0, June 2005 Page 149
Operation Manual SUPREMA
5. Installation
Attention: In the standard design with the MAT module plugged into the rack, the
first MAI module is in the 7
th
slot (position 2/measurement channel nos. 9–16).
Therefore two MAO module cards must be plugged in so that the measurement
values of measurement channels 9–16 can be transmitted as analogue signals.
The analogue signals can be accepted directly on the rack at the terminals of a MAT module
plugged into the rear of the rack.

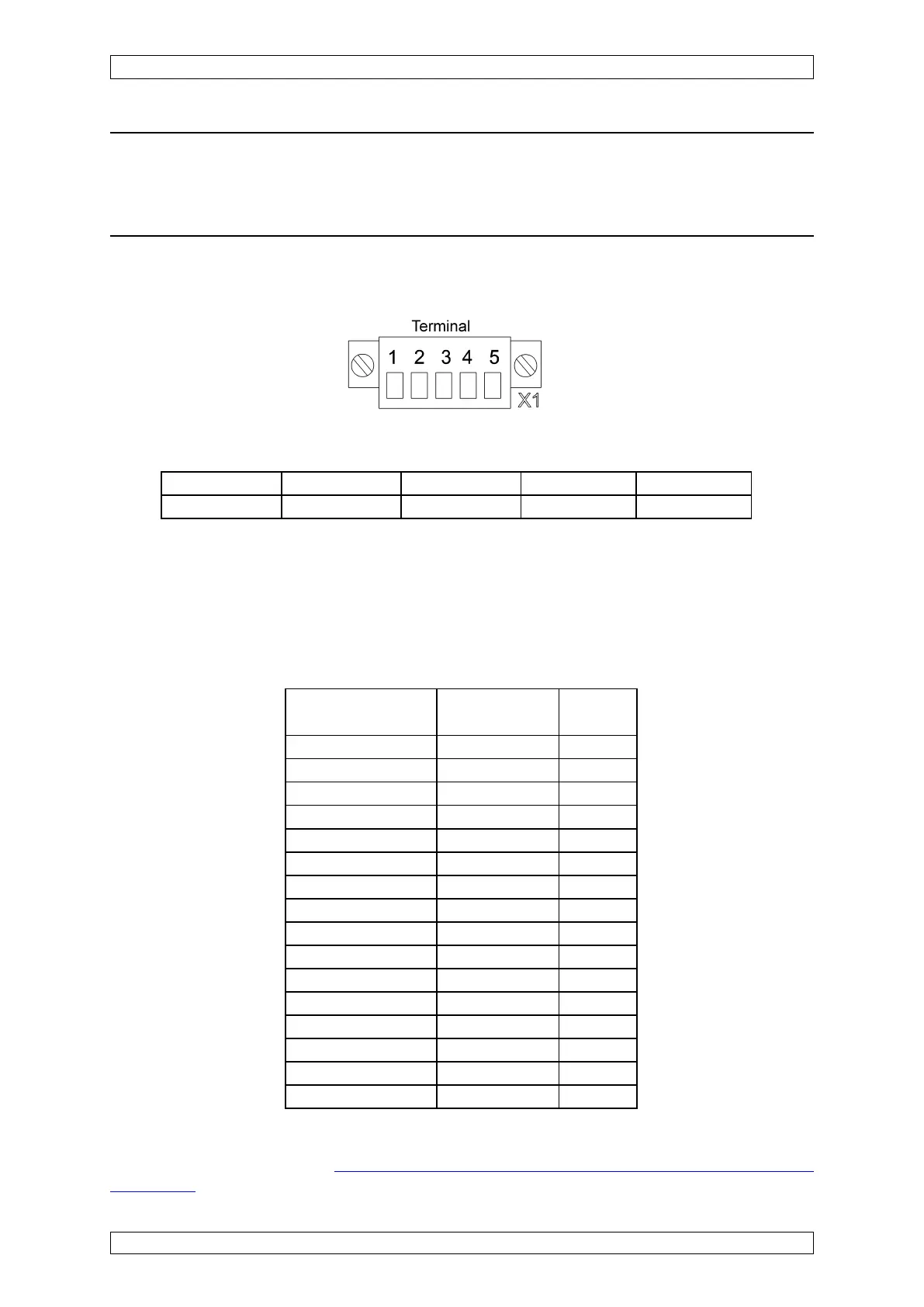

Figure 5-40: MAT module/MAT-TS module, connector plug
Terminal No. 1 Terminal No. 2 Terminal No. 3 Terminal No 4 Terminal No 5
+ Ia - Ia
Table 5-30: MAT-/MAT-TS Module Terminal Assignment, Analogue Outputs
For remote connection with mounting rail installation, the MAT-TS module (conductor cross
section, 0.2 ... 1.5 mm
2
) or the MGT-40-TS module (conductor cross section, 0.2 ... 2.5 mm
2
)
is provided, which are connected to the MAO module card by a 40-way ribbon cable and the
MUT module.
Table 5-31: MGT-40-TS-Module Terminal Assignment, Analogue Outputs
The cables must be screened (see section 5.1.1 Installation Instructions for Following the EMC
Directives).
Analogausgangs- Klemmen-Nr. Funktion
kanal (MGT-40-TS)
16+ Ia
3- Ia
29+ Ia
10 - Ia
316+ Ia
13 - Ia
419+ Ia
20 - Ia
526+ Ia
23 - Ia
629+ Ia
30 - Ia
736+ Ia
33 - Ia
839+ Ia
40 - Ia
