12.47 SUPREMA Sensor Data Sheet UltimaX (3-wire for Explosive
Gases/Tox and O
2
)
Order No.: 10044xxx (xxx-according to order sheet)
Conditions for use: Mounting Wall mounting/Mounting bracket
Remote sensor option
Ingress protection IP 66/IP 67 EN 60529
Certificate DMT 02 ATEX E 202 X
II 2G EEx d IIC T4, -40 °C ≤ Ta ≤ +60 °C
Temperature -40 °C to +60 °C see operation manual
Humidity 15 ... 95 % rel. humidity; noncondensing
Pressure 800 ... 1200 hPa
Weight approx. 4.7 kg
Dimensions W x D x H 160.3 mm x 99.3 mm x 261.1 mm
Housing material Stainless steel (ASMT 316/DIN 1.4401)
For further details see operation manual, Order No.: 10046690

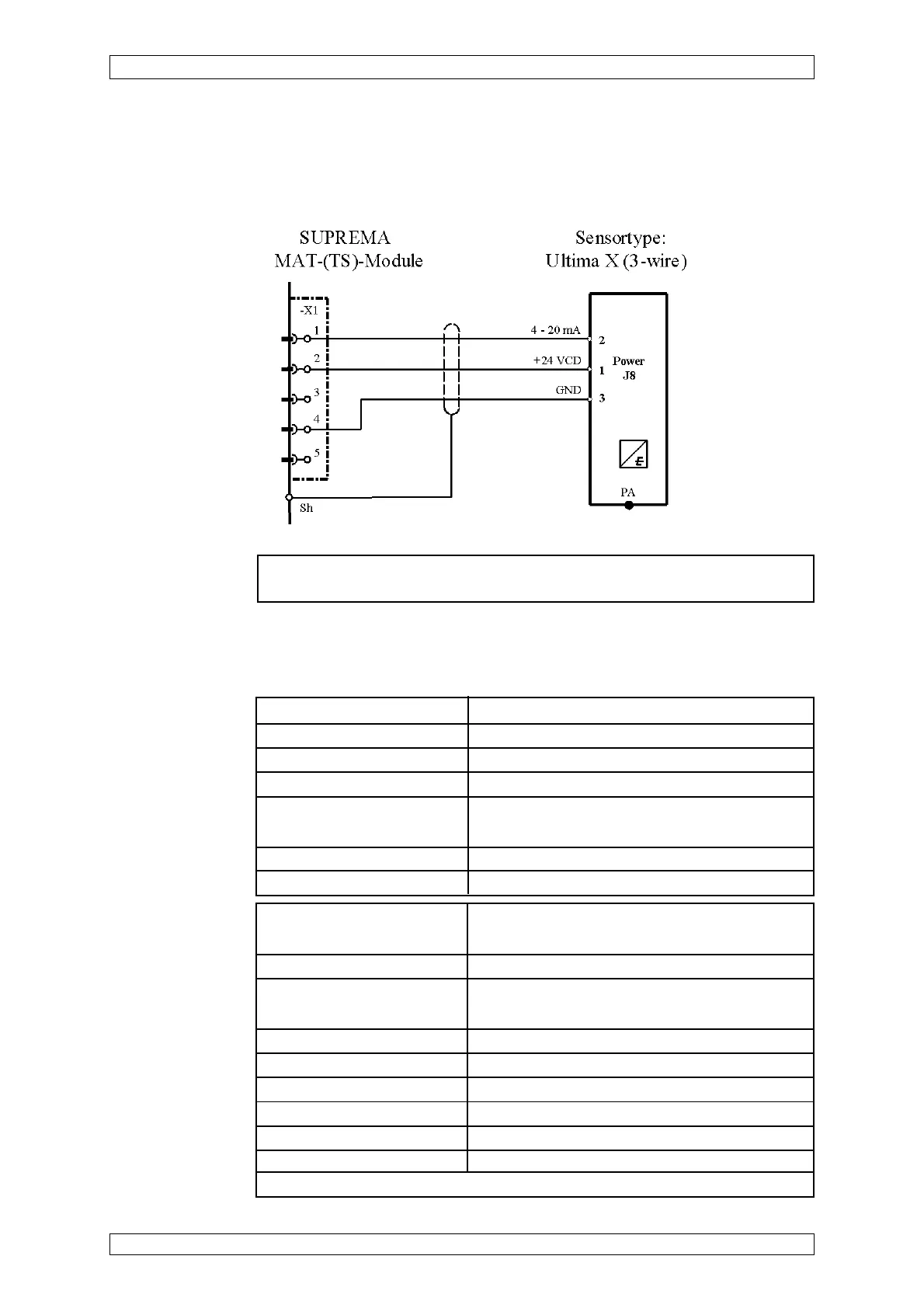

Connection module: MCI 10/MCI 20 (active/3-wire/4 ... 20 mA/current source)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Variant: Tox and O
2
with electrochemical cell
Variant: explosive gases with catalytic sensors
Connection data: Supply voltage 19 ... 30 VDC
Maximum power consumption Electrochemical: 60 mA/Catalytic: 200 mA
Cable type 3-core, 80 % screened
Maximum burden 500 ohms
Maximum cable length Electrochemical: 2000 m/Catalytic: 800 m
(1.5 mm
2
cross section per wire)
Cable diameter 9 ... 17 mm
Cross section per wire allowed 0.75 ... 2.5 mm
2
