12. Sensor Data Sheets
12.3 SUPREMA Sensor Data Sheet D-7100 (3-wire)
Order No.: D0791610

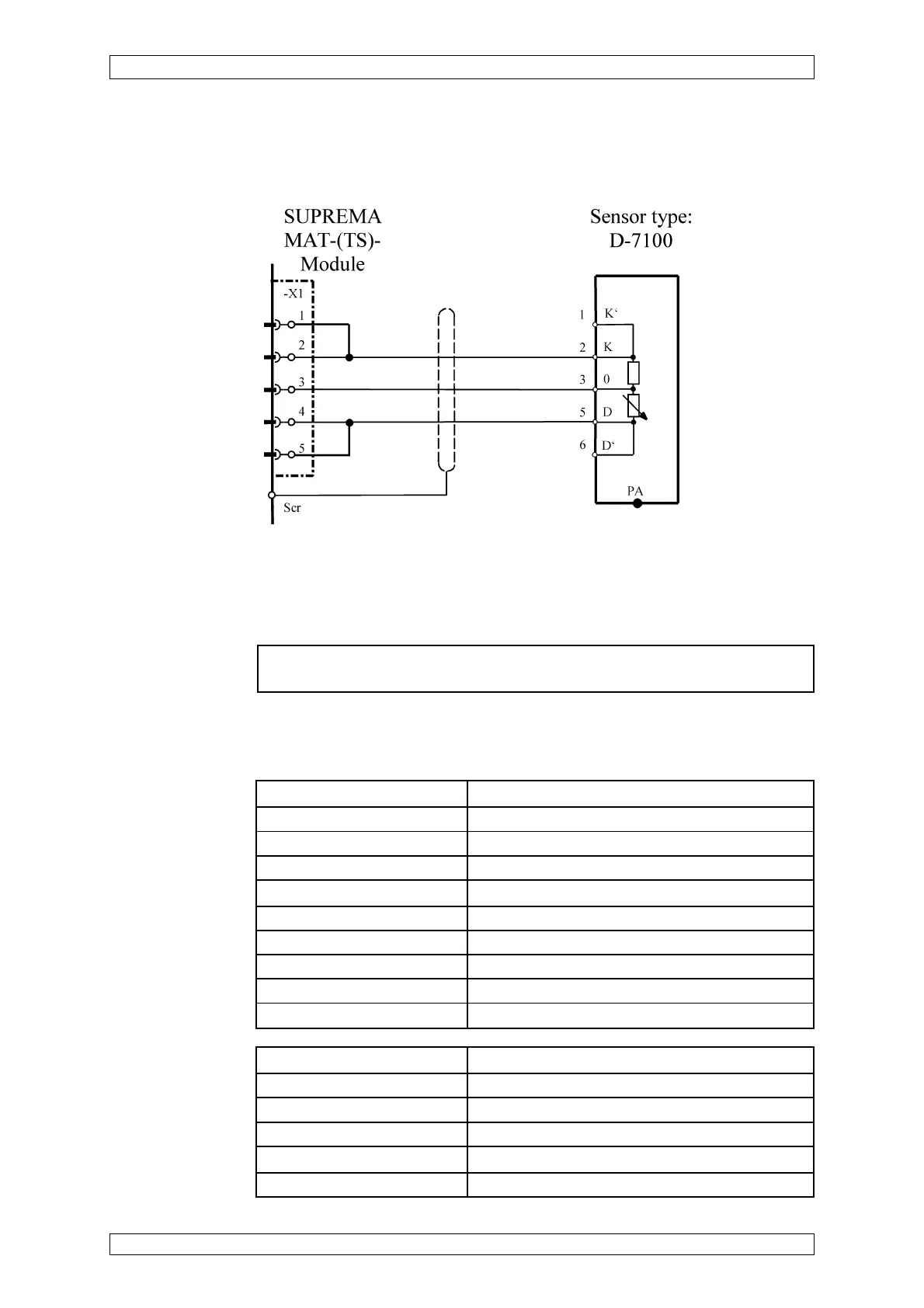

The cable screen is conected at the SUPREMA and the D-7100. The sensor cable must be
installed interruption-free (no terminal boxes, terminal distribution etc.). The bridges -X1/1
-X1/2 and -X1/4 -X1/5 can also be set as solder bridges on the MAT 10 and MAT 10-TS Mo-
dule.
Connection module: MPI 10/WT 10/passive/3-wire/Constant current/Presetting required
Sensor
simulation module: WT 100 (Order No.: 10030264)
Attention! Before connecting measuring head, reduce sensor current to minimum!
Connection data: Bridge current 270 mA/300 mA only for methane
Maximum nominal current 330 mA
Maximum nominal voltage ≤ 2.8 V
Power consumption ≤ 1.0 W (without cable length)
Cable type 3-core, 80 % screened
Maximum loop resistance 36 ohms
Maximum cable length 1200 m (at 1.5 mm
2
cross section per wire)
Cable diameter 7...14 mm, with connection Pg 21 up to 17 mm
Cross section per wire allowed 0.75 ... 1.5 mm
2
Cable inlet PG 13.5 (can be extended to Pg 21)
Conditions for use: Mounting Wall mounting
Ingress protection IP 54/EN 60529
Explosion protection II 2G EEx d e IIC T5/T6
Certificate DMT 98 ATEX E 016 X
Temperature -20 °C to +40 °C (T6) / -20 °C to +55 °C (T5)
Humidity 5 ... 95 % rel. humidity; noncondensing
