REV 0, June 2005Page 324
Operation Manual SUPREMA
12. Sensor Data Sheets

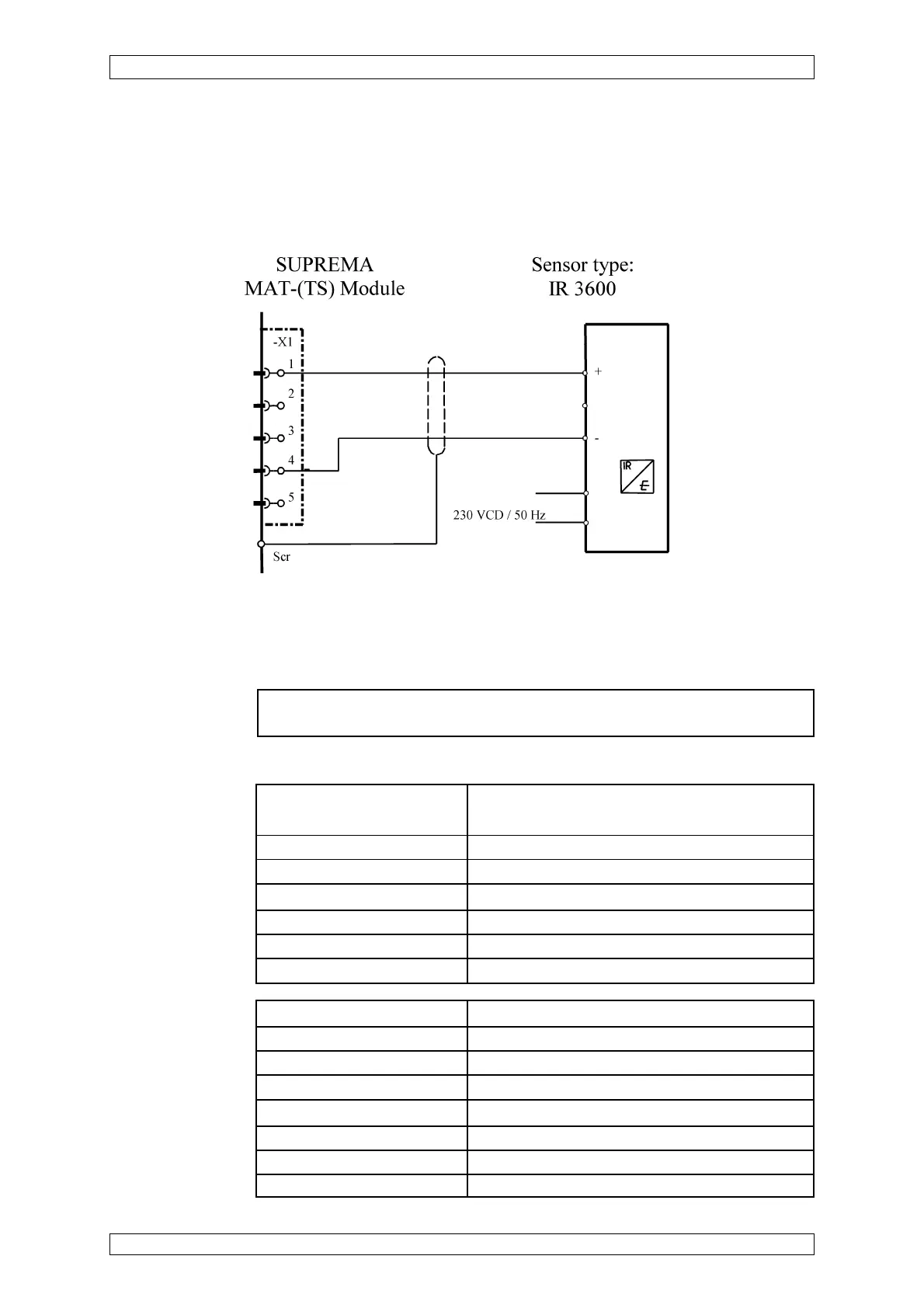

12.38 SUPREMA Sensor Data Sheet IR-3600
Order No.: D0745603
The cable screen is connected at the SUPREMA
Connection module: MCI 10/MCI 20 (active/2-wire/4 ... 20 mA/current supply)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Connection data: Supply voltage Connection 230 VAC/50 Hz/10 VA
with non-fused earthed conductor connection
Cable type signal 2-core, 80 % screened
Maximum burden 500 ohms
Maximum cable length 420 m (at 1.5 mm
2
cross section per wire)
Cable diameter 6 ... 12 mm power supply and output contact cables
Cable diameter 4 ... 8 mm for signal cable
Cross section per wire allowed 1.5 mm
2
Conditions for use: Mounting Wall mounting
Ingress protection IP 54
Explosion protection none
Temperature 0 °C up to +35 °C, up to +45 °C short-time
Humidity 20 ... 95 % rel. humidity; noncondensing
Pressure 950 ... 1100 hPa
Weight approx. 2 kg
Dimensions W x D x H 184 mm x 135 mm x 193 mm
