5.10.3 Printer Port (Printer, RS 232B)
Using this port, the alarm messages can be sent to a printer so that records can be kept.
- Connecting cable: RS 232 extension (do not use a null-modem cable!)
- RS 232 configuration: 19200 kBits/sec., 8 data bits, 1 stop bit, Parity none
The pin assignment of the RS232B port is given in the following table
(see also figure 5-43:
SUB-D pin assignment). Connect the screening to the pin housing.
Socket No. Assignmen
t
1
2T x D
3R x D
4
5GND
6
7
8
9
Table 5-34: RS 232B, Pin Assignment
When a signal event occurs (alarm, failure), the following information is transmitted in a single
line through this port to a printer:

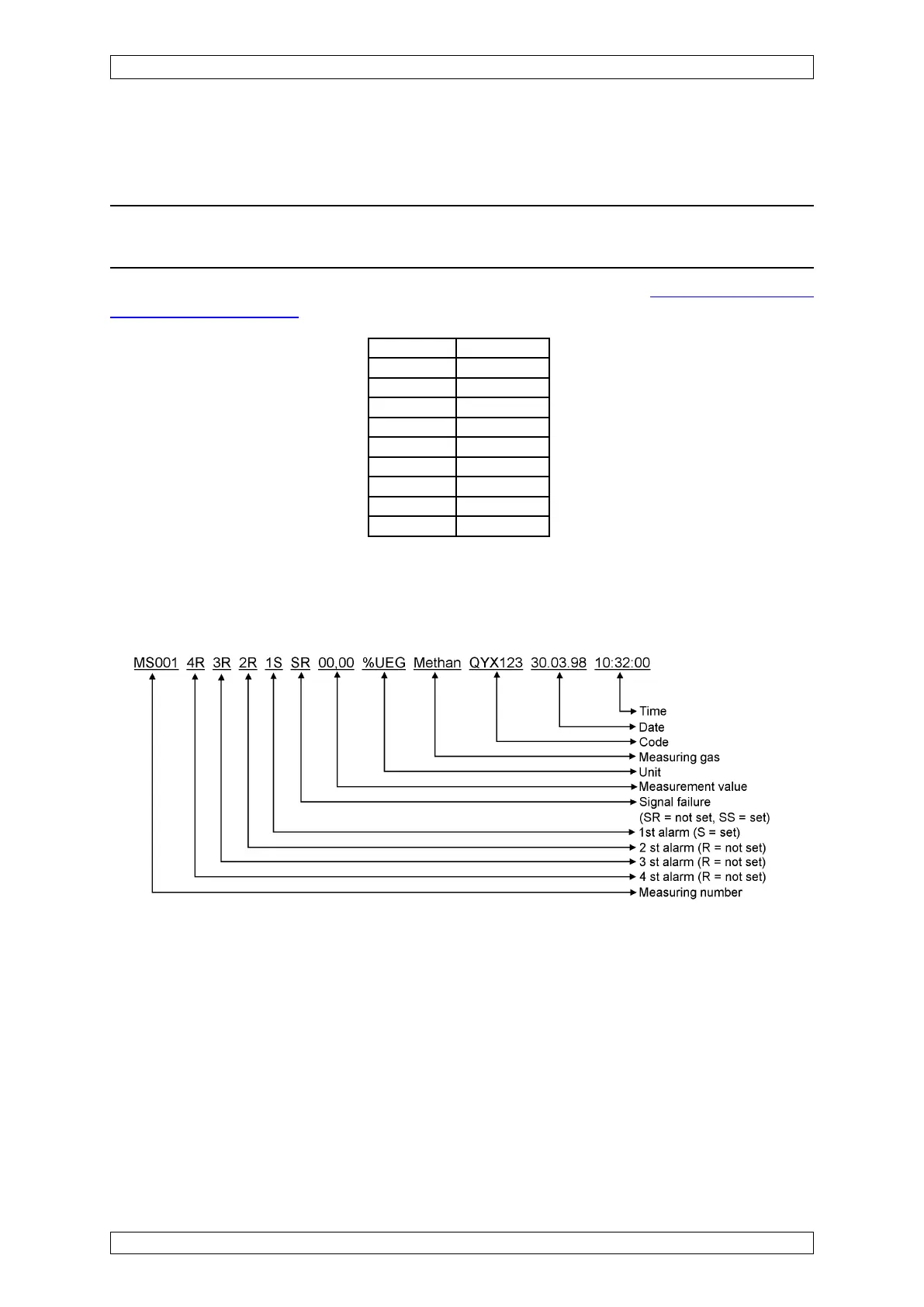

Figure 5-44: Protocol Printer, Data Structure
The results are printed each time the measurement value exceeds or falls below the alarm
threshold, in the event of a system failure, in the event of a successful manual reset or a signal
failure. The current status of the input is printed out in accordance with the data structure
shown in Figure 5-36.
5.10.4 Diagnostics / Service (RS 232C)
This port is intended only for internal system testing. (Output of failure messages when the
system configuration is transferred.)
