Cancel
Field type: Button
Press this button to cancel the settings entered in all three submenus for the selected input.
Clear
Field type: Button
Press this button to delete all of the parameters for the selected input. The input will then return
to the way it was before its first configuration. Certain Fields of the menu are defaulted. The
delete function will not work if the input is being calibrated. If an input is involved in the setting
conditions of a relay output, then these conditions do not change after the delete function is
executed.
“Information” submenu
The “information” submenu contains general data on the selected input.

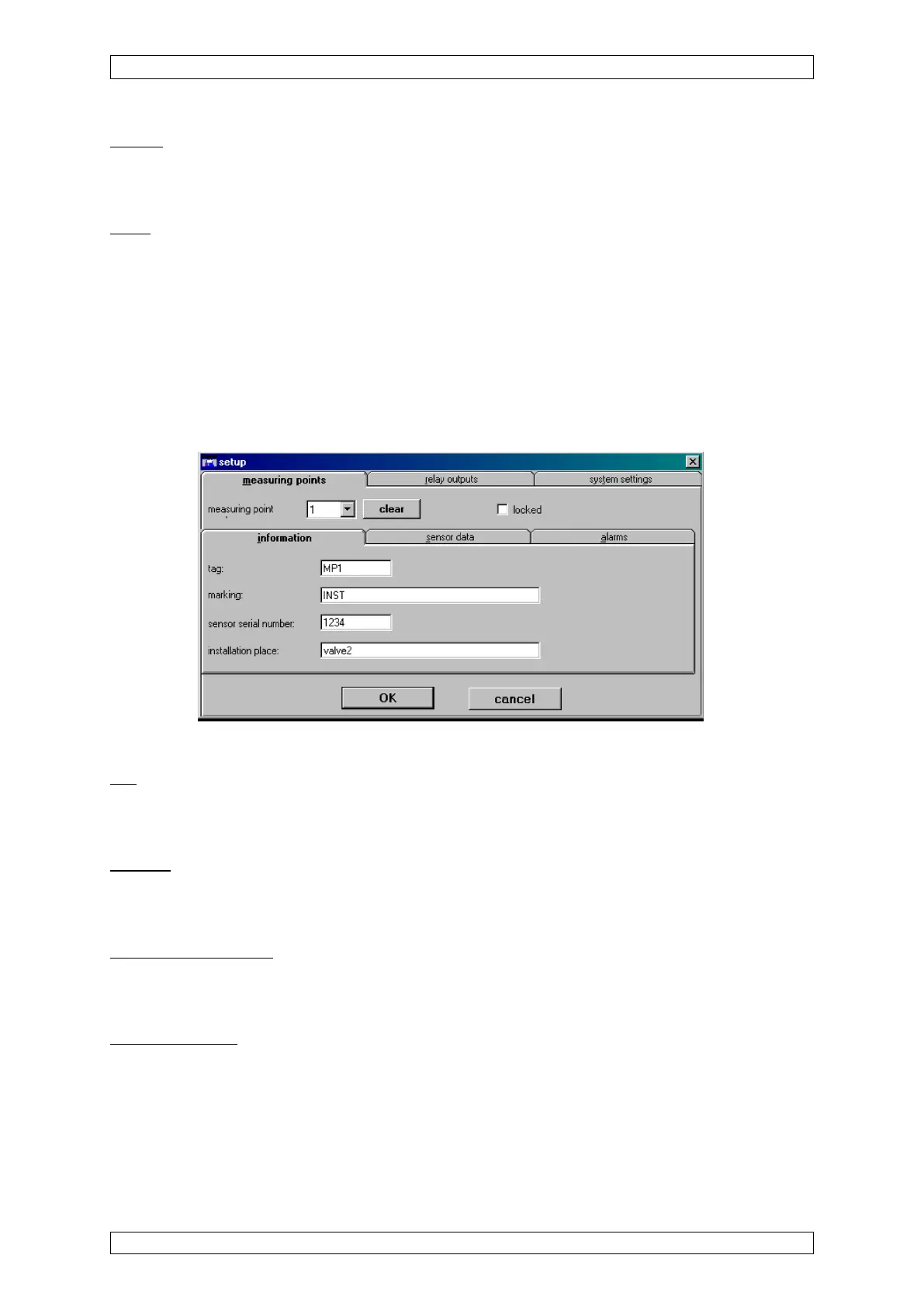

Figure 4-23: “Information” submenu
Tag
Field type: text
Enter a customer-specific designation for the selected input
Marking
Field type: text
Enter a customer-specific description for the selected input
Sensor serial number
Field type: text
Enter the serial number of the sensor for the selected input.
Installation place
Field type: text
Enter a customer-specific description of the installation location of the sensor for the selected
input
“Sensor data” submenu
The “sensor data” submenu contains settings for the sensor at the selected input.
