REV 0, June 2005Page 356
Operation Manual SUPREMA
12. Sensor Data Sheets

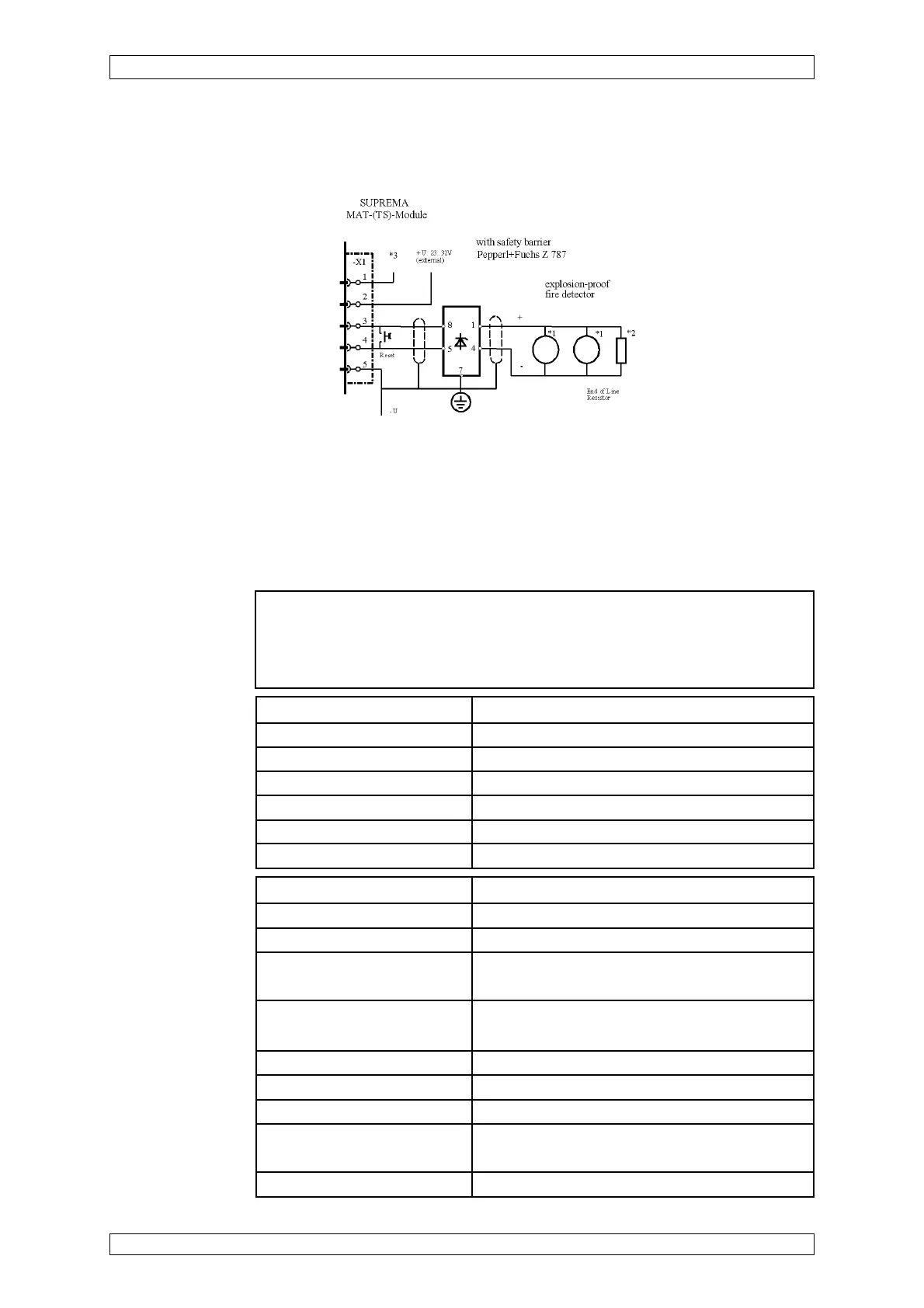

12.54 SUPREMA Sensor Data Sheet Ex-Fire Detector
Apollo Series 60 with Barrier Z 787*
Connection data: Maximum nominal current 42 mA
Maximum nominal voltage 22 V
Power consumption ≤1.5 W (including cable length)
Cable type 2-core, 80 % screened
Maximum loop resistance 50 ohms (cable resistance)
Maximum cable length 2000 m (1.5 mm
2
cross section per wire)
Cross section per wire allowed 0.5 ... 2.5 mm
2
*1 Connect according to manufacturer´s specification for Apollo Series 60:
SERIES 60 INTRINSICALLY SAFE SYSTEM DRAWING Z209883. Carry out installation according to NFPA 72.
Only the mounting support Order No. 45681-207 specified in the data sheets must be used.
For each detection zone circuit, max. 20 fire detectors are allowed.
*2 End of Line Resistor 2K2 / 0.5 W has to be mounted in the last mounting support of the detection zone
circuit or in the portable detector according to the documents specified under *1
*3 Indication of leakage current. In the case of failure, the „OPEN COLLECTOR” transistor is conducting
to terminal 5
Connection module: MFI 10 (Fire Input Module)
Configuration: External power supply, with Zener barrier
(Switch position S101: 1 + 2 = OFF, 3 + 4 = ON)
Set potentiometer P101 to left position.
Conditions for use: Mounting Wall mounting
Ingress protection IP 42 according to DIN 400 50
Explosion protection yes
Certificate BASEEFA EX97D2054
BAS02ATEX1288
Temperature SMOKE detector -20 °C to +60 °C
HEAT detector -20 °C to +105 °C
Humidity 0 ... 95 % rel. humidity; noncondensing
Pressure 950 ... 1100 hPa
Weight approx. 153 g including mounting support
Dimensions Diameter 100 mm x 50 mm including mounting
support
Housing material Plastic
