REV 0, June 2005Page 302
Operation Manual SUPREMA
12. Sensor Data Sheets
12.27 SUPREMA Sensor Data Sheet DF-8401
Order No.: D0745720

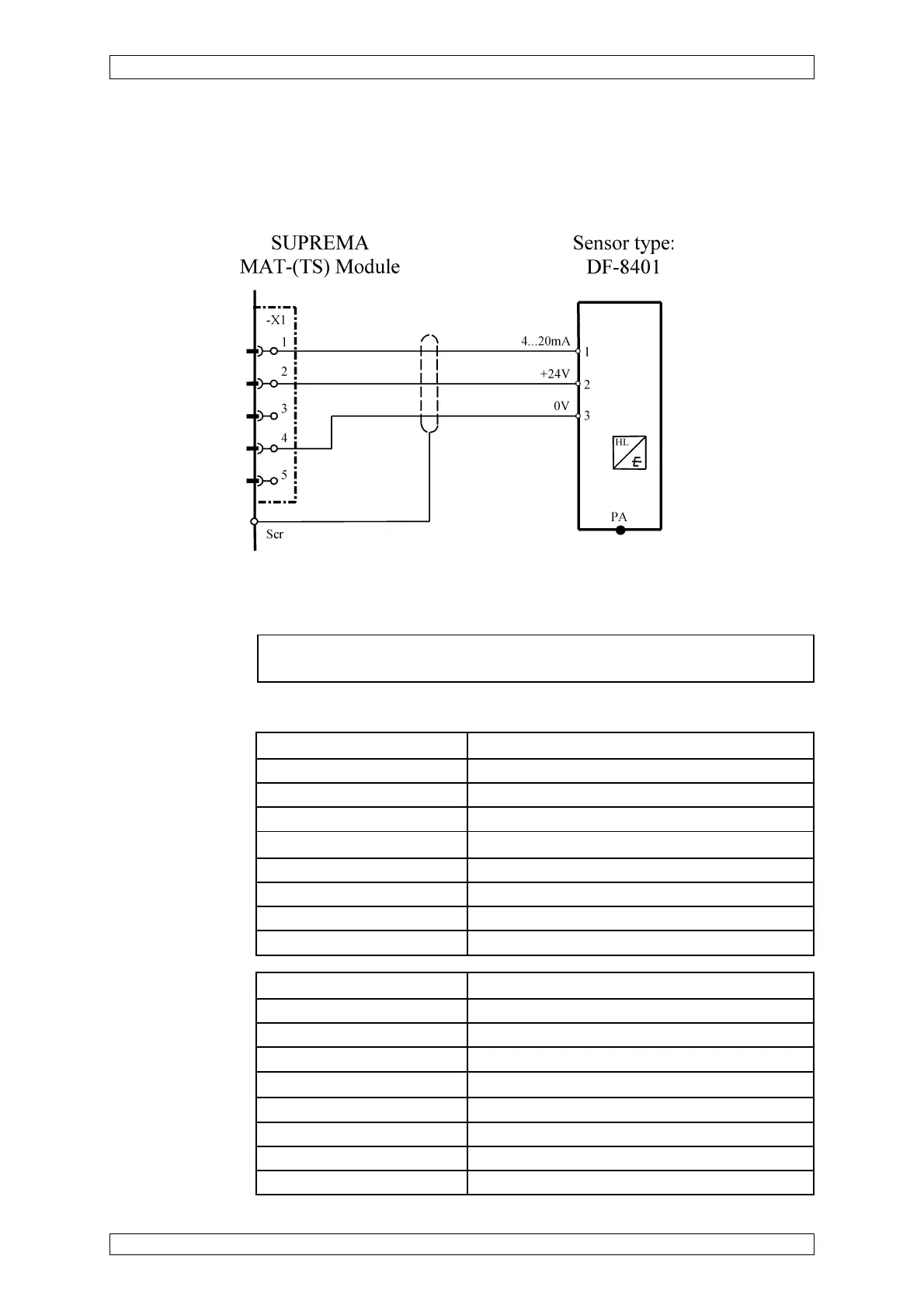

The cable screen is connected at the SUPREMA and the DF-8401.
Connection module: MCI 10/MCI 20 (ac tive/3-wire/4 ... 20 mA non-linear/current supply)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Connection data: Supply voltage 16 ... 32 VDC
Maximum power consumption 200 mA (Switch-on current 400 mA short-term)
Power consumption 5 W (without cable length)
Cable type 3-core, 80 % screened
Maximum burden 400 ohms
Maximum cable length 1000 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 12 mm
Cross section per wire allowed 0.75 ... 2.5 mm
2
Cable inlet PG 13.5
Conditions for use: Mounting Wall mounting
Ingress protection IP 54 according to EN 60529
Explosion protection none
Type test approval none
Temperature -20 °C to +40 °C
Humidity 5 ... 90 % rel. humidity; noncondensing
Pressure 900 ... 1100 hPa
Weight approx. 1.1 kg
Dimensions W x D x H 120 mm x 82 mm x 130 mm
