REV 0, June 2005Page 284
Operation Manual SUPREMA
12. Sensor Data Sheets
12.18 SUPREMA Sensor Data Sheet Series 47K-ST, -PRP (3-wire)
Order No.: according to ordering information

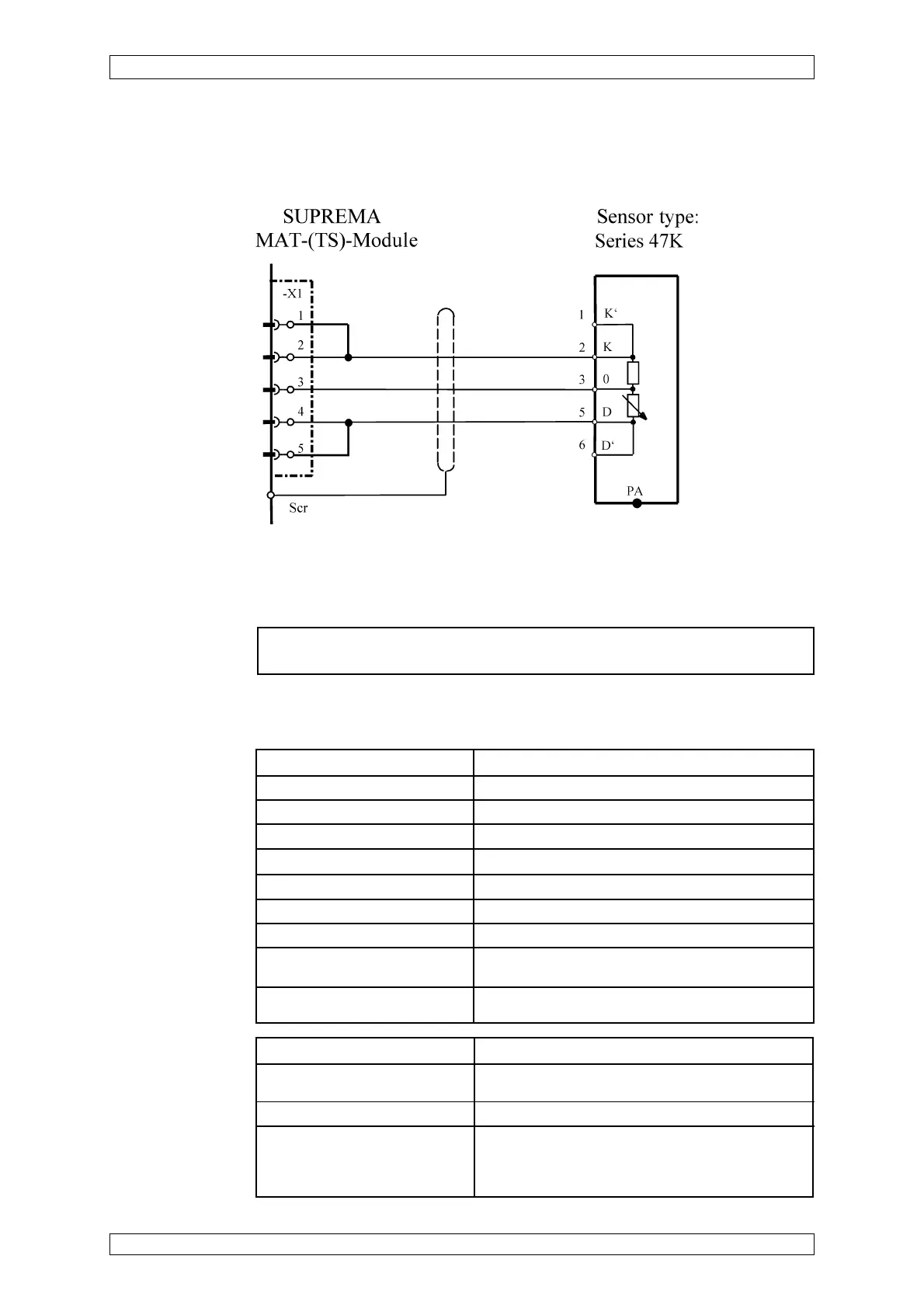

The cable screen is only connected to the SUPREMA.
Alternatively, the bridges -X1/1 -X1/2 and -X1/4 -X1/5 can be set as solder bridges on the
MAT 10-TS module.
Connection module: MPI - WT 100/passive/3-wire/Constant current/Presetting required
Sensor
simulation module: WT (= catalytic combustion), (Order No.: 10030263)
Attention! Before connecting measuring head, reduce sensor current to minimum!
Conditions for use: Mounting Wall mounting
Explosion protection/Sensor II 2G EEx d IIC T4 (-40 °C ... +90 °C) – ST
II 2G EEx d IIC T6 (-40 °C ... +40 °C) – PRP
Certificate/Sensor INERIS 03 ATEX 0208
Terminal box EEx d 2 x 3/4’’ NPT CESI 012 ATEX 105
Dimensions W x D x H 100 x 100 x 100 mm
Weight 400 g
Temperature -40 °C ... +55 °C (T5) / -40 °C ... +40 °C (T6)
Connection data: Bridge current 310 mA
Maximum nominal current 350 mA
Power consumption 1.0 W typical (without cable length)
Cable type 3-core, 80 % screened
Maximum loop resistance 36 ohms
Maximum cable length 1000 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 13.5 mm
Cross section per wire allowed 1.0 ... 2.5 mm
2
Connection box
EEx d 2 x 3/4’’ NPT Order No.: 10051080
Connection box
EEx e 2 x M25 x 1.5 mm Order No.: 10051091
