Operation Manual SUPREMA
5. Installation

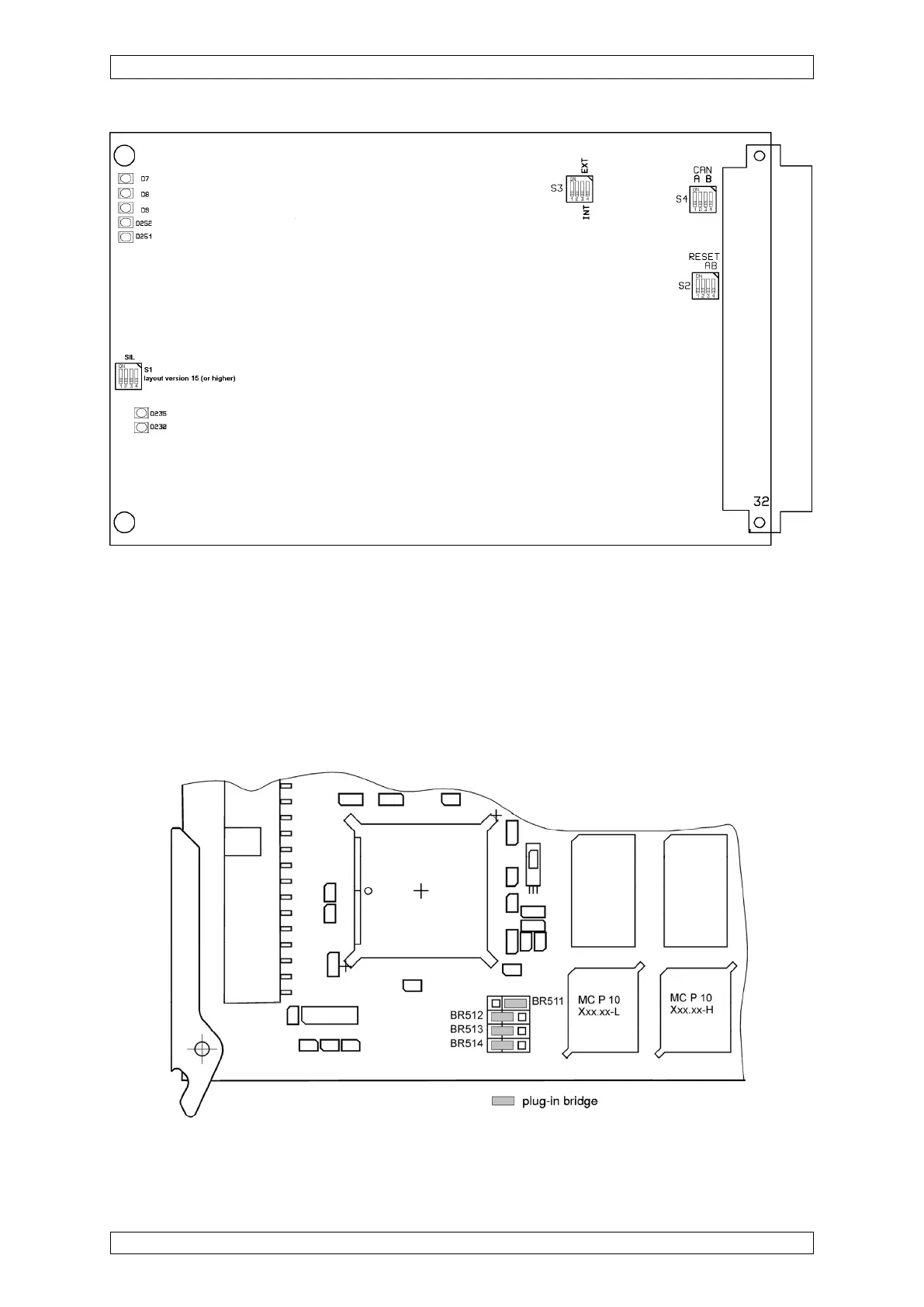

Figure 5-13: MGO module, as from layout version 15
Figure 5-14: MCP module, standard configuration
5.3.15 Configuration of the MCP Module
The MCP module is shipped factory-configured. No provisions are made for changing the
configuration.
Within the scope of the installation and start-up of the system or of the replacement of the MCP
module, however, the bridge placement illustrated in Figure 5-12, MCP module, standard
configuration, must be checked and corrected if necessary.
