MSA SUPREMA - SUPREMA Sensor Data Sheet GD 10

REV 0, June 2005Page 322
Operation Manual SUPREMA
12. Sensor Data Sheets
12.37 SUPREMA Sensor Data Sheet GD 10
Order No.: D0770 731 Standard Methane
D0770 732 Standard Ethene
D0770 733 Standard Propane
D0770 603 Special Calibration

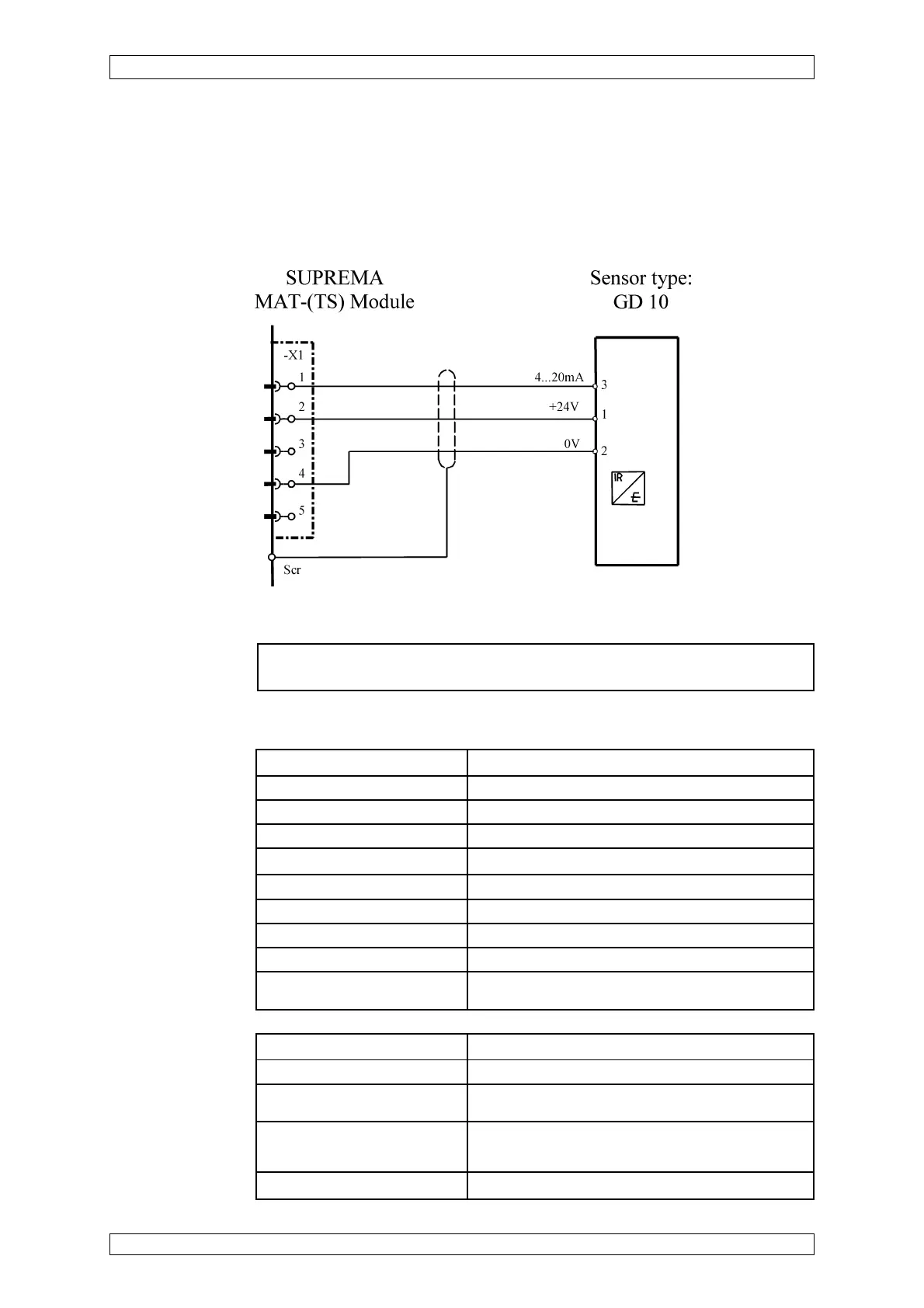

The cable screen is connected at the SUPREMA and the GD-10.
Connection module: MCI 10/MCI 20 (active/3-wire/4 ... 20 mA/current supply)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Conditions for use: Mounting Wall mounting/or by flange
Ingress protection IP 66/IP 67 EN 60529
Explosion protection CENELECE Ex d IIC T6 (EEx e for terminal
connection)
Temperature -25 °C up to +55 °C
(-40 °C up to +70 °C for storage)
Humidity 0 ... 95 % rel. humidity; noncondensing
Connection data: Supply voltage 18 ... 32 VDC
Current consumption approx. 3,5 W (without cable length)
Switch-on current 0,3 A für 0.3 s
Cable type 3-core, 80 % screened
Maximum burden 500 ohms
Maximum cable length 840 m (at 1.5 mm
2
cross section per wire)
Cable diameter 5.0 ... 9.0 mm (for enclosed Ex cable inlet)
Cross section per wire allowed 0.5 ... 1.5 mm
2
Cable inlet Both sides possible/M20 x 1.5
For explosion protection Approved cable inlet and
Blind plug necessary EEx e ( M20 x 1,5)
