REV 0, June 2005Page 258
Operation Manual SUPREMA
12. Sensor Data Sheets

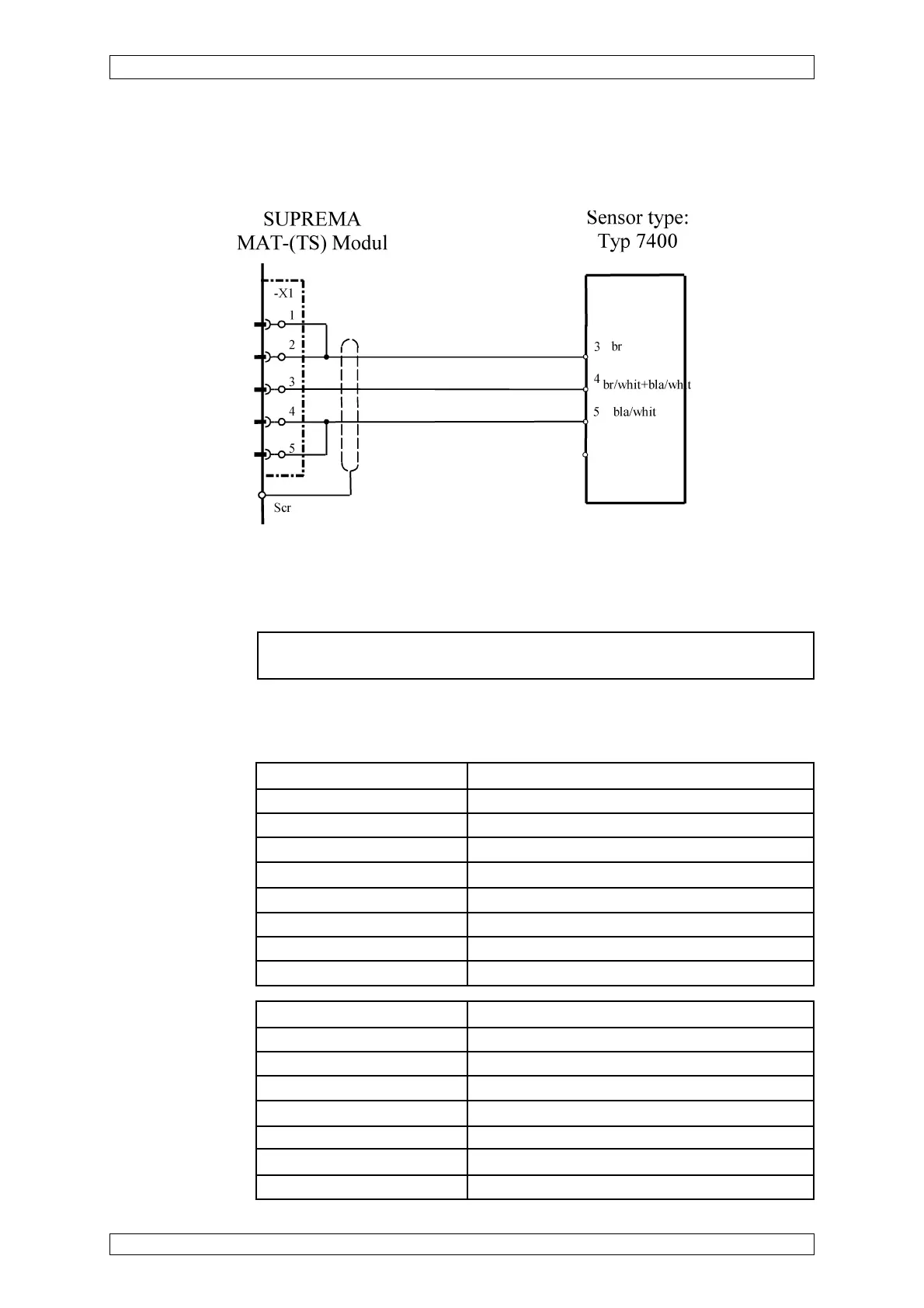

12.5 SUPREMA Sensor Data Sheet D-7400
Order No.: D0714702
The cable screen is only connected to the SUPREMA. Remove 2 x 120 ohms!
Alternatively, the bridges -X1/1 -X1/2 and -X1/4 -X1/5 can be set as solder bridges on the MAT
10 and MAT 10-TS Module.
Connection module: MPI 10/WT 10/passive/3-wire/Constant current/Presetting required
Sensor
simulation module: WT 100 (Order No.: 10030263)
Attention! Before connecting measuring head, reduce sensor current to minimum!
Connection data: Bridge current 310 mA for all measuring components
Maximum power consumption 350 mA
Power consumption ≤ 1 W (without cable length)
Cable type 3-core, 80 % screened
Maximum loop resistance 8 ohms loop resistance
Maximum cable length 300 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 12 mm
Cross section per wire allowed 0.75 ... 1.5 mm
2
Cable inlet PG 13.5
Conditions for use: Mounting Wall mounting
Ingress protection IP 54 (Housing) EN 60529
Explosion protection none
Temperature 0 °C up to +40 °C
Humidity 5 ... 95 % rel. humidity; noncondensing
Pressure 950 ... 1100 hPa
Weight approx. 0.26 kg
Dimensions W x D x H 94 mm x 58 mm x 135 mm
