5. Installation
Slots 4–5 :
Slots 4 and 5 are reserved exclusively for the MDA module. In systems without redundancy,
slot 4 must be used for the MDA module (see section 10 Redundant Systems).
Slots 6–13:
Slots 6–13 can be filled with MAI, MAO, or MGO modules, as desired.
Slots 14–15:
Slots 14 and 15 may be filled only with MAO or MGO modules.
Rear:
Connection site 1:
The first connection site is reserved exclusively for the MST module. The racks are shipped
with the MST module installed as standard equipment, so that only Positions 1–10 are available
for configuration.
Positions 1–10:
Positions 1-10 can be filled with either MAT-, MUT-modules, as desired.
Positions 9:
The MRO-8-module can only be installed at Position 9.
Note: The MRO-8 module must be installed in POS 9 only! It is impossible to be
use more than one MRO-8 module in one rack.

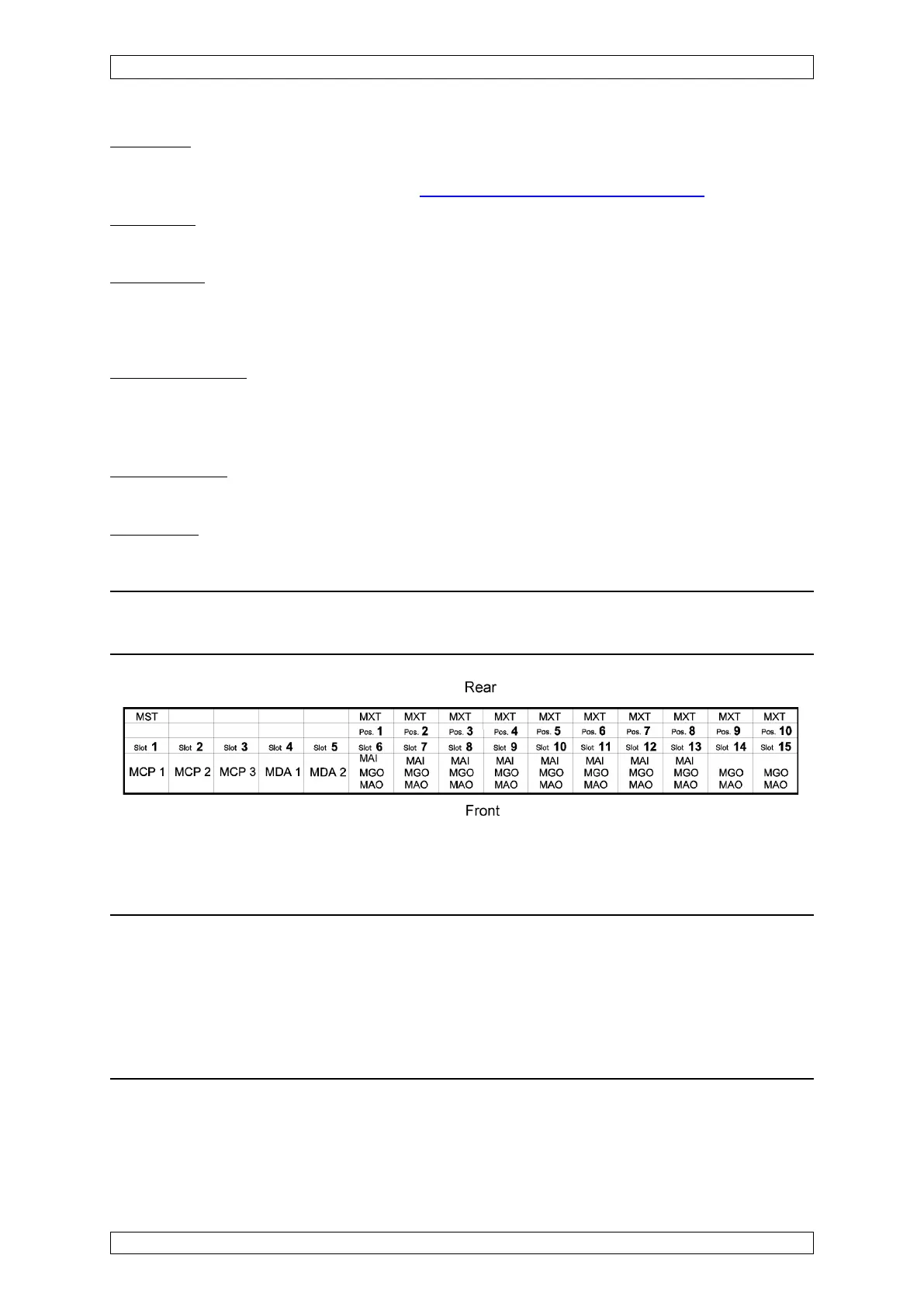

Figure 5-22: Slots and Positions on the rack
Slots in the Rack:
Slots 1–3: slots for MCP modules only
Slots 4–5: slots for MDA modules only
Slots 6–13: slots for INPUT/OUTPUT modules
Slots 14–15: slots for OUTPUT modules only
INPUT: MAI module (with MPI/MCI modules)
OUTPUT: MGO-module
MAO-module
