REV 0, June 2005Page 328
Operation Manual SUPREMA
12. Sensor Data Sheets

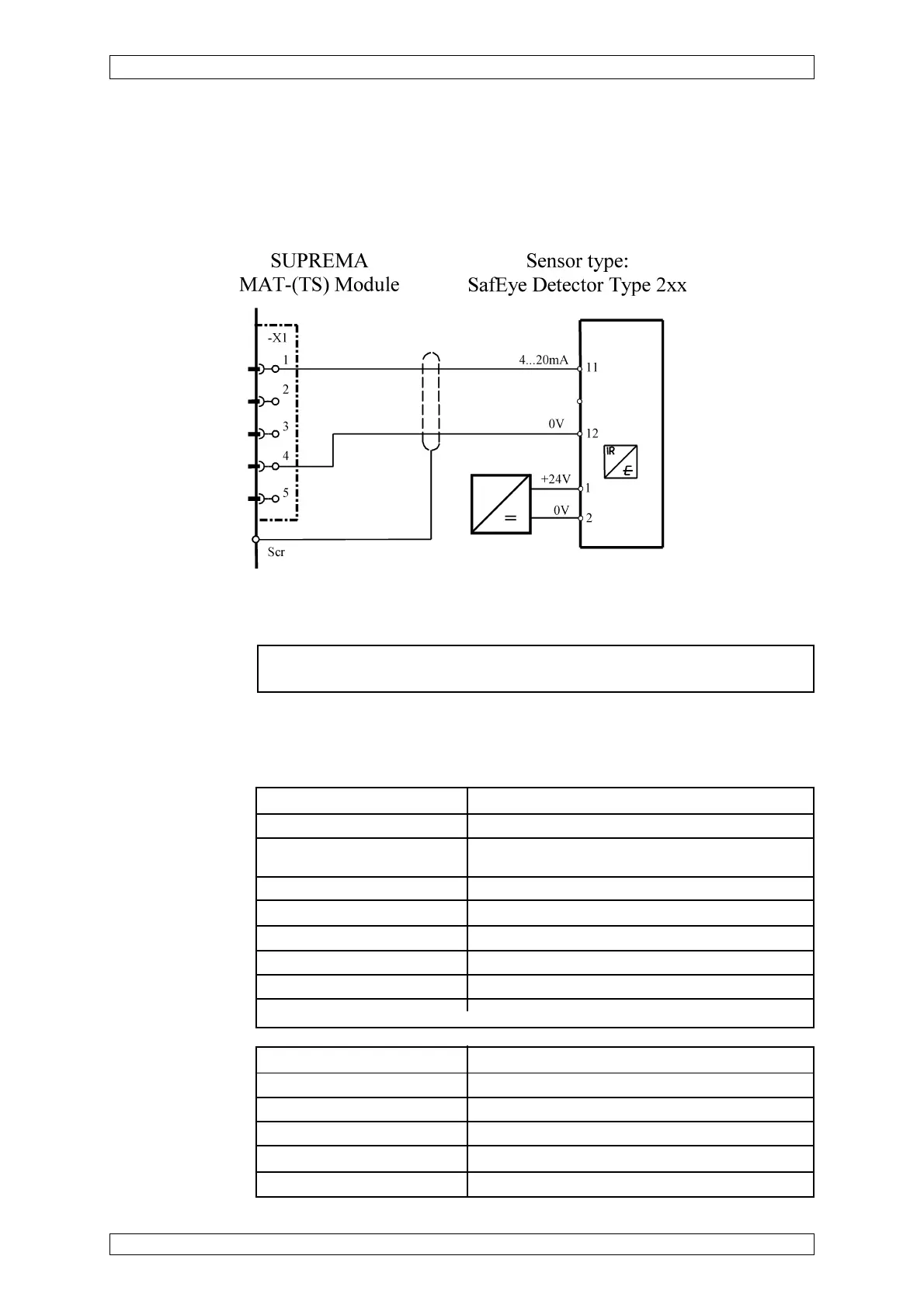

12.40 SUPREMA Sensor Data Sheet SafEye Type 2xx
Order No.: D070xxx (xxx-according to type key)
Connection module: MCI 10/MCI 20 (active/2-wire/4 ... 20 mA linear/current source)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Attention! Voltage supply for detector and luminous source from 2 separate power packs.
Conditions for use: Mounting Wall mounting above adjustment bracket
Ingress protection IP 67 according to NEMA 250 type 6
Explosion protection EEx d IIB T6
SIRA Certificate No. Ex 96C1067 A
Temperature -20 °C up to +55 °C
Humidity 5 ... 95 % rel. humidity; noncondensing
Connection data: Supply voltage 18 ... 32 VDC (2 x external)
Current consumption detector 150 mA/200 mA Peak
Current consumption luminous 100 mA/220 mA Peak
source
Cable type 3-core, 80 % screened
Maximum burden 600 ohms
Maximum cable length 420 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 14 mm
Cross section per wire allowed 0.5 ... 2.5 mm
2
Cable inlet approved EExd M20 x 1.5 with reduction 25 x 1.5
