REV 0, June 2005 Page 229
Operation Manual SUPREMA
10. Redundant Systems
Channel Number
In this column, the numbers of possible physical outputs (0–519) are listed. Up to 13 MGO
cards each with 40 outputs (13 x 40 = 520) can be connected to the system (Rack 1 to Rack 8).
The outputs 1–512 (Numbering 0–511 in the listing) can be used for configuration.
Digital Output Number
The “logical” numbers are entered which are selected as “Digital Output” on the parameter
setting. The output numbers may be assigned freely. . We recommend the standard assignment
(see figure 10-10 Measuring Point Map Listing) to avoid problems on configuration.
The number of digital outputs depends on the components of the MGO-10 modules and must
always correspond (40 outputs/MGO max.).
Example:
SUPREMA System with a MGO-10 module has to be configured with 24 outputs.
View of the “digital output map” listing:

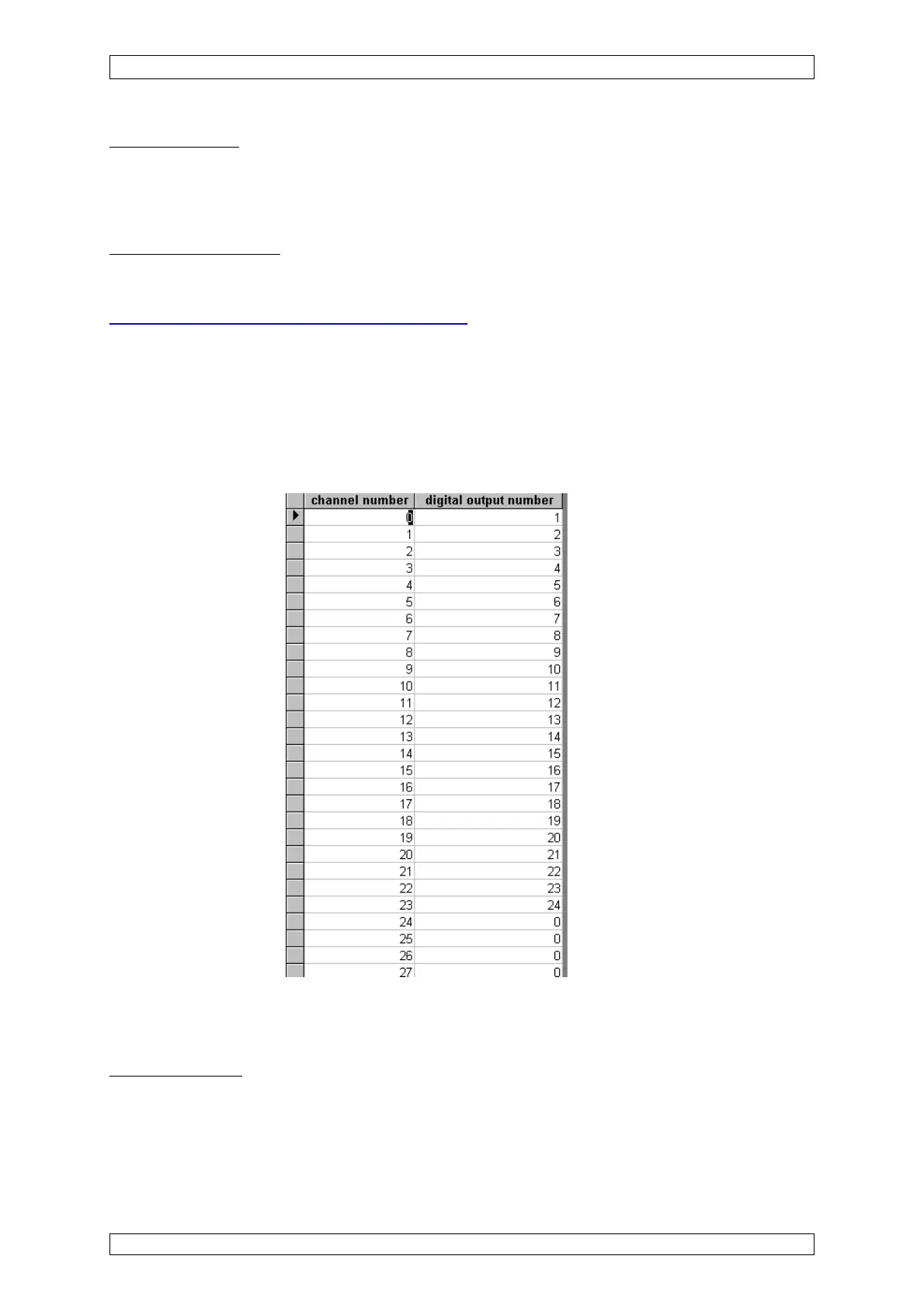

Figure 10-9: “Digital output map” listing
All digital outputs which are not needed are set to “0” (Zero) in the field “Digital Output Number”.
Measuring Points
By means of the listing, the measuring points are configured. A maximum of 256 measuring
points max. can be configured, which can be distributed over 8 racks.
