REV 0, June 2005 Page 217
Operation Manual SUPREMA
9. Connection of Peripherals
9.3.2 SUPREMA-Gateway CAN/Profibus DP
(Not contained in EC type test approval DMT 03 ATEX G 003 X)
The SUPREMA Gateway Profibus DP can very easily be integrated to the available, SPS-
controlled system. The gateway is equipped for rail mounting and supplied with a 24 V dc
voltage. For the connection of the CAN interface, a Combicon plug connector is available. The
9-pin plug connector X100 is provided for connection of the Profibus interface.
The following 2 manuals for installation, parametrization and operation are enclosed with the
gateway:
• CAN-CBM-DP PROFIBUS-DP/CAN-Gateway Hardware Manual
• CAN-CBM-DP PROFIBUS-DP/CAN-Gateway with SUPREMA CANopen Firmware
Software Manual
Connection to the SUPREMA:

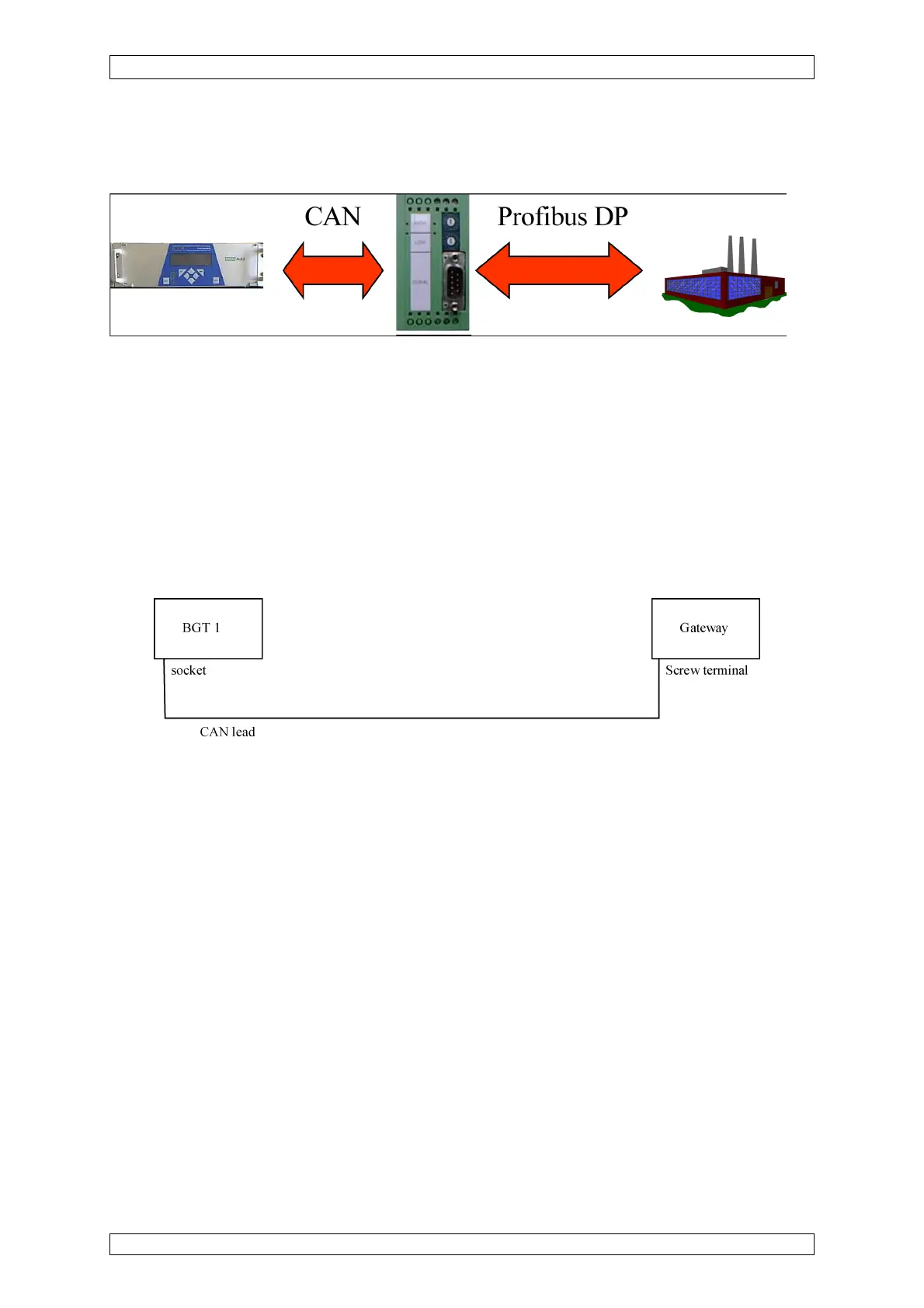

Figure 9-6: Connection Suprema Gateway CAN/Profibus DP
The CAN terminating resistor of BGT 1 has not been set. At the CAN Bus terminal( from 2 to 4),
a 120 Ohm resistor is connected together with the CAN cable.
