4. Operation of the System

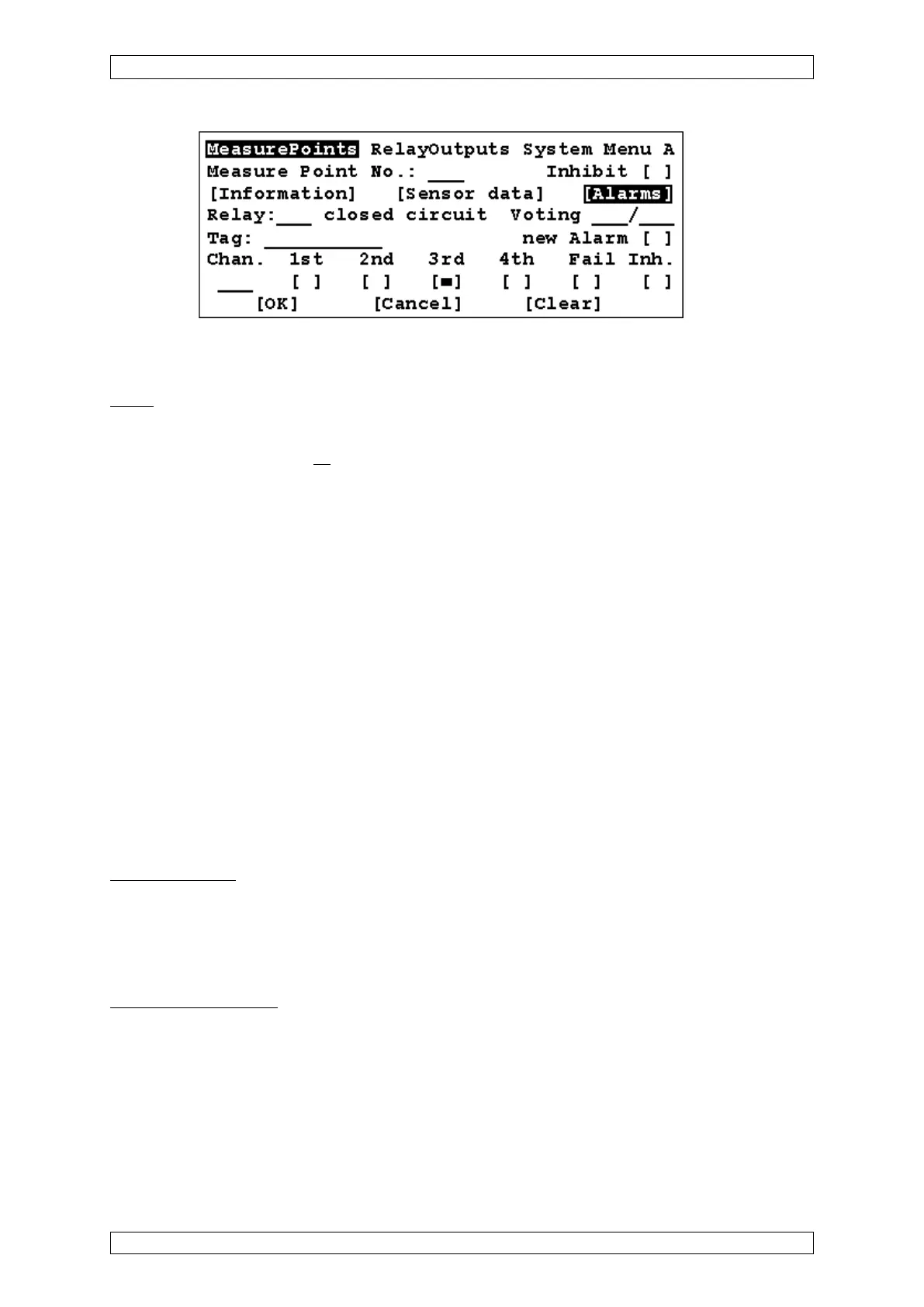

Figure 4-10: Relay output assignment menu
The functions of the individual menu elements are described below:
Relay
Field type: Selection
This field contains a list of
all available relay outputs. After an output number is selected, the
rest of the menu is filled, if settings have already been entered for that output. It also contains
inputs which longer physically exist, but whose parameters are still stored in the system. Those
inputs are only removed from selection when the user deletes them in the Measure Point
menu.
After an output number is selected, the rest of the menu is filled, if settings have already been
entered for that output. If an output number is selected that has not been configured before,
the settings from the last displayed output remain and are used as the preliminary settings for
the new output. This makes it easy to copy the settings from one output to another. If an output
is displayed that has not yet been configured, default values are used as the preliminary settings
for the input of certain fields.
This input field can be accessed without a key switch or password if an output is entered for
which parameters have already been set. If a number is entered that has not been used before,
authorisation by means of password or key switch is required.
When first opened, the field contains the relay output that was last selected in the Measure
Point menu.
All parameter changes using the menu elements described below apply to the relay
output selected in this field.
Chan. (Channel)
Field type: Selection
The field contains a list of all configured inputs. When opened, it contains the input that was
last selected in the Measure Point menu. The following conditions, which must be met in order
to set the relay output selected in the “Relay” field, apply to the input displayed here.
Al. 1-4 (1st-4th Alarm)
Field type: Check box
In this field, select the alarms that will cause the selected relay output to trigger, for the input
selected in the “Channel” field. When this submenu is opened, the cursor is on the alarm that
was displayed in the Measure Point menu before this submenu was selected.
