REV 0, June 2005Page 282
Operation Manual SUPREMA
12. Sensor Data Sheets

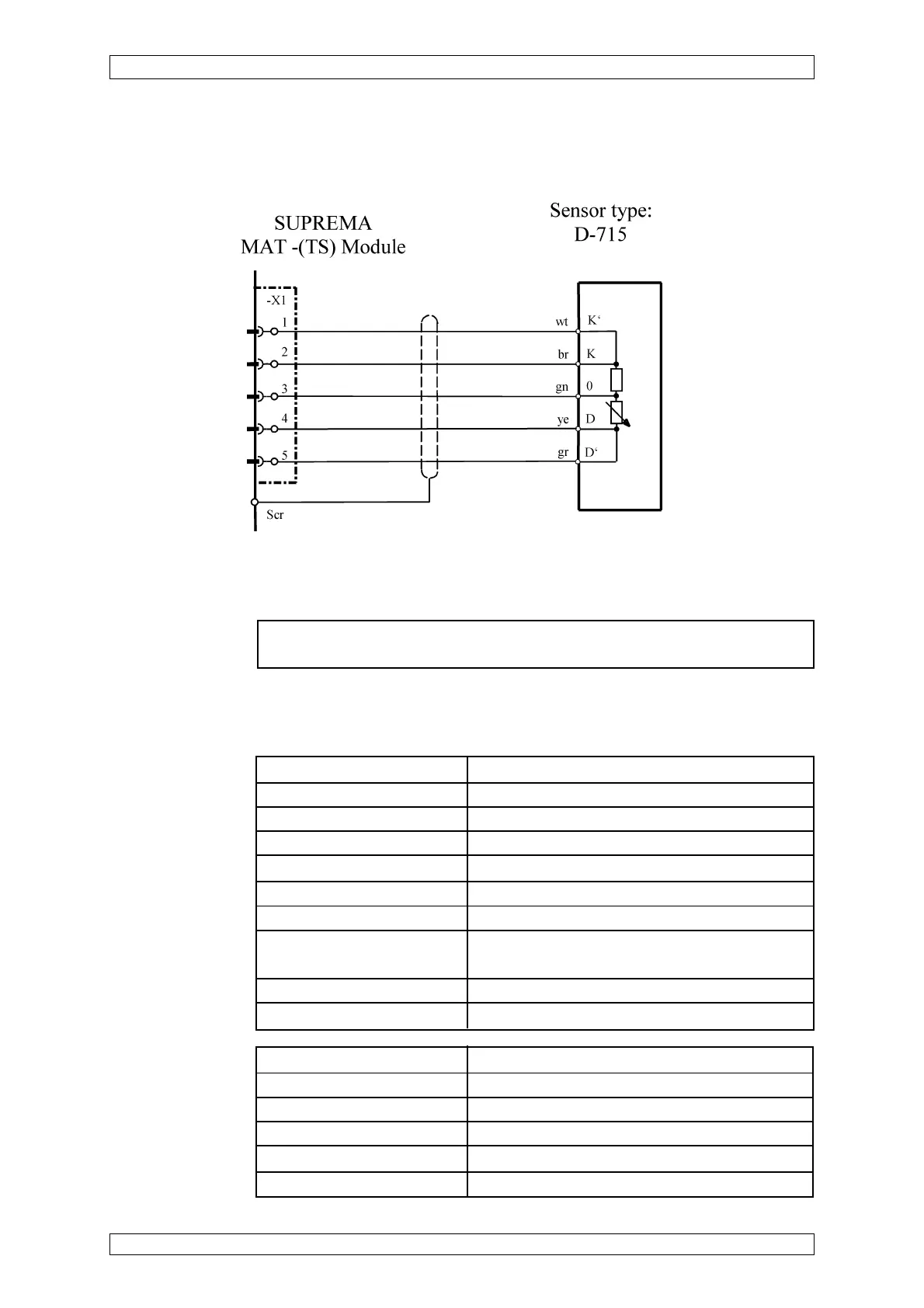

12.17 SUPREMA Sensor Data Sheet D-715 K (5-wire)
Order No.: D0715601
The cable screen is only connected to the SUPREMA.
Connection module: MPI 10/WT 100/passive/5-wire/Constant current/Presetting required
Sensor
simulation module: WT 100 (Order No.: 10030263)
Attention! Before connecting measuring head, reduce sensor current to minimum!
Connection data: Bridge current 270 mA/300 mA only for methane
Maximum nominal current 330 mA
Maximum nominal voltage ≤ 3.0 V
Power consumption ≤ 1.0 W (without cable length)
Cable type 5-core, 80 % screened
Maximum loop resistance 36 ohms (Cable resistance)
Maximum cable length 1500 m (at 1.5 mm
2
cross section per wire)
Cable diameter 7 ... 13.5 mm 9 mm (1.5 m connection line,
5-core potted)
Cross section per wire allowed 0.75 ... 1.5 mm
2
Junction box E Ex e (Order No.: D0715205)
Conditions for use: Mounting Wall mounting
Ingress protection IP 42 according to DIN 400 50
Explosion protection II 2G EEx d II C T6
Certificate PTB 01 ATEX 1152 X
Temperature -40 °C to +60 °C
Humidity 0 ... 95 % rel. humidity; noncondensing
