REV 0, June 2005Page 318
Operation Manual SUPREMA
12. Sensor Data Sheets

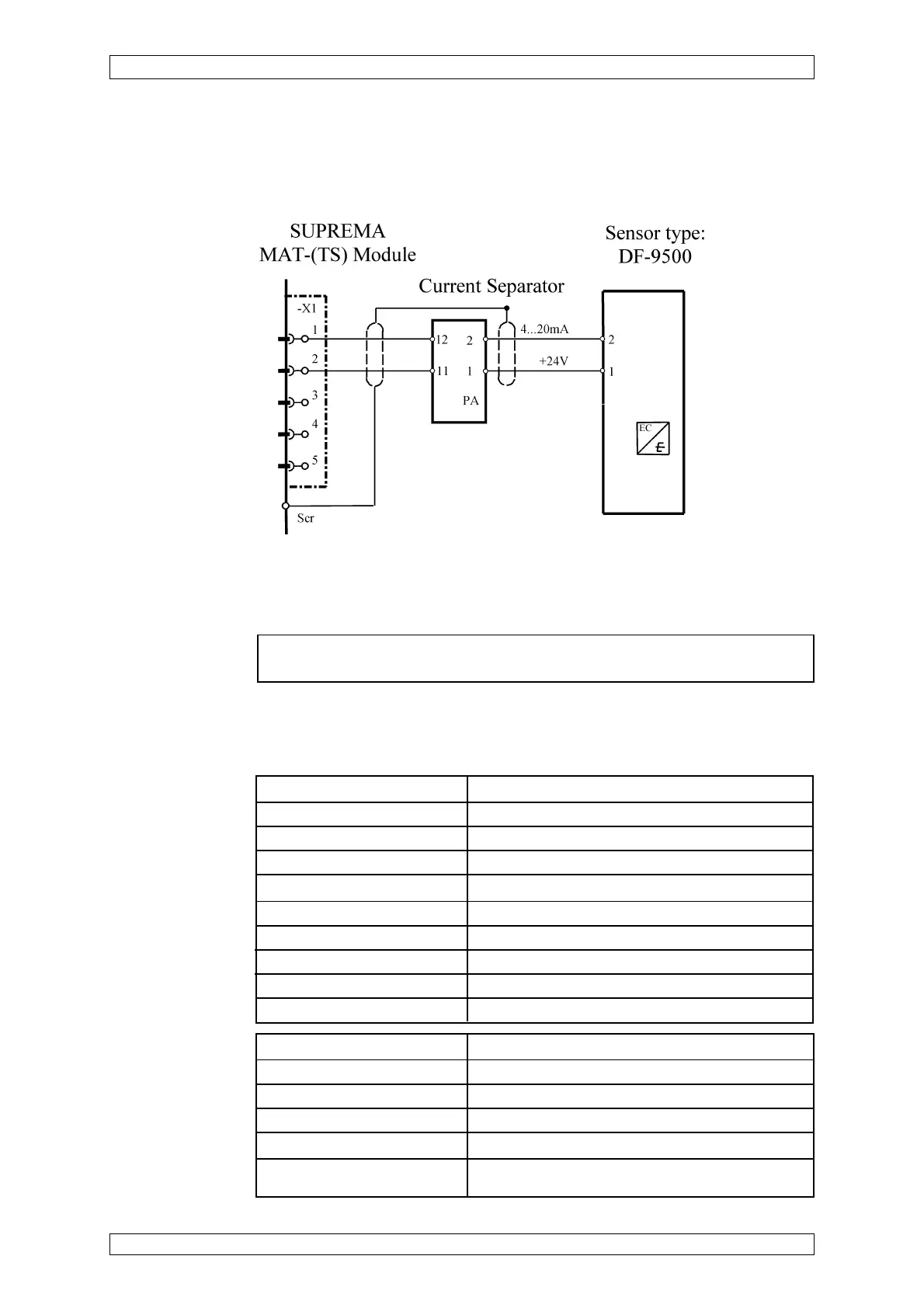

12.35 SUPREMA Sensor Data Sheet DF-9500 Tr (Current
Separator)
Order No.: D0742xxx (xxx-according to the list of components)
Screening: The screen is connected to the screen rail in the rack and also at the measuring head.
Near the current separator, the screen can be connected to terminals.
Attention! Do not connect the screen to potential equalisation terminals. Screen connections
must be kept separate from potential equialisation.
Connection module: MCI 10/MCI 20 (active/2-wire/4 ... 20 mA linear/sink)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Current separator
approved: KFDO-CS_Ex1.51P (Order No.: 10029683)
Conditions for use: Mounting Wall mounting
Ingress protection IP 42 (Sensor) IP 63 (Housing)
Explosion protection II 2G EEx ia IIC T6
Certificate DMT 01 ATEX E 152 X
Temperature min. 20 °C to +40 °C (depending on component)
Humidity min. 20 ... 80 % rel. humidity (depending on
component)
Connection data: Supply voltage 14 ... 28 VDC
Supply current 4 ... 30 mA
Maximum power consumption 50 mA
Power consumption 0.4 W (without cable length)
Cable type 2-core, 80 % screened
Maximum burden 500 ohms with current separator
Maximum cable length 2000 m (at 1.5 mm
2
cross section per wire)
Cable diameter 9 ... 13.5 mm
Cross section per wire allowed 0.5 ... 2.5 mm
2
Cable inlet PG 13.5
