Operation Manual SUPREMA
12. Sensor Data Sheets
12.36 SUPREMA Sensor Data Sheet FlameGard*
Order No.: D 0770772

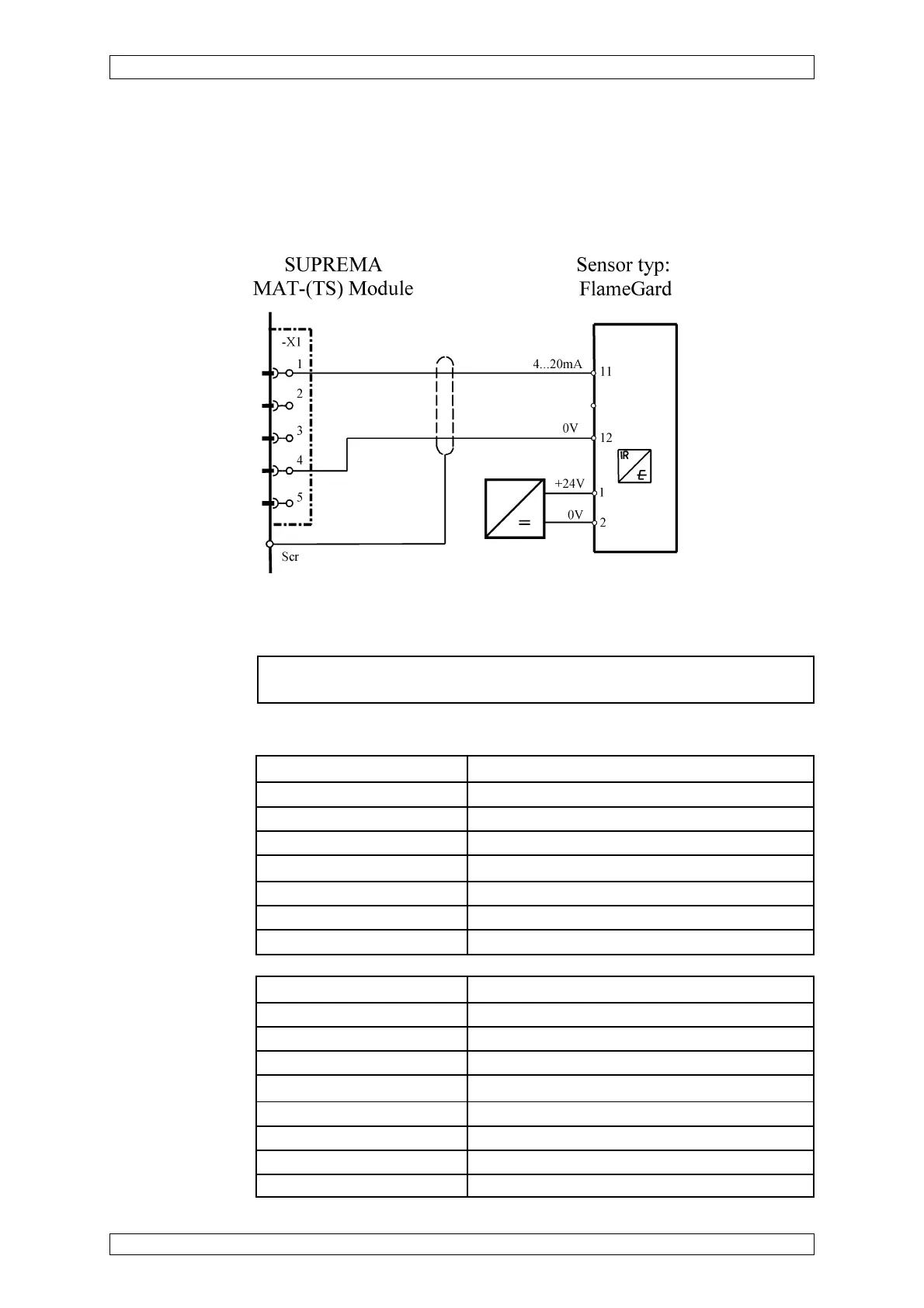

Connection module: MCI 10/MCI 20 (active/3-wire/4 ... 20 mA/current supply)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Connection data: Supply voltage 18 ... 32 VDC via power pack
Detector power consumption 150 mA /200 mA Peak
Cable type 2-core, 80 % screened (Signal line)
Maximum burden 600 ohms
Maximum cable length 420 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 14 mm
Cross section per wire allowed 0.5 ... 2.5 mm
2
Cable inlet approved EExd M20 x 1.5 with reduction 25 x 1.5
Conditions for use: Mounting Wall mounting above adjustment bracket
Ingress protection IP 67 according to NEMA 250 type 6
Explosion protection EEx d IIB T6
SIRA Certificate No. Ex 96C1067 A
Temperature -20 °C up to +55 °C
Humidity 5 ... 95 % rel. humidity; noncondensing
Pressure 950 ... 1100 hPa
Weight approx. 3.5 kg
Dimensions W x D x H 132 mm x 120 mm x 132 mm
