REV 0, June 2005Page 332
Operation Manual SUPREMA
12. Sensor Data Sheets

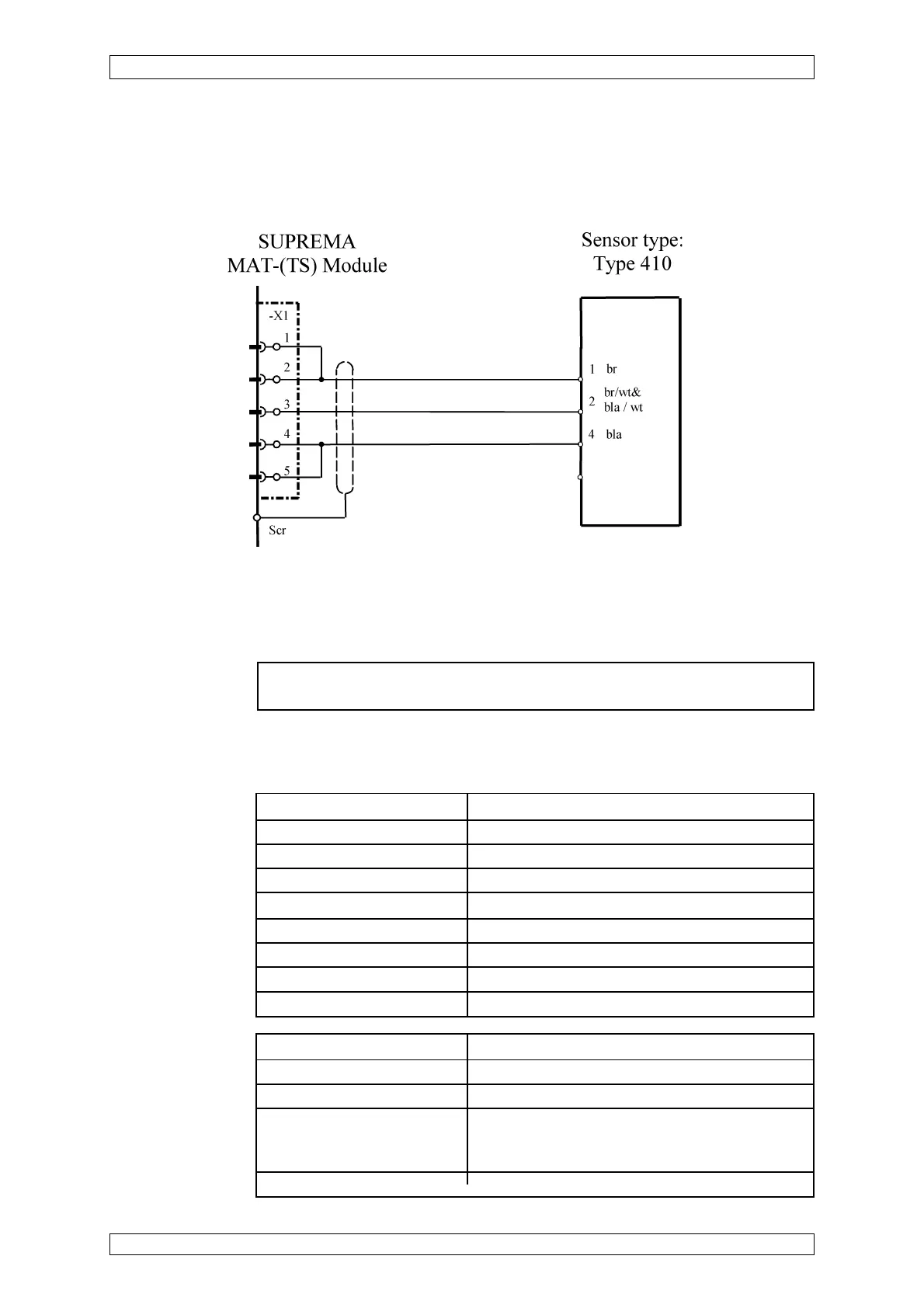

12.42 SUPREMA Sensor Data Sheet Type 410 WT (3-wire)
Order No.: 10000135 (Alu) M25
10000137 (V2A) M20
The cable screen is only connected to the SUPREMA.
Perhaps remove 2 x 120 ohms!
Alternatively, the bridges -X1/1 -X1/2 and -X1/4 -X1/5 can be set as solder bridges on the MAT
10 or MAT 10-TS Module.
Connection module: MPI 10/WT 100/passive/3-wire/Constant current/Presetting required
Sensor
simulation module: WT 100 (Order No.: 10030264)
Attention! Before connecting measuring head, reduce sensor current to minimum!
Connection data: Bridge current 310 mA for all measuring components
Maximum power consumption 350 mA
Power consumption 1 W (without cable length)
Cable type 3-core, 80 % screened
Maximum loop resistance 8 ohms loop resistance
Maximum cable length 300 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 12 mm
Cross section per wire allowed 0.75 ... 2.5 mm
2
Cable inlet Ex-M25 / M20
Conditions for use: Mounting Wall mounting
Ingress protection IP 54 according to EN 60529
Explosion protection EXs IIC T6
Temperature -25 °C up to +55 °C (-20 °C up to +40 °C in the
explosion range)
(-25 °C ... +55 °C for storage)
Humidity 5 ... 95 % rel. humidity; noncondensing
