REV 0, June 2005Page 312
Operation Manual SUPREMA
12. Sensor Data Sheets
12.32 SUPREMA Sensor Data Sheet DF-9200
Order No.: D0756 xxx (xxx-according to the list of components)

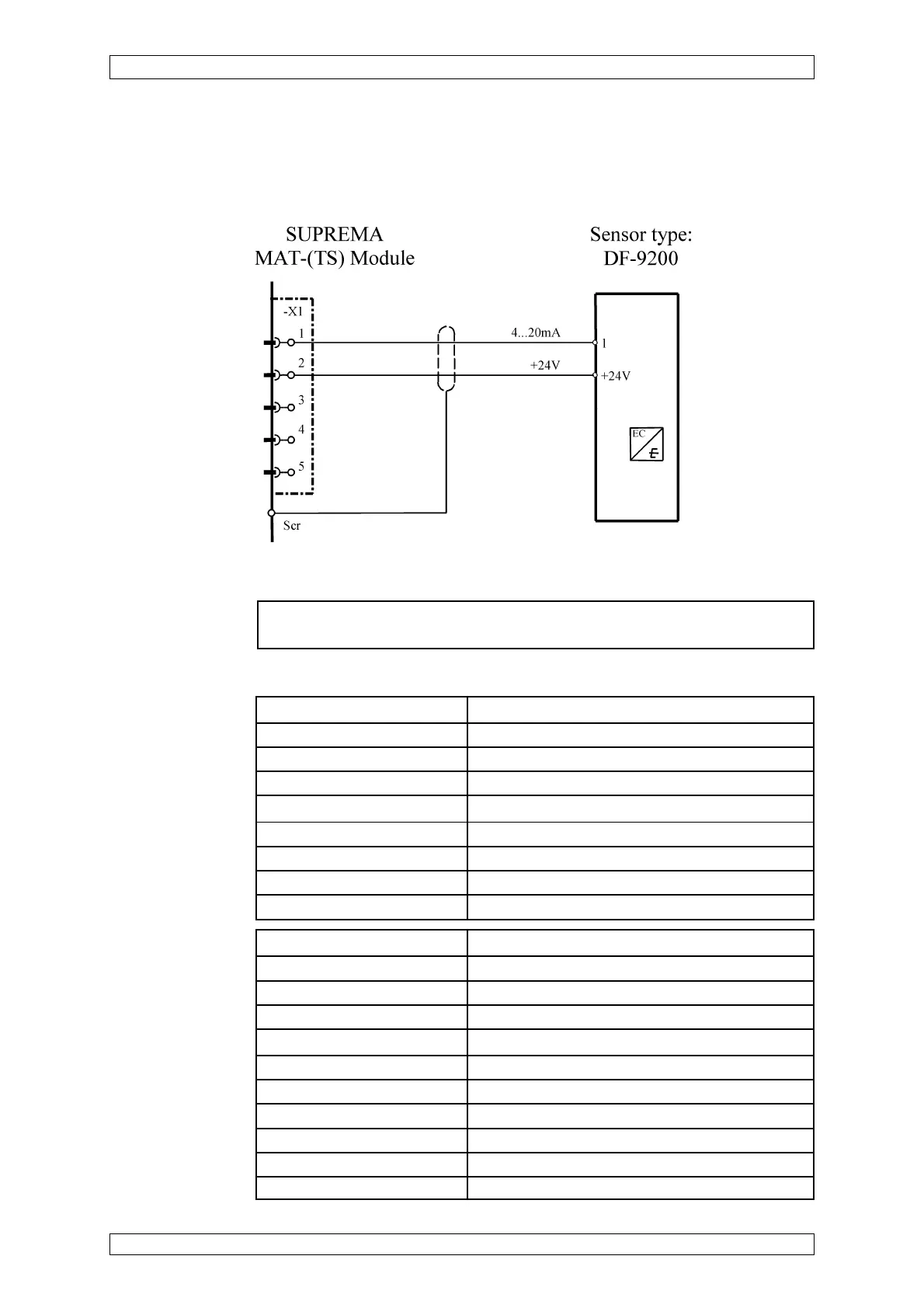

The cable screen is connected at the SUPREMA and the DF-9200.
Connection module: MCI 10/MCI 20 (active/2-wire/4 ... 20 mA linear)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Connection data: Supply voltage 10 ... 30 VDC
Maximum power consumption 40 mA
Cable type 2-core, 80 % screened
Power consumption 1 W (without cable length)
Maximum burden 500 ohms
Maximum cable length 2000 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 14 mm (16 mm special design)
Cross section per wire allowed 0.5 ... 2.5 mm
2
Cable inlet Cable gland Pg 13.5 mm
Conditions for use: Mounting Wall mounting
Ingress protection IP 42
Explosion protection none
Certificate none
Temperature min -10 to -40 °C (depending on component)
Humidity 5 ... 95 % rel. humidity; noncondensing
Pressure 950 ... 1100 hPa
Weight approx. 0.65 kg
Housing material Stainless steel (CrNi)
Dimensions W x D x H 100 mm x 95 mm x 165 mm
Case material Plate of High-grade steel
