12.26 SUPREMA Sensor Data Sheet DF-8250
Order No.: D0756662

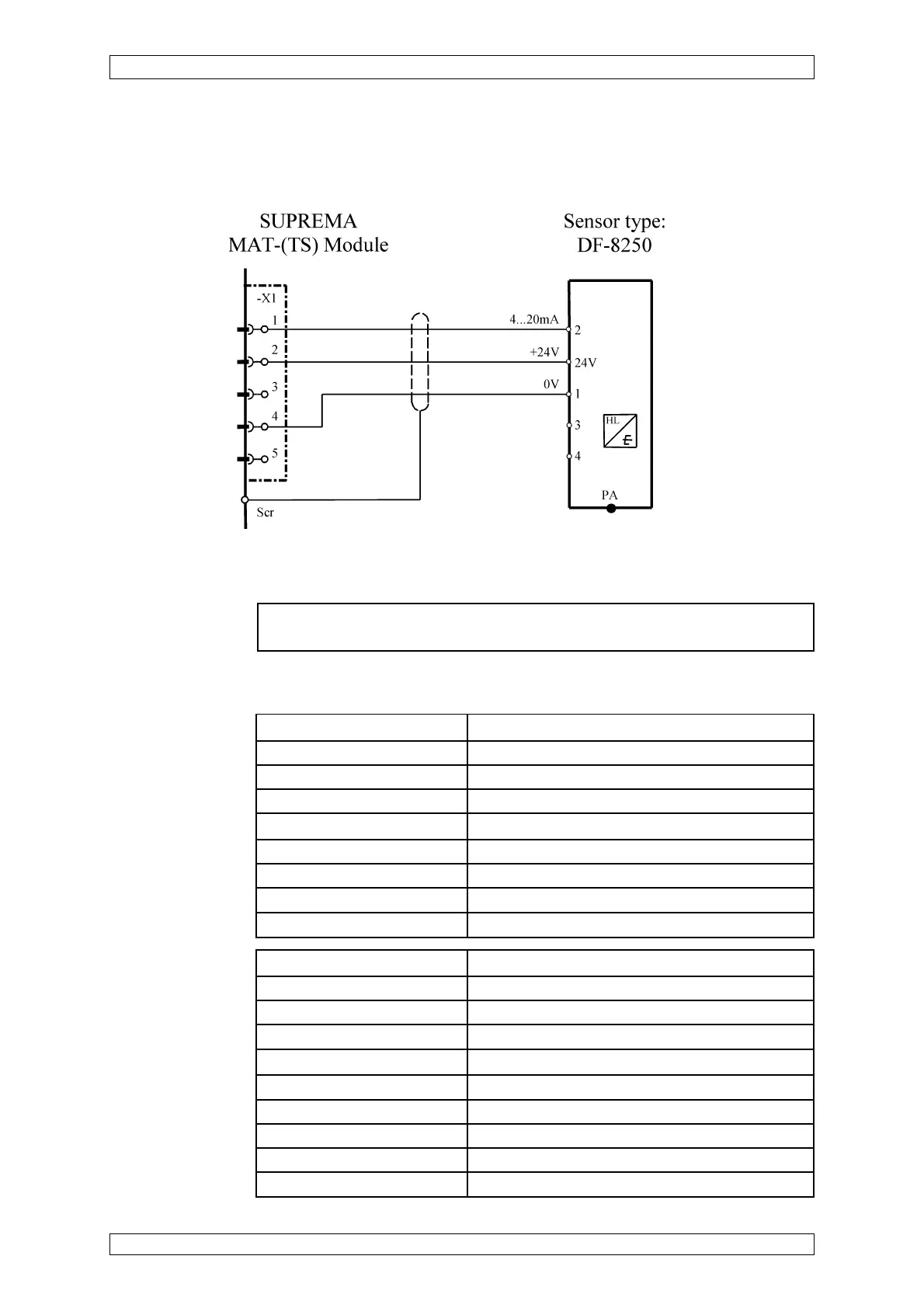

The cable screen is connected at the SUPREMA and the DF-8250.
Connection module: MCI 10/MCI 20 (active/3-wire/4 ... 20 mA/current supply)
Sensor
simulation module: HL (Order No.: 10030264)
Connection data: Supply voltage 13 ... 30 VDC
Maximum power consumption 50 mA
Power consumption 1.5 W (without cable length)
Cable type 3-core, 80 % screened
Maximum burden 200 ohms
Maximum cable length 1000 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 13.5 mm
Cross section per wire allowed 0.5 ... 1.5 mm
2
spring terminals
Cable inlet Cable gland PG 13.5 mm
Conditions for use: Mounting Wall mounting
Ingress protection IP 42/EN 60529
Explosion protection no
Type test approval none
Temperature -20 °C to +40 °C
Humidity 10 up to 90 % rel. humidity
Pressure 950 ... 1100 hPa
Weight approx. 0.65 kg
Dimensions W x D x H 100 mm x 95 mm x 165 mm
Housing material Stainless steel plate
