12.7 SUPREMA Sensor Data Sheet D-7600 (5-wire)
Order No.: D0715618
The cable screen is only connected to the SUPREMA.

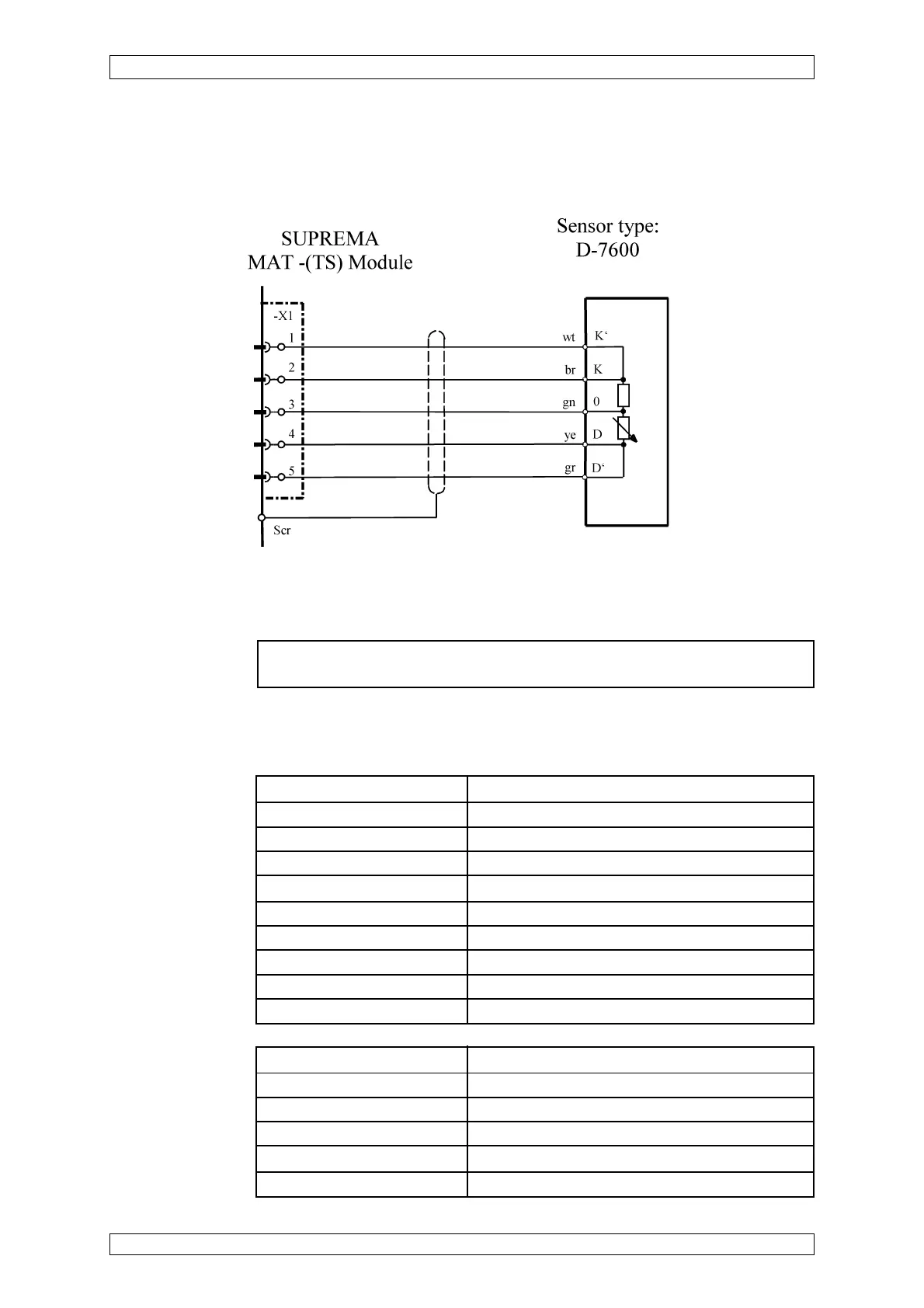

Connection module: MPI 10/WT 100/passive/5-wire/Constant current/Presetting required
Sensor
simulation module: WT 100 (Order No.: 10030263)
Attention! Before connecting measuring head, reduce sensor current to minimum!
Connection data: Bridge current 270 mA/300 mA only for methane
Maximum nominal current 350 mA
Maximum nominal voltage ≤ 3 V
Power consumption ≤ 1 W (without cable length)
Cable type 5-core, 80 % screened
Maximum loop resistance 36 ohms
Maximum cable length 1500 m (at 1.5 mm
2
cross section per wire)
Cable diameter 7...13,5 mm
Cross section per wire allowed 0.75 ... 1.5 mm
2
Cable inlet Pg 13.5
Conditions for use: Mounting Wall mounting
Ingress protection IP 42 according to DIN 400 50
Explosion protection (Ex) sd 3n G5
Certificate III B/E -24529
Temperature -20 °C to +40 °C
Humidity 0 ... 95 % rel. humidity; noncondensing
