Operation Manual SUPREMA
12. Sensor Data Sheets

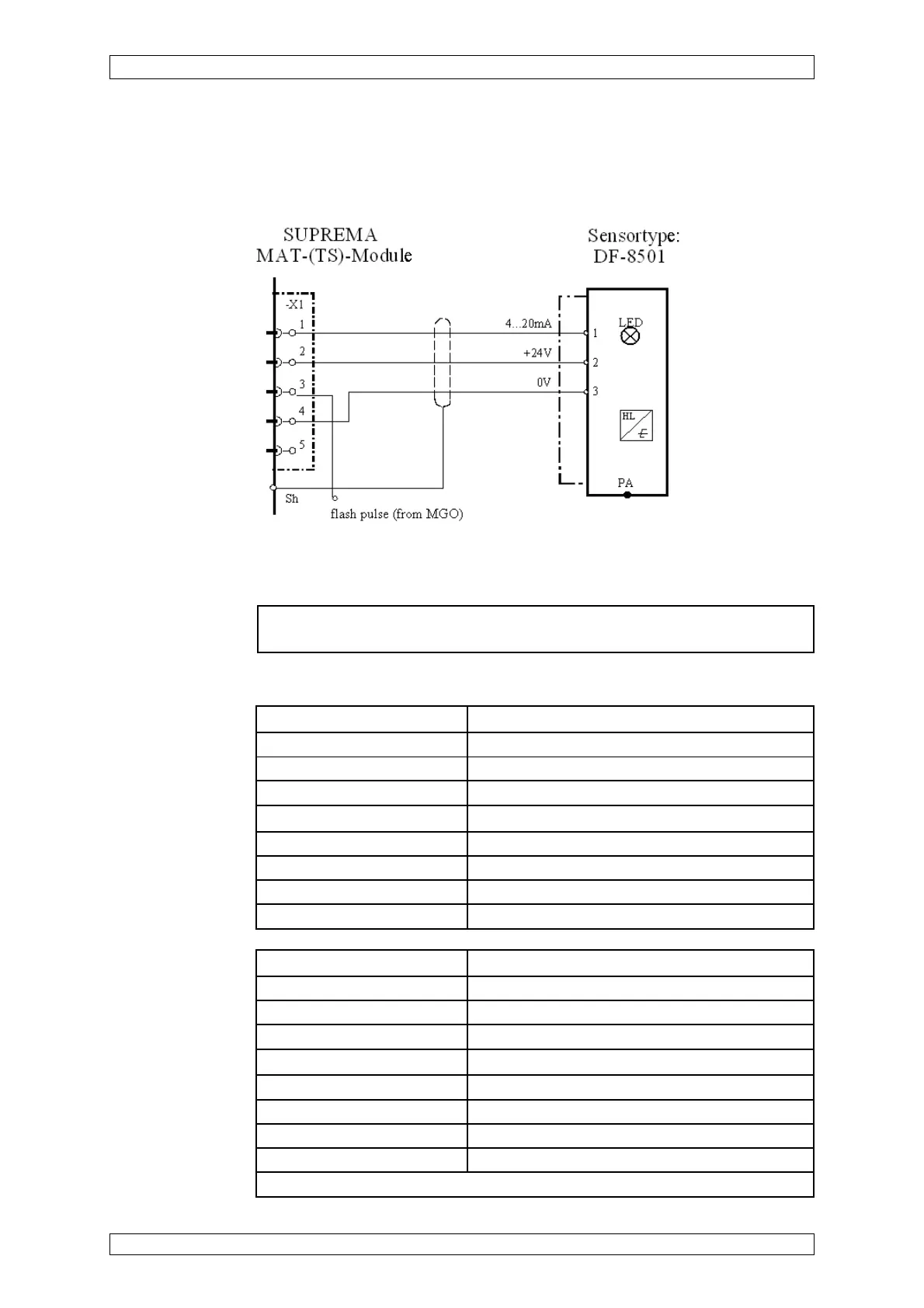

12.28 SUPREMA Sensor Data Sheet DF-8501*
Order No.: D0793703
The cable screen is connected at the SUPREMA and the DF-8501.
Connection module: MCI 10/MCI 20 (active/3-wire/4 ... 20 mA non-linear/current supply)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Connection data: Supply voltage 16 ... 24 VDC
Power consumption 5 W (without cable length)
Maximum power consumption 200 mA/Switch-on current up to 400 mA
Cable type 3-core, 80 % screened
Maximum burden 200 ohms
Maximum cable length 1000 m (at 1.5 mm
2
cross section per wiret)
Cable diameter 8 ... 14 mm (16 mm special design)
Cross section per wire allowed 0.5 ... 2.5 mm
2
Cable inlet Plug connection
Conditions for use: Mounting Wall mounting/Hanging device
Ingress protection IP 54 according to EN 60529
Explosion protection none
Type test approval none
Temperature -20 °C to +40 °C
Humidity 20 ... 90 % rel. humidity; noncondensing
Pressure 950 ... 1100 hPa
Weight approx. 1.4 kg
Dimensions W x D x H 120 mm x 80 mm x 122 mm
For further details see operation manual. (Order No.: D0792151)
