MSA SUPREMA - SUPREMA Sensor Data Sheet DF-8510

REV 0, June 2005Page 308
Operation Manual SUPREMA
12. Sensor Data Sheets
12.30 SUPREMA Sensor Data Sheet DF-8510*
Order No.: D0793730

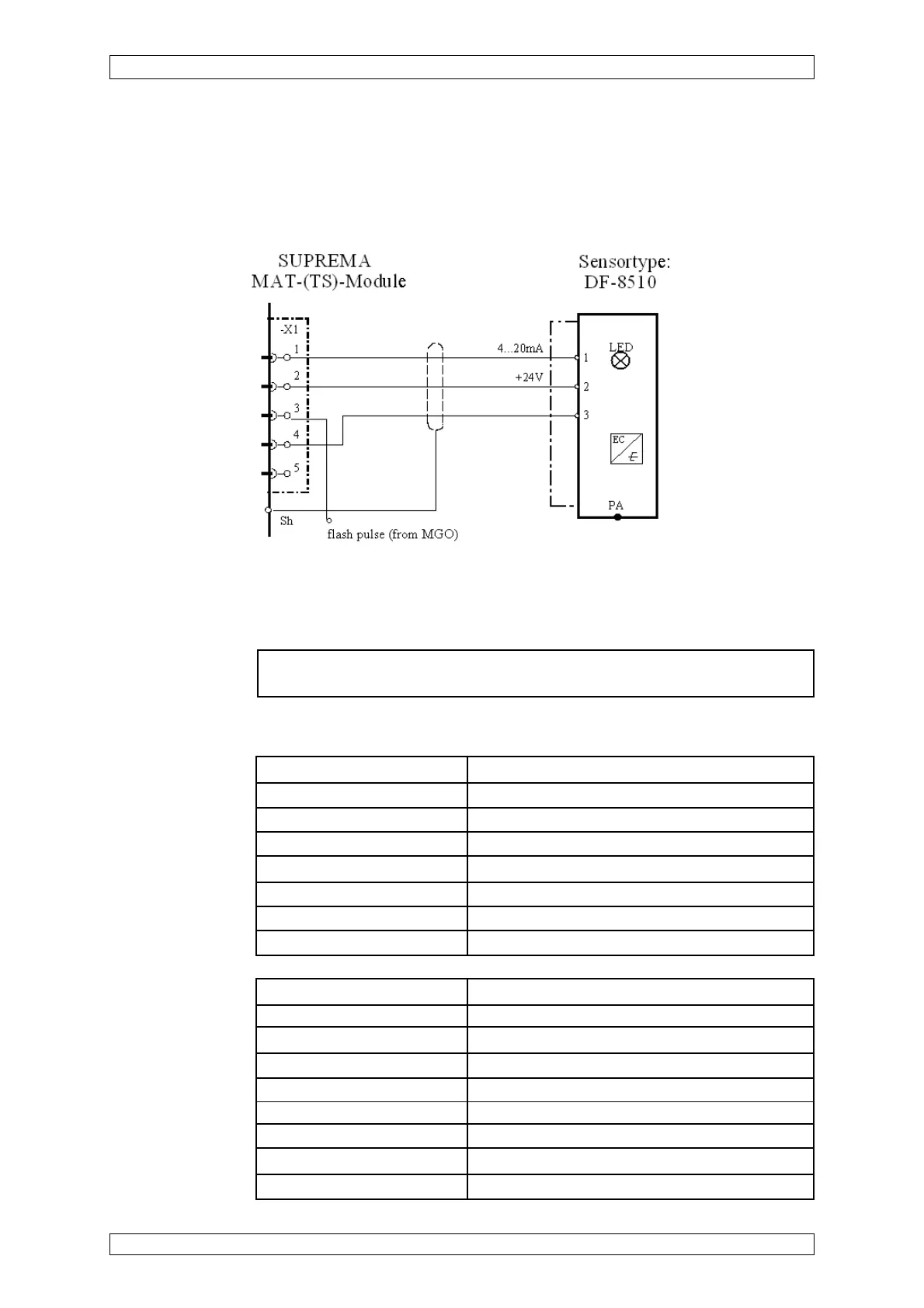

The cable screen is connected at the SUPREMA and the DF-8510.
Connection module: MCI 10/MCI 20 (active/2-wire/4 ... 20 mA linear/current supply)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Connection data: Supply voltage 16 ... 32 VDC
Maximum power consumption 50 mA
Cable type 2-core, 80 % screened
Maximum burden 200 ohms
Maximum cable length 1000 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 14 mm
Cross section per wire allowed 0.5 ... 2.5 mm
2
Cable inlet Connection plug
Conditions for use: Mounting Wall mounting
Ingress protection IP 54 according to EN 60529
Explosion protection none
Type test approval none
Temperature -20 °C to +40 °C
Humidity 5 ... 90 % rel. humidity; noncondensing
Pressure 950 ... 1100 hPa
Weight approx. 1.4 kg
Dimensions W x D x H 120 mm x 80 mm x 122 mm
