12.34 SUPREMA Sensor Data Sheet DF-9500
Order No.: D0742xxx (xxx-according to the list of components)

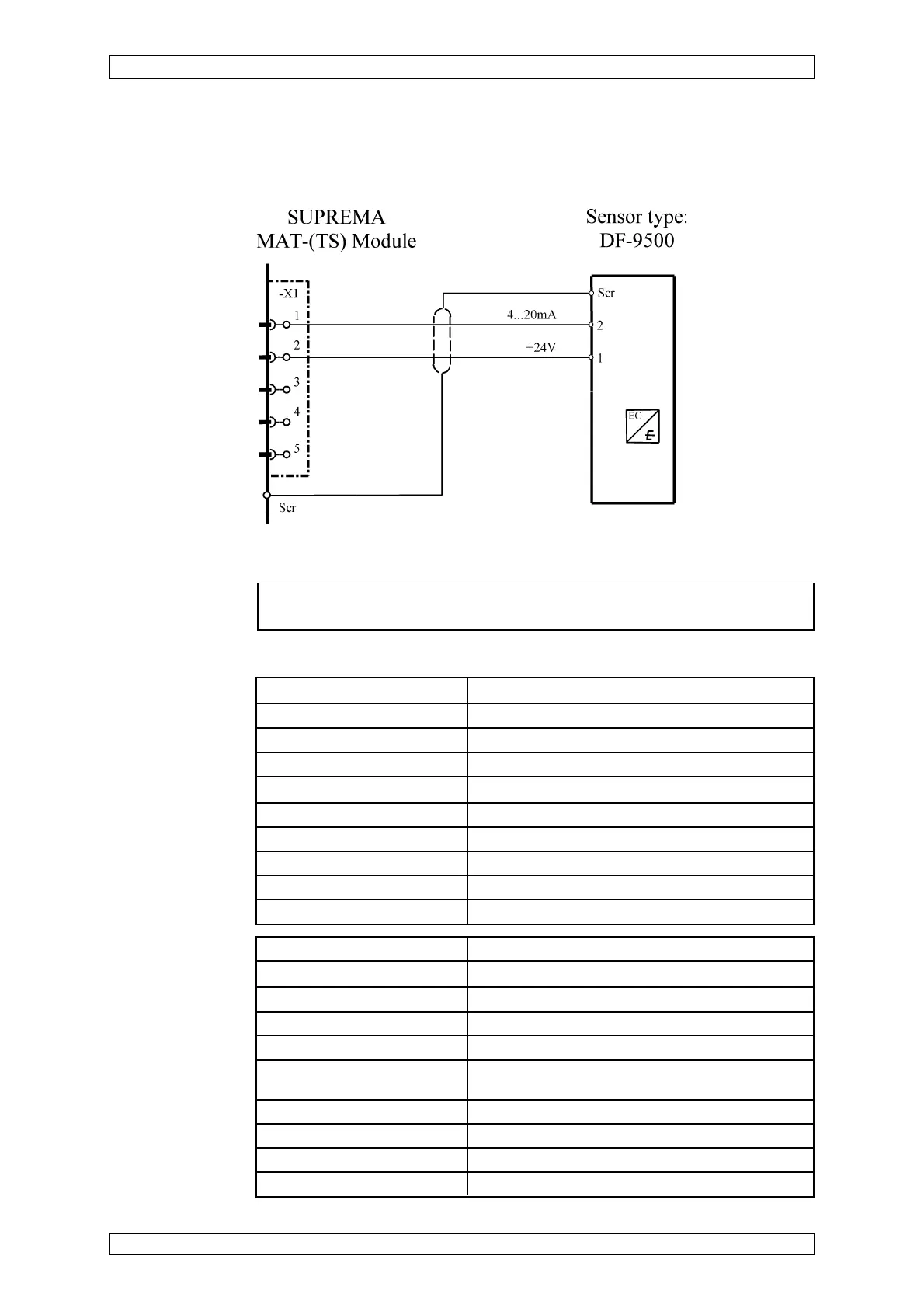

The cable screen is connected at the SUPREMA and the DF-9500.
Connection module: MCI 10/MCI 20 (active/2-wire/4 ... 20 mA linear/sink)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Connection data: Supply voltage 14 ... 28 VDC
Supply current 4 ... 30 mA
Maximum power consumption 50 mA
Power consumption 1 W (without cable length)
Cable type 2-core, 80 % screened
Maximum burden 500 ohms
Maximum cable length 2000 m (at 1.5 mm
2
cross section per wire)
Cable diameter 9 ... 13.5 mm
Cross section per wire allowed 0.5 ... 2.5 mm
2
Cable inlet PG 13.5
Conditions for use: Mounting Wall mounting
Ingress protection IP 42 (Sensor) IP 63 (Housing)
Explosion protection II 2G EEx ia IIC T6
Certificate DMT 01 ATEX E 152 X
Temperature min. 20°C to + 40 °C (depending on component)
Humidity min. 20 ... 80 % rel. humidity (depending on
component)
Pressure 900 ... 1100 hPa
Weight approx. 1.0 kg
Dimensions W x D x H 122 x 81 x 152 mm
Housing material Polyester
