Operation Manual SUPREMA
5. Installation

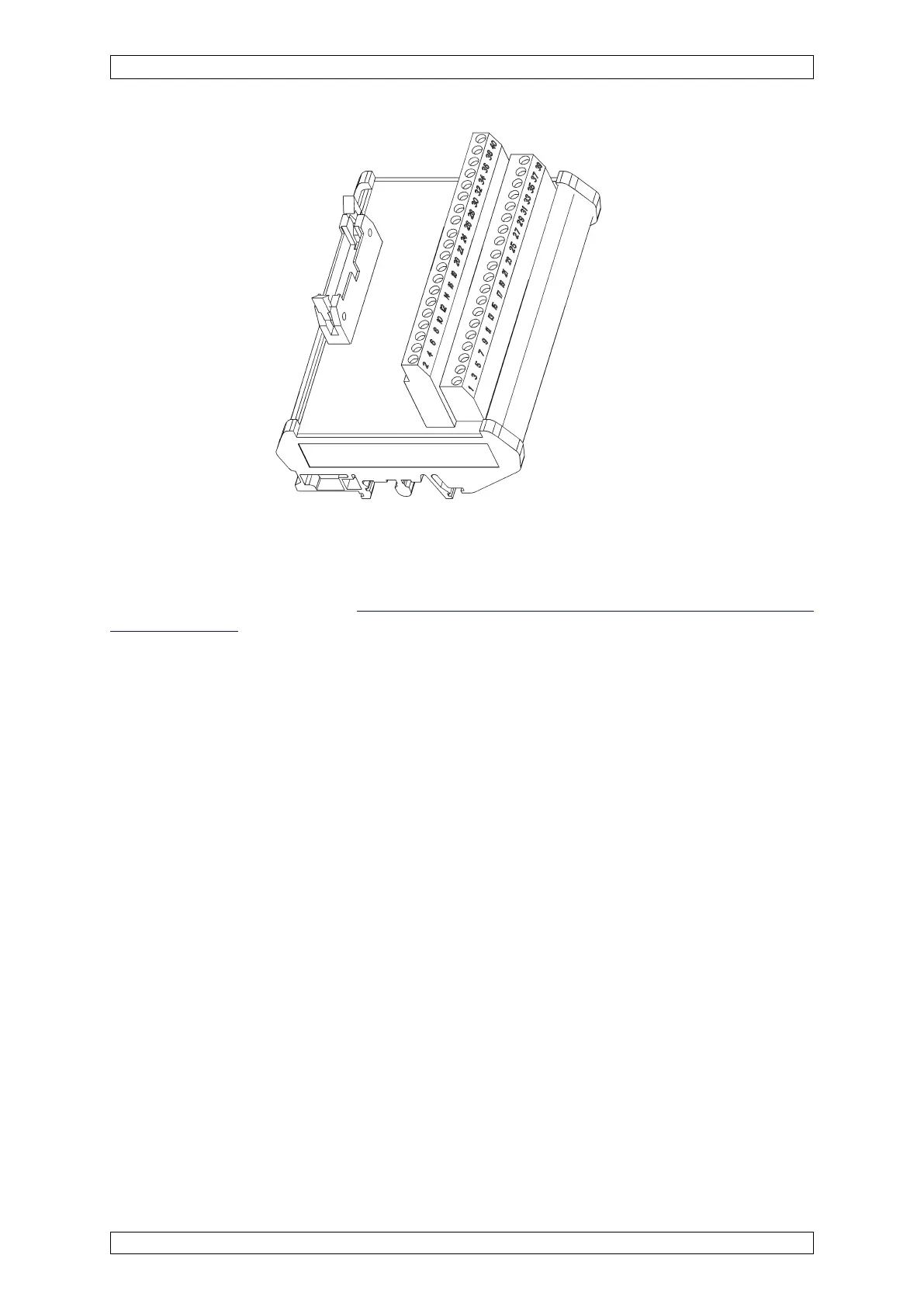

Figure 5-37: MGT-40-TS Module
The cables are to be screened (see section 5.1.1 Installation Instructions for Following the
EMC Directives).
5.8.1 MHD-TS Module (High Driver)
The MHD module is an external supplement of the MGO module inverting the MGO output
signal.
Unlike the MGO module (= Low Driver), the MHD assembly switches loads which are jointly
connected to GND (= High Driver).
The MHD module is connected to the rack by 40-pin ribbon cable, and thus makes 40 outputs
available (24V/0.3 A).
40-pin ribbon cable connection at MUT 10 (of MGO 10).
• 24 V supply and load connections (20 A maximum)
• Mounting on C or standard rail
• Outputs short-circuit-proof
Redundant supply must be realized externally.
