12.20 SUPREMA Sensor Data Sheet D-8101
Order No.: D0715672

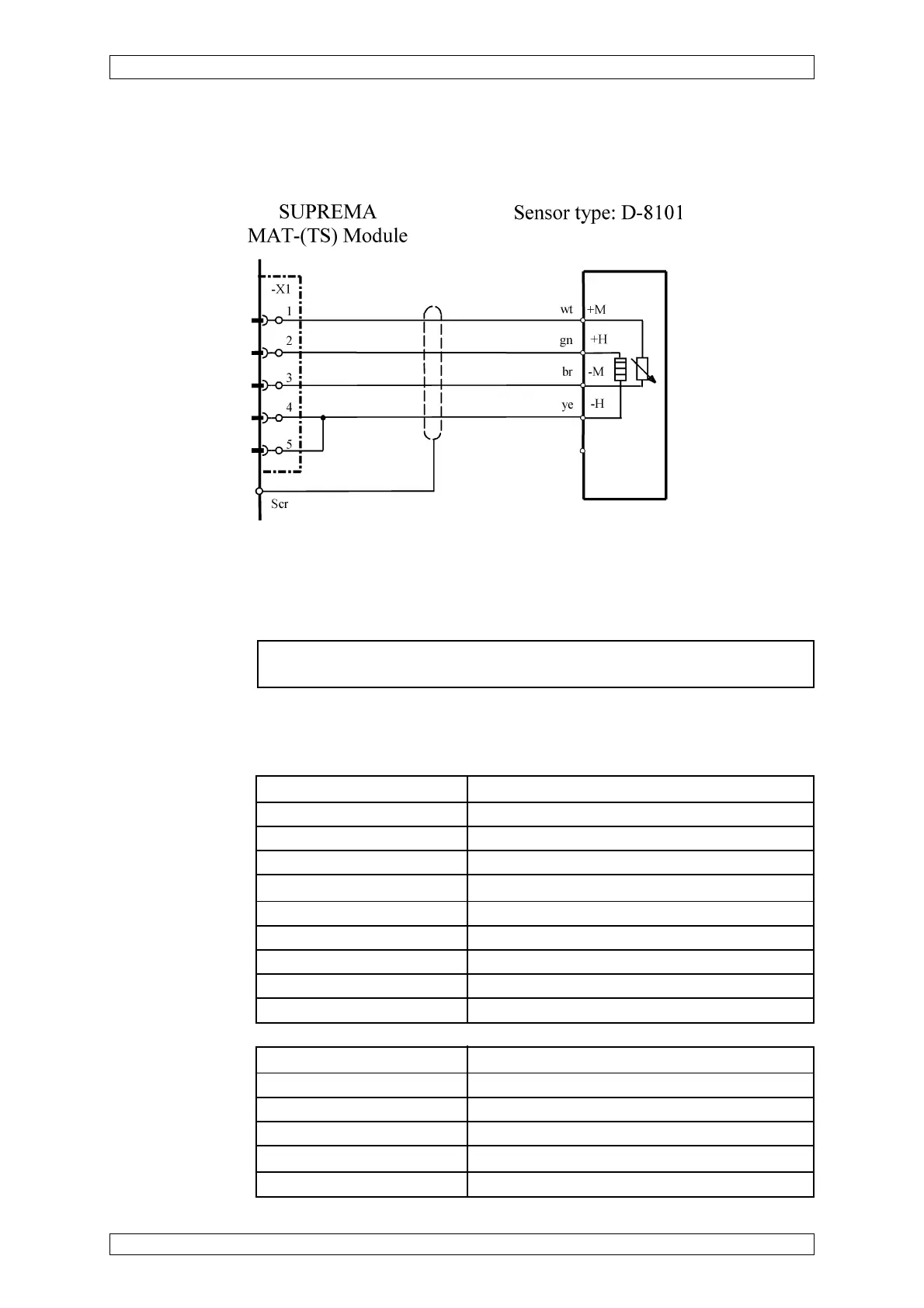

The cable screen is only connected to the SUPREMA.
Alternatively, the bridge -X1/4 -X1/5 may be performed as a solder-bridge on the MAT-10-
resp. on the MAT-10-TS-module. (The bridge is from status G of MPI 10 module no longer
required.)
Connection module: MPI 10/HL 8101/passive/4-wire/Constant current/Presetting required
Sensor
simulation module: HL (Order No.: 10030264)
Attention! Before connecting measuring head, reduce sensor current to minimum!
Connection data: Bridge current 118 mA ± 2 mA
Maximum nominal current 150 mA
Maximum nominal voltage 10 V
Power consumption approx. 0.6 W (without cable length)
Cable type 4-core, 80 % screened
Maximum loop resistance 36 ohms
Maximum cable length 1500 m (at 1.5 mm
2
cross section per wire)
Cable diameter 7 ... 13.5 mm
Cross section per wire allowed 0.75 ... 1.5 mm
2
Cable inlet Pg 13.5
Conditions for use: Mounting Wall mounting
Ingress protection IP 42 according to DIN 400 50
Explosion protection (Ex) sd 3n G5
Certificate III B/E -27349
Temperature -20 °C to +40 °C
Humidity 10 ... 95 % rel. humidity; noncondensing
