Fold support
Introduction
The Océ folder for Océ PlotWave 750 supports folding drawings into DIN A and DIN B package
formats.
This Océ folder offers the selection of ‘Standard’, ‘Ericsson’ or ‘Afnor’ drawing methods when
defining the folding requirements. These are a means of communicating the document
orientation and legend position.
The controller can then appropriately rotate the drawing to ensure that the completed fold
package has the legend on the top.
NOTE
As the print is coming out of the printer, in most cases the legend should be on the trailing edge
(last to come out of the printer). If the automatic rotate is not working as you expect, define the
rotation so the legend comes out last.

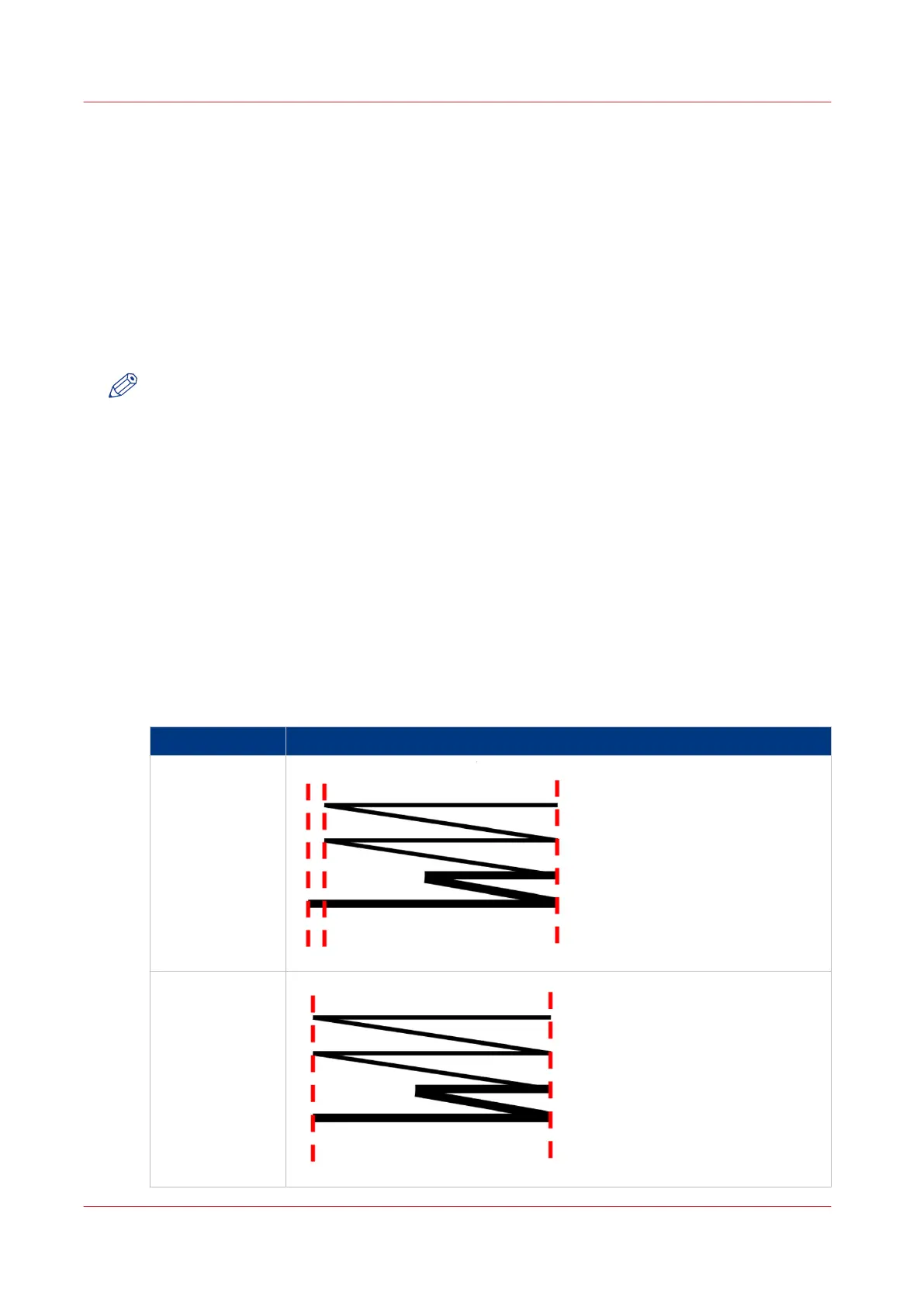

Fold patterns
DIN-A
The front page and back page fully cover the folded package and the back panel extends to create
a binding edge. A compensating fold in between is required to ensure that the back panel
completely covers the package and extends to provide the binding edge.
DIN-B
The DIN-B is equal to DIN-A but provides a package without a binding edge. The folder provides a
package with front panel and back panel covering the package. A compensating fold in between
is required to ensure that both panels are covered. This format is used for a basic fold package.
Fold patterns
Fold pattern Description
DIN-A
DIN-B
Fold support
286
Chapter 7 - The finishing options
