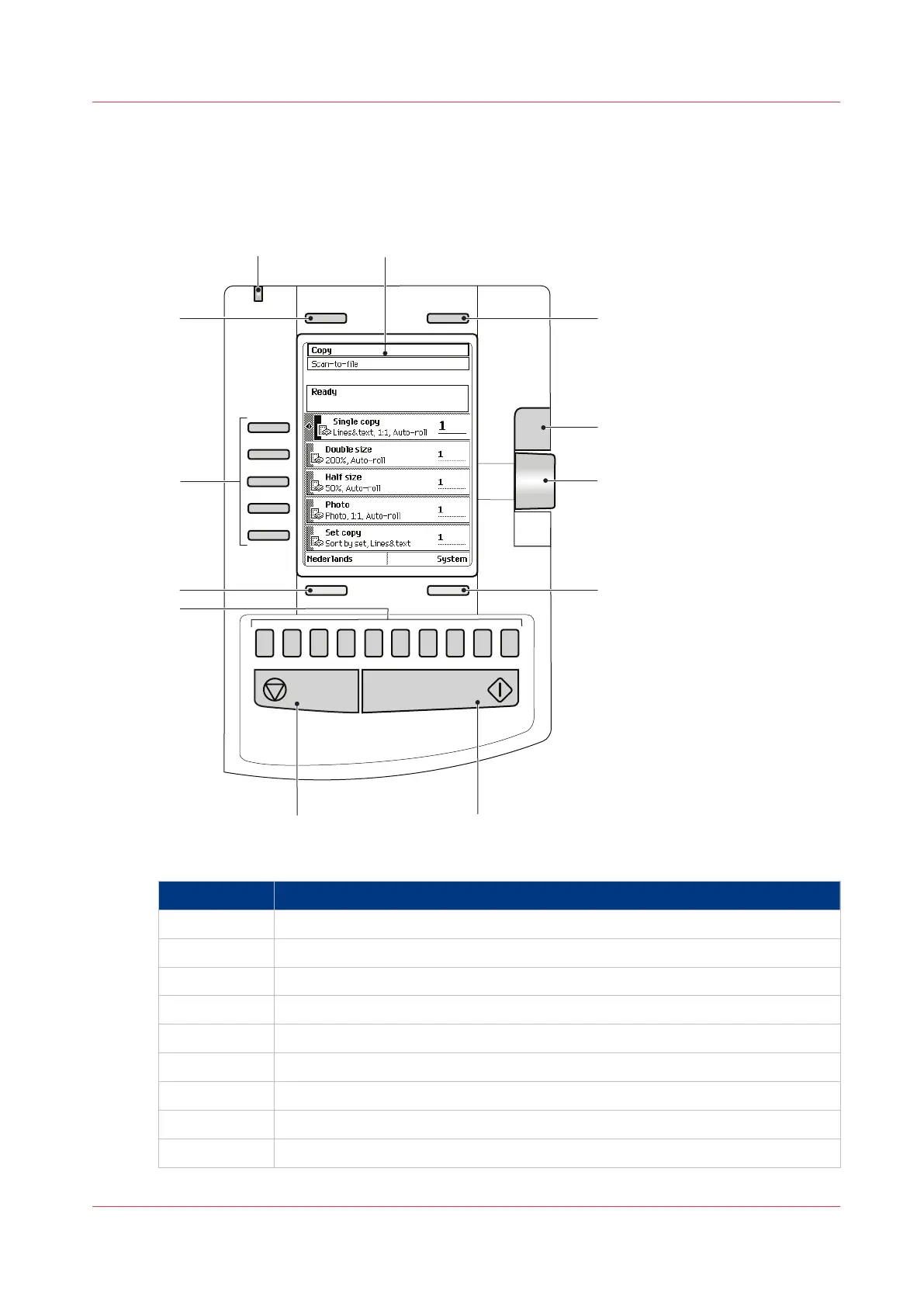

Scanner operator panel
Océ TC4 scanner
1
2
3
4
5
6
7
8
9
0
3
5
6
11
4
1
2
7
8
10
9
12
No. Component
1 LED (green and red attention light)
2 Display
3 Upper soft key
4 Scroll wheel key
5 Scroll wheel
6 Lower soft key
7 Green start key
8 Stop key
9 Numeric keys
