Use the optional roll loader
Introduction
In order to help customers and to comply with the international safety regulations as far as
maximum roll weights are concerned, Océ has developed a roll loader for use with the Océ
PlotWave 750.
Procedure
1.
Fully open the roll drawer. Inside the drawer, the roll loaders are installed. The roll loaders consist
of a metal frame with a lever and a green knob in the middle of the lever.
NOTE
Do not open more than one roll drawer at a time to prevent overbalance of the printer.
2.
Put the appropriate horizontal lever in an upright position by pulling it to the right.
3.
Pull the lever completely forward. The roll holder is lifted up; see the illustration below.

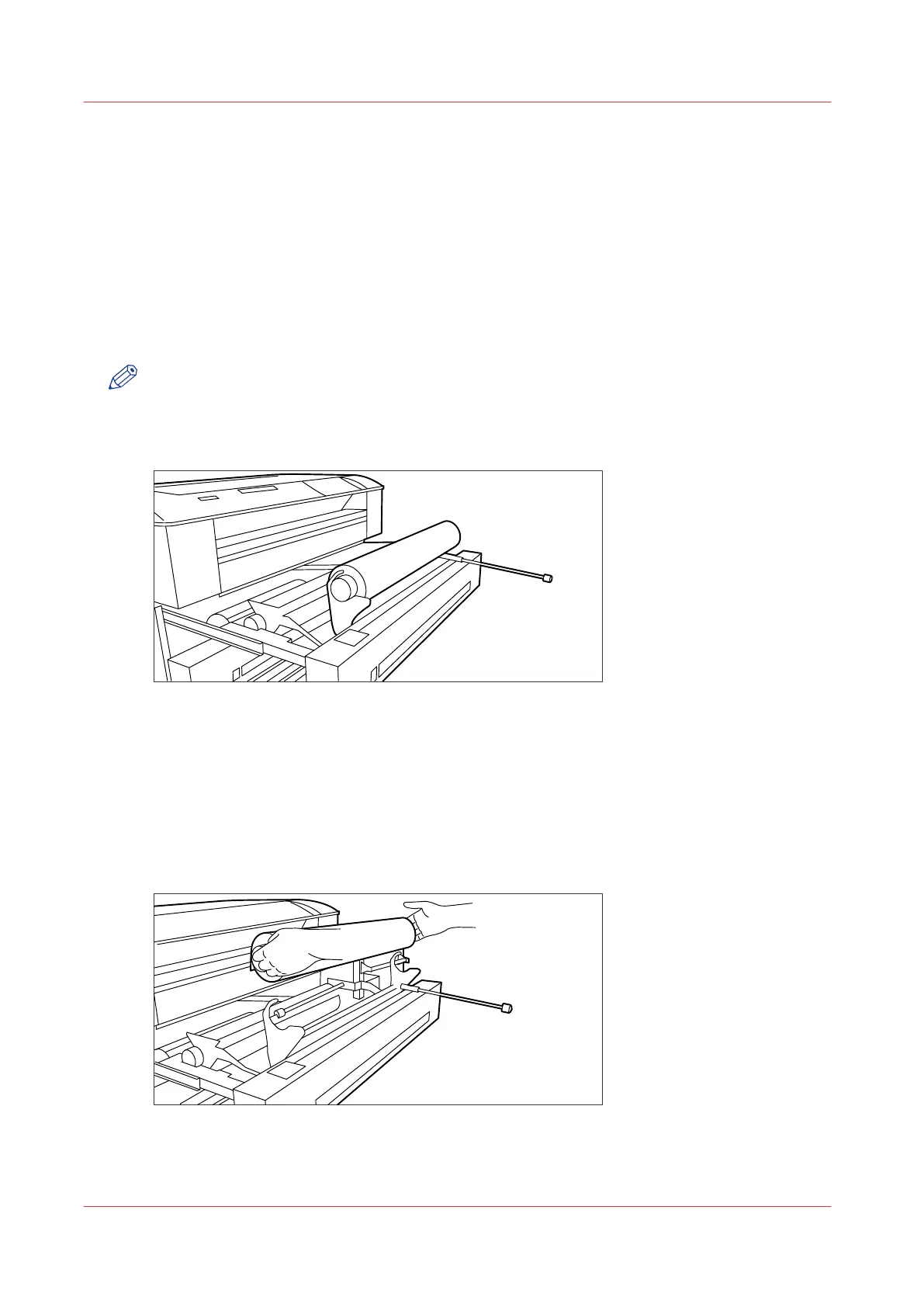

[124] Roll loader
4.
Remove the roll holder from the paper roll drawer using both hands.
5.
Press the green knob inside the roll holder to release the locking mechanism and remove the core
from the holder.
6.
Slide the roll holder in the new roll of material while pressing the green knob.
7.
Align the roll with the appropriate size indicator on the roll holder and release the locking
mechanism. This line has to be completely visible.
8.
Use both hands to place the holder in the roll loader; see the illustration below.
[125] Use both hands
Use the optional roll loader
306
Chapter 8 - Maintain and troubleshoot the Océ PlotWave 750 system
