Handle errors at the reinforcement unit
Clear a tape jam in the reinforcement unit
Introduction
When a tape jam occurs in the reinforcement unit, an error message appears on the display.
Procedure
1.
Open the front door of the reinforcement unit

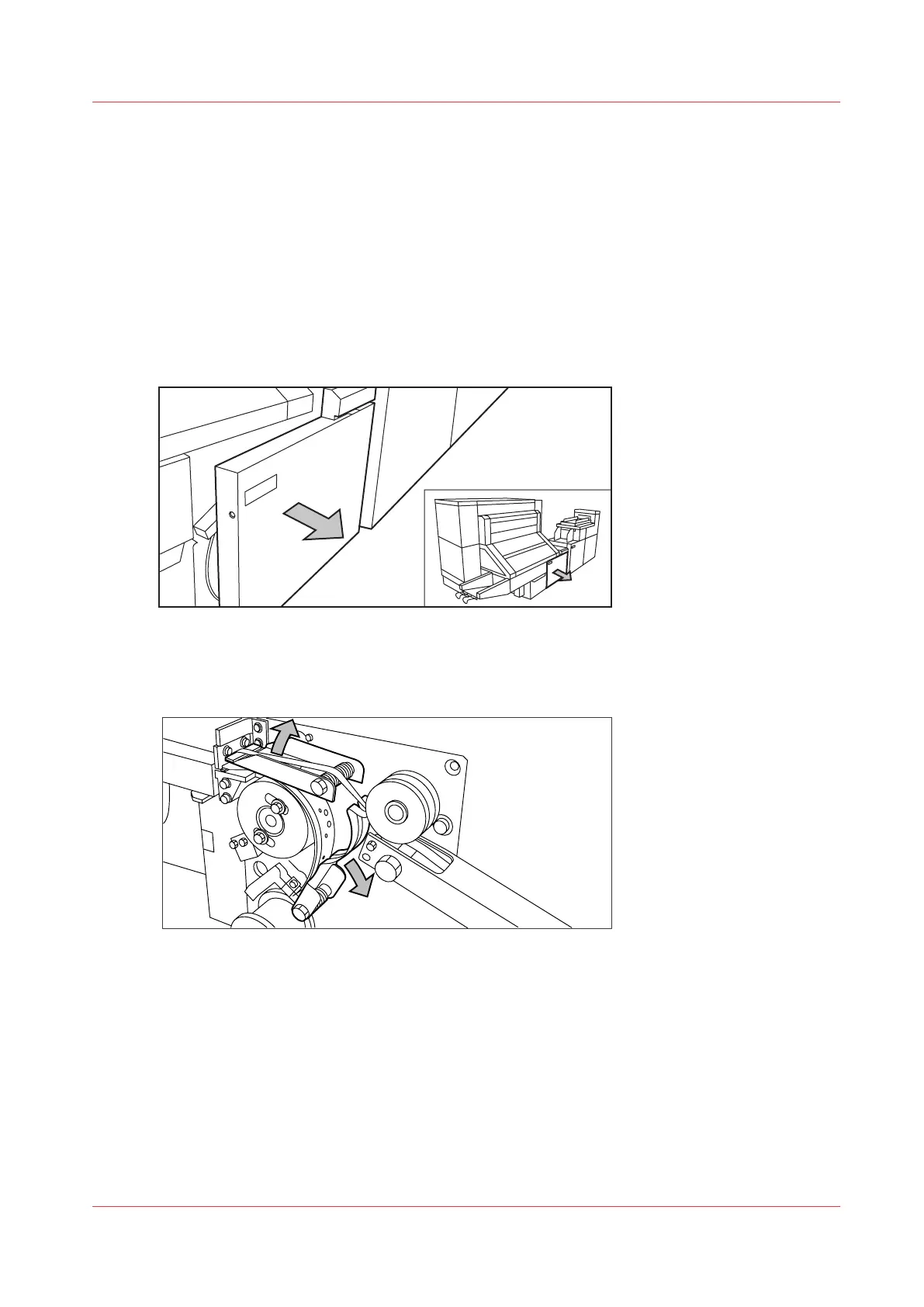

[189] Opening the front door of the reinforcement unit
2.
Turn the two guide plates away from the pin roller and lock the two guide plates into their open
position.
[190] Open the guide plates
3.
Remove all tape between the rollers and the knives.
