Oce PlotWave 750 - Insert a New Tape Roll

Insert a new tape roll
IMPORTANT
To prevent damage to the reinforcement unit, use only the original reinforcement strips from
Océ.
Procedure
1.
Place the new roll and close the side plate. Make certain that the roll is placed with the holes to
the back and the protection sheet to the front; see the illustration below.

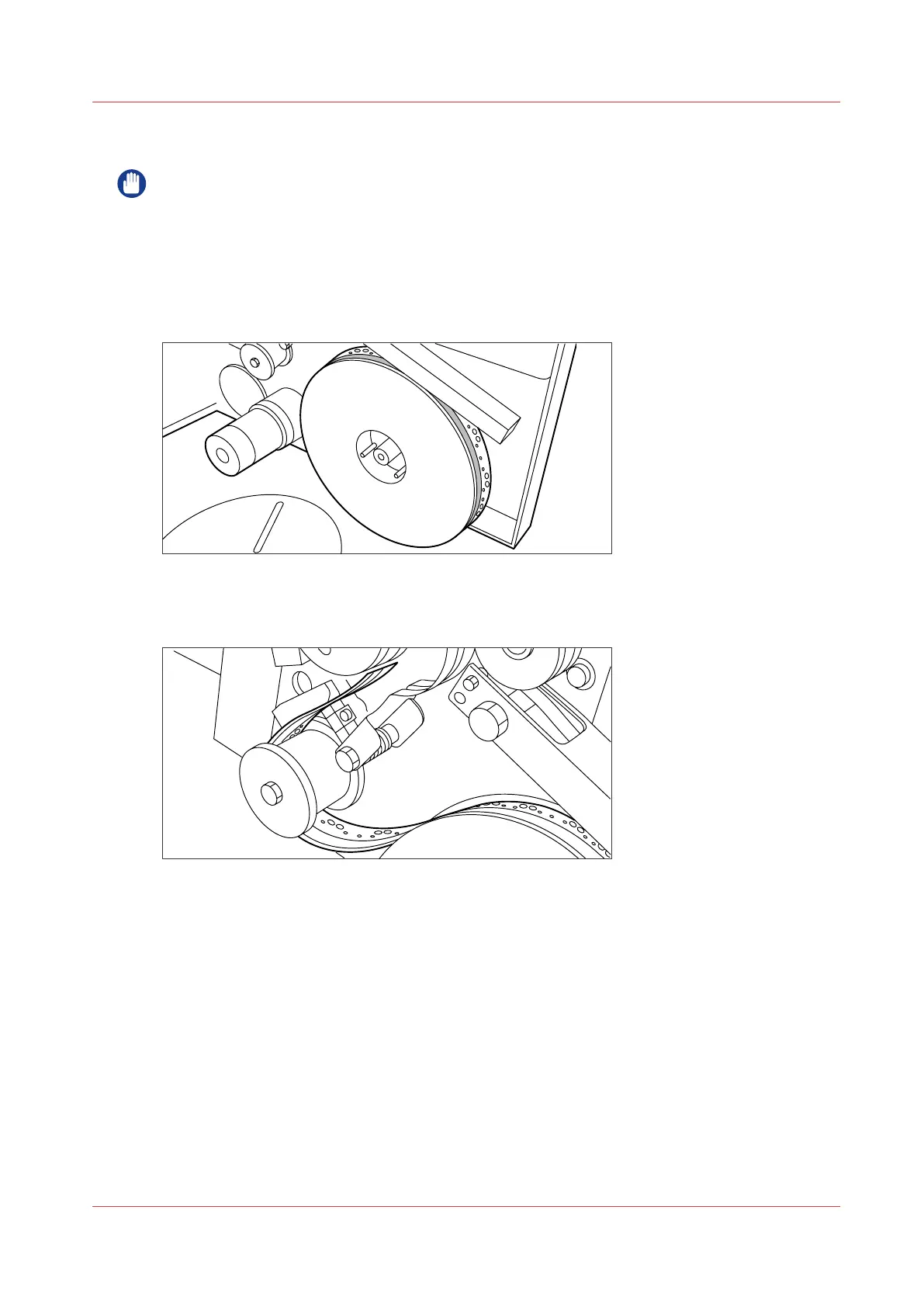

[174] Positioning the new roll
2.
Loosen the end of the roll and lead the tape over the large guide roller.
[175] Guiding the tape around the guide roller
3.
Guide the tape between the upper and lower knife and over the pin roller.
