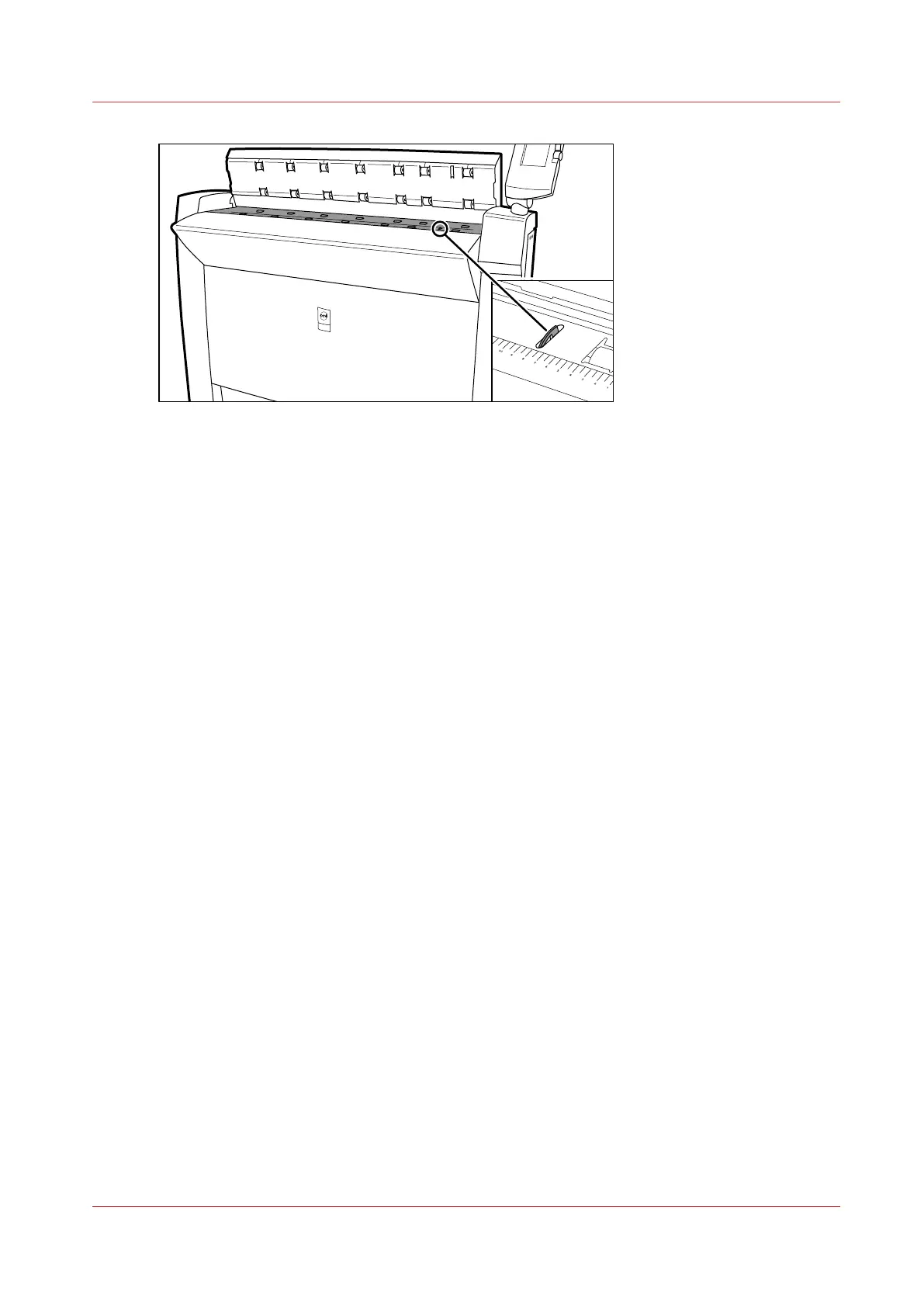

[146] Do not damage the sensor at the right side in front of the glass plate.
4.
Dry the glass plate and the white plate with another lint-free cloth.
5.
Clean the white plate.
6.
Lift the top cover, turn the top cover towards you and push the top cover down until you hear or
feel a click.
7.
Turn on the Océ TC4 scanner.
Clean the scan area
Chapter 8 - Maintain and troubleshoot the Océ PlotWave 750 system
331
