Usage example

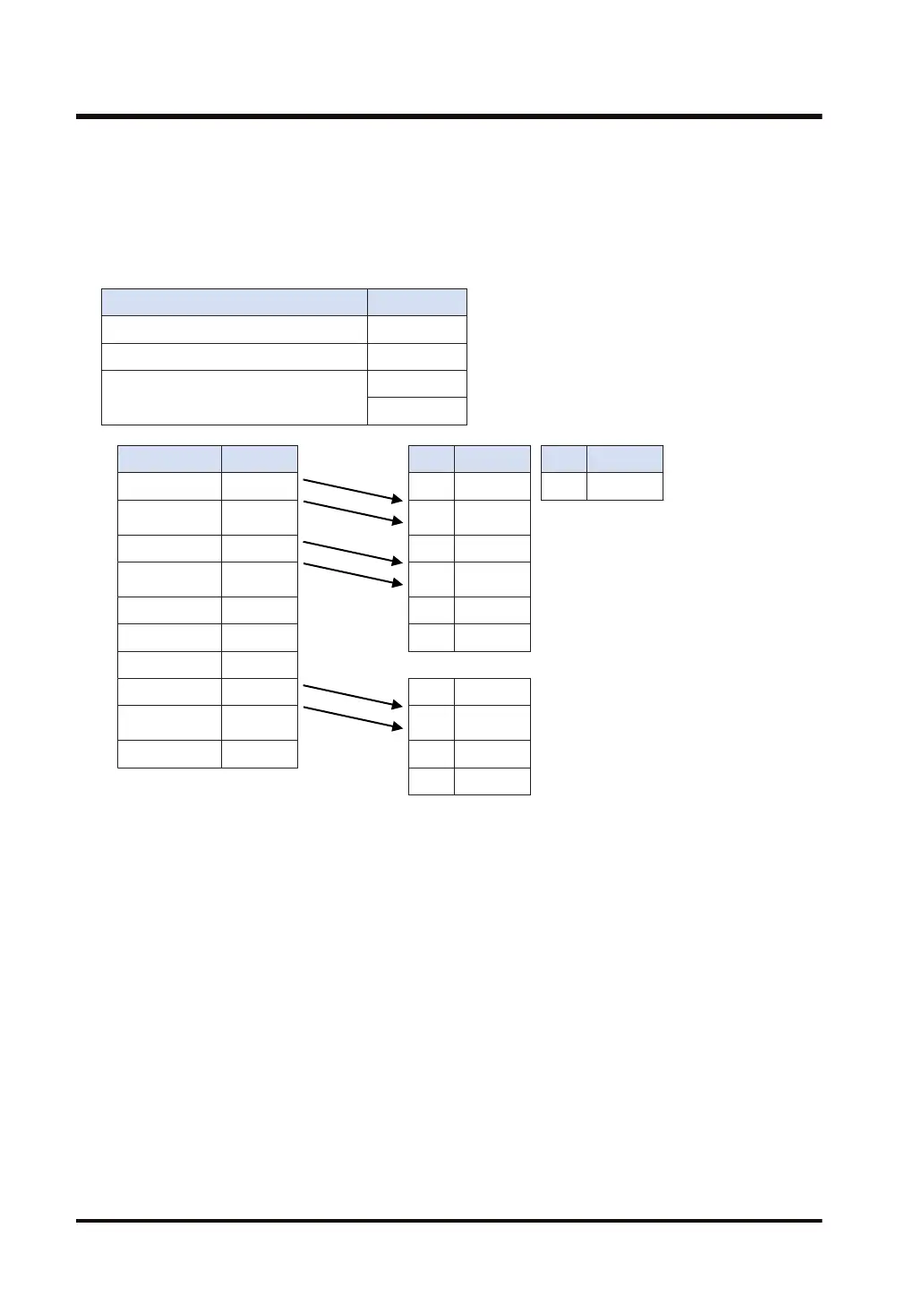

Example 1) Refreshing data from the receive buffer of connection number 1 of node
number 1 (when the refresh is completed normally)
[S1]... U1 [S2]... U1 [D]... DT20
● EtherNet/IP configuration setting
Setting item Settings
Node number 1
Connection 1
Input information (T>0) device allocation
LD20 to LD23
LD51 to LD52
Receive buffer Value Value Value
* 0 0011h LD19 DT20 0
* 1 2233h LD20 0011h
* 2 4455h LD21 2233h
* 3 6677h LD22 4455h
4 LD23 6677h
5 LD24
6
* 7 EEFFh LD50
* 8 FFEEh LD51 EEFFh
9 LD52 FFEEh
LD53
(Note 1) Receive buffers to which devices are allocated
17.37 EIP_IN (EtherNet/IP Input Refresh)
17-188 WUME-FP7CPUPGR-12
