88C-23
AIR BAG AND PRETENSIONERS
Rear centre seat belt: Removal - Refitting
88C
REMOVAL
REMOVAL PREPARATION OPERATION
a Remove:
-the single unit rear bench seat base (see Single
unit rear bench seat base: Removal - Refitting)
(76A, Rear seat frames and runners),
-the 1/3 or 2/3 rear bench seatback (see 1/3 and 2/
3 rear bench seatback: Removal - Refitting)
(76A, Rear seat frames and runners) or the single
unit rear bench seatback (see Single unit rear
bench seatback: Removal - Refitting) (76A, Rear
seat frames and runners).
a Pull down the 2/3 rear bench seatback (see 1/3 and
2/3 rear bench seatback: Removal - Refitting)
(76A, Rear seat frames and runners) or the single
unit rear bench seatback (see Single unit rear
bench seatback: Removal - Refitting) (76A, Rear
seat frames and runners).
a Remove the rear quarter panel trim (see Quarter
panel trim: Removal - Refitting) (71A, Body inter-
nal trim).
OPERATION FOR REMOVAL OF PART
CONCERNED

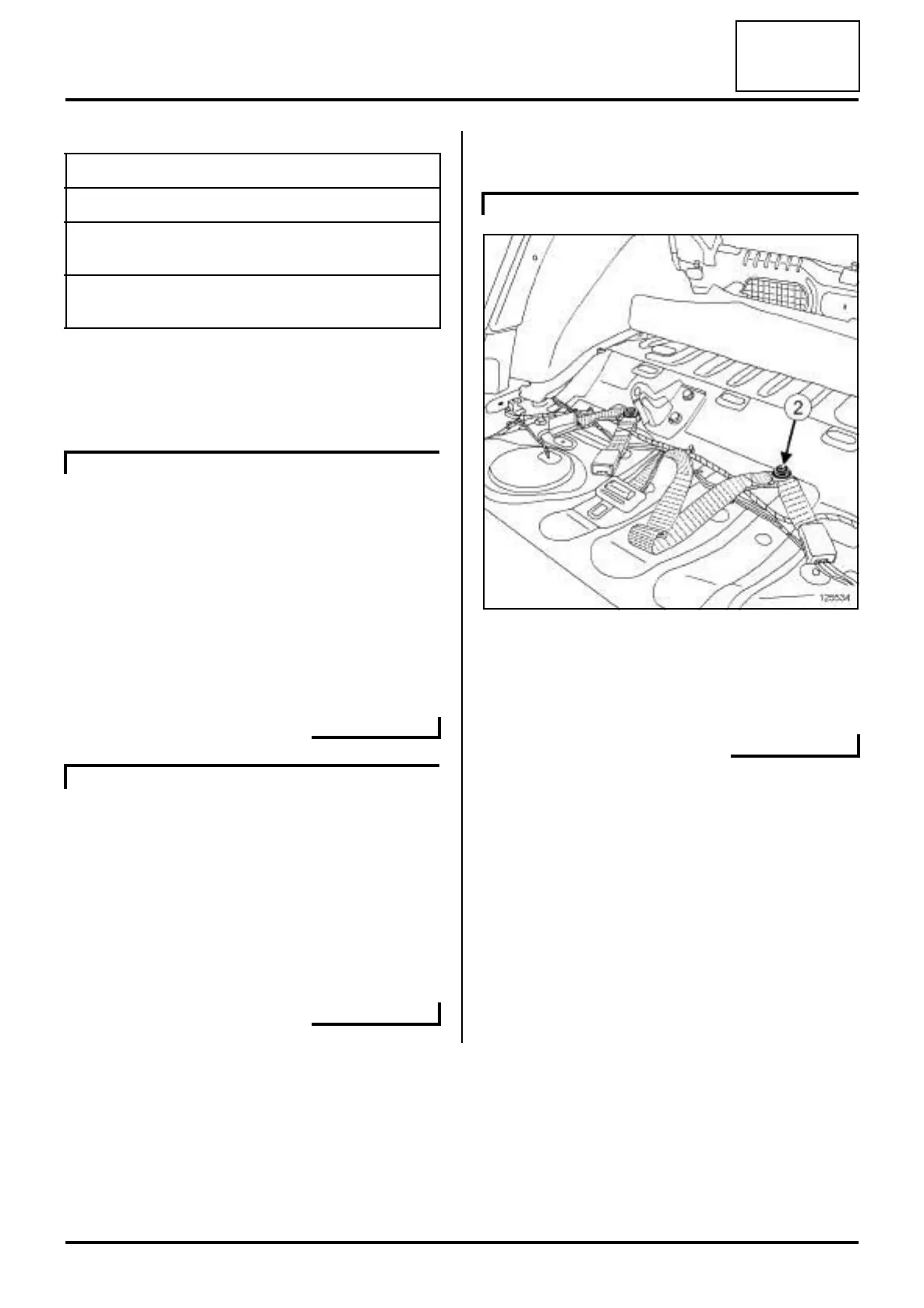

a Remove:
- the rear centre seat belt bolt (2) ,
- the rear centre seat belt.
Tightening torquesm
rear centre seat belt bolt 21 N.m
rear centre seat belt
guide bolt
21 N.m
seat belt return mecha-
nism bolt
21 N.m
2-POINT MIDDLE/REAR SEAT BELT
3-POINT MIDDLE/REAR SEAT BELT
2-POINT MIDDLE/REAR SEAT BELT
125534
