88C-24
AIR BAG AND PRETENSIONERS
Rear centre seat belt: Removal - Refitting
88C
a Remove:
-the rear centre seat belt guide bolt (3) ,
-the rear centre seat belt guide (4) ,
-the rear centre seat belt bolts (5) ,
-the rear centre seat belt.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: rear centre seat belt
mounting
a Coat the threads of the rear centre seat belt return
mechanism bolts with HIGH STRENGTH THREAD
LOCK (see Vehicle: Parts and consumables for
the repair) (04B, Parts and consumables).
a parts always to be replaced: rear centre seat belt
mounting
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
- the rear centre seat belt,
- the rear centre seat belt bolt.
a Torque tighten the rear centre seat belt bolt (21
N.m).
a
a Refit:
- the rear centre seat belt guide,
- the rear centre seat belt guide bolt.
a Torque tighten the rear centre seat belt guide bolt
(21 N.m).
a Refit the rear centre seat belt return mechanism.
a Torque tighten the seat belt return mechanism
bolt (21 N.m).
III - FINAL OPERATION
a Refit:
- the 1/3 or 2/3 rear bench seatback (see 1/3 and 2/
3 rear bench seatback: Removal - Refitting)
(76A, Rear seat frames and runners) or the single
unit rear bench seatback (see Single unit rear
bench seatback: Removal - Refitting) (76A, Rear
seat frames and runners),
3-POINT MIDDLE/REAR SEAT BELT

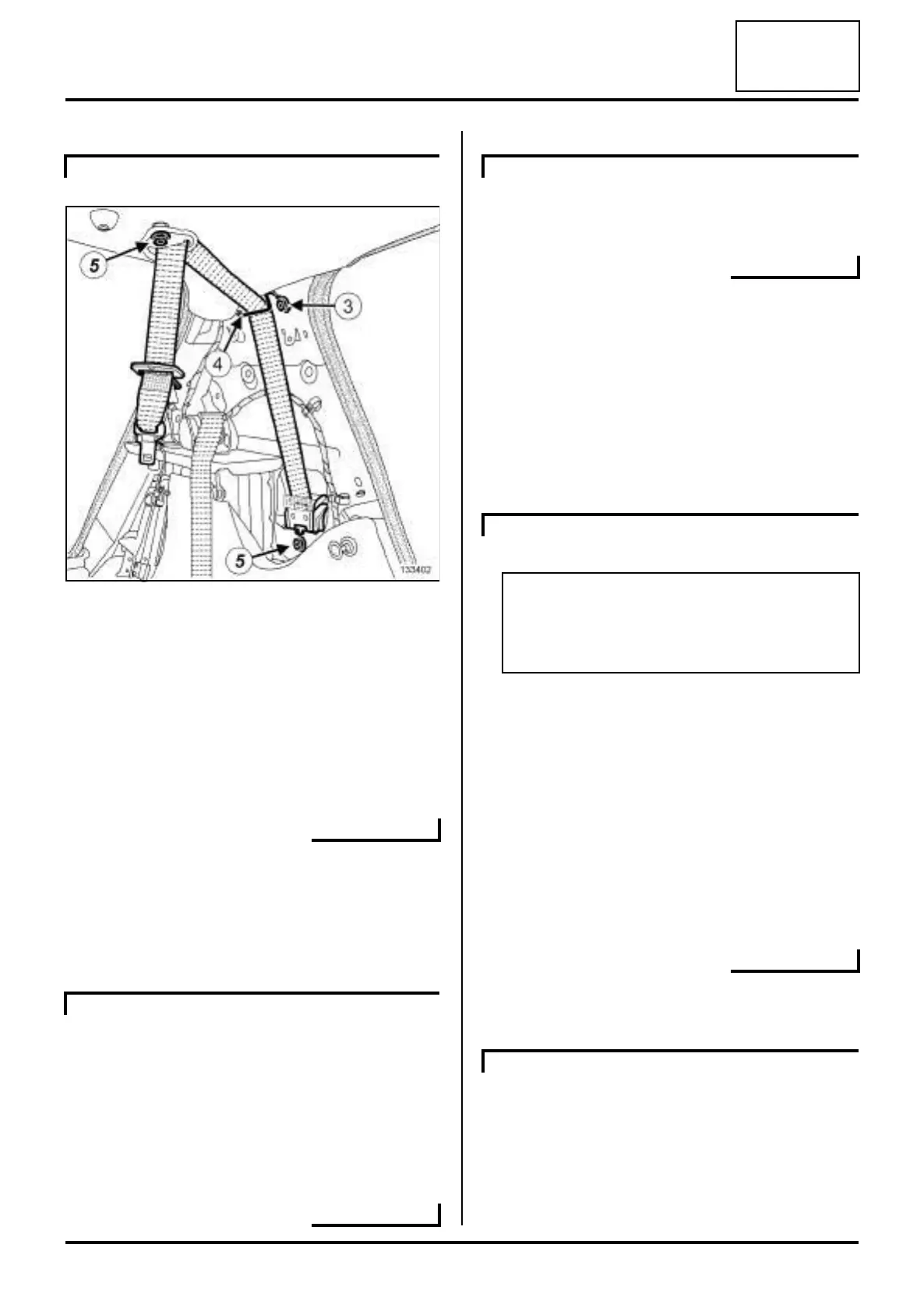

133402
3-POINT MIDDLE/REAR SEAT BELT
2-POINT MIDDLE/REAR SEAT BELT
3-POINT MIDDLE/REAR SEAT BELT
Note:
Check that the seat belt is not twisted between
the inertia reel and the rear centre seat belt
return mechanism.
2-POINT MIDDLE/REAR SEAT BELT
