11A-8
TOP AND FRONT OF ENGINE
Accessories belt: Removal - Refitting
K4M, and STANDARD HEATING RECIRCULATION
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the front right-hand wheel (see Wheel: Re-
moval - Refitting) (35A, Wheels and tyres).

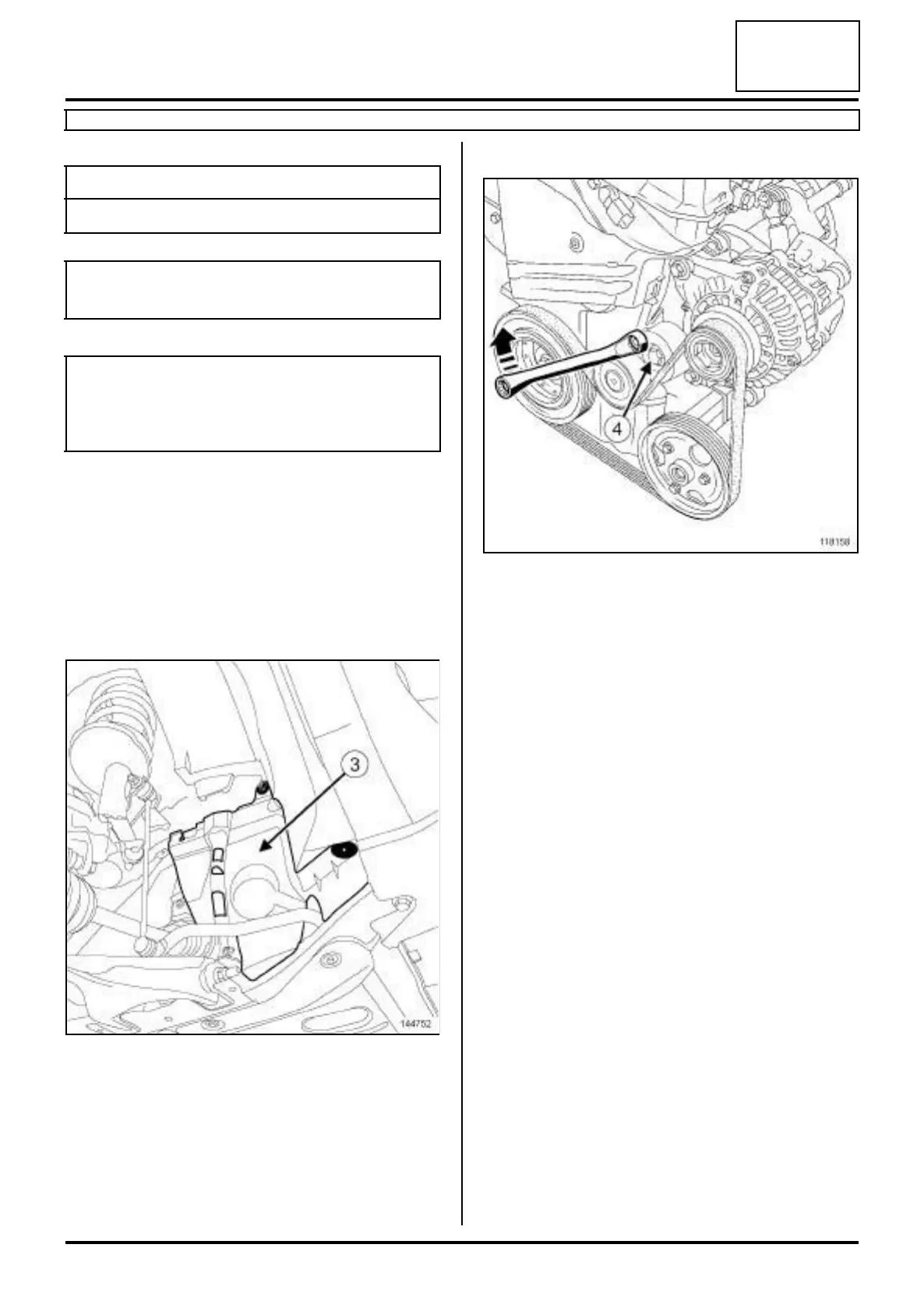

a Remove the front right-hand wheel arch side liner (3)
.
II - REMOVAL OPERATION
a Pivot the accessories belt auto tensioner clockwise.
a Remove:
- the accessories belt,
- the tensioning roller bolt (4) ,
- the tensioning roller.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Accessories belt
parts always to be replaced: Accessories belt
tensioning roller
a Use a brush to remove any deposits from the crank-
shaft pulley V-grooves.
II - REFITTING OPERATION
a Refit a new tensioning roller.
a Torque tighten the auto tensioner bolts (40 N.m).
a Pivot the accessories belt auto tensioner clockwise.
a Refit a new accessories belt.
a Turn the crankshaft two revolutions clockwise to po-
sition the accessories belt correctly.
III - FINAL OPERATION
a Refit the front right-hand wheel arch side liner.
Tightening torquesm
auto tensioner bolts 40 N.m
IMPORTANT
Wear cut-resistant gloves during the operation.
WARNING
Do not run the engine without the accessories belt
to avoid damaging the crankshaft accessories pul-
ley.
144752
118158
