11A-11
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K9K
11A
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Crankshaft acces-
sories pulley bolts.
a If reusing the crankshaft accessories pulley, clean
the crankshaft accessories pulley V-grooves with a
brush to eliminate any deposits.

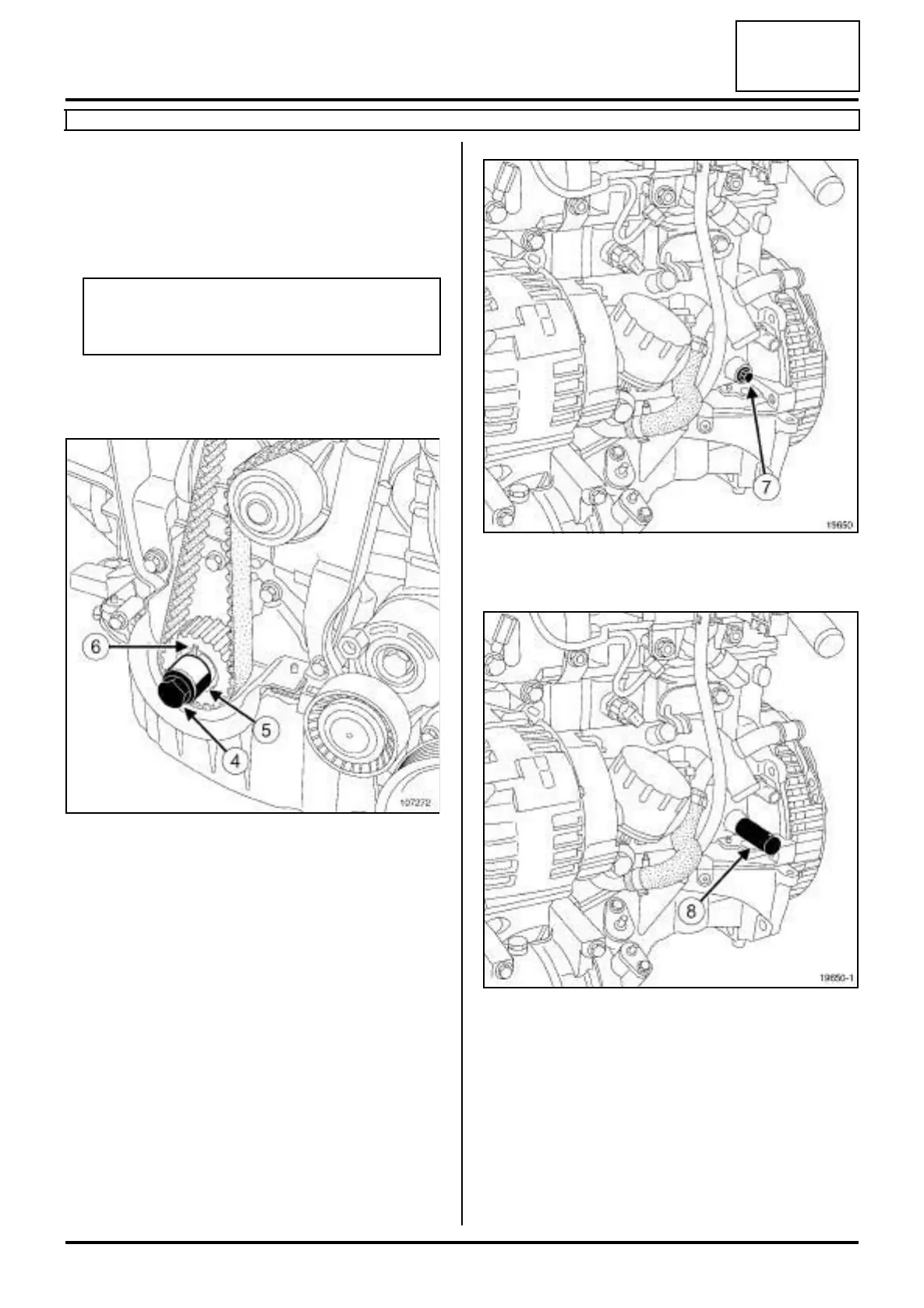

a Refit the old crankshaft accessories pulley bolt (4)
with a spacer (5) .
a Turn the crankshaft clockwise (timing end) using the
old bolt of the crankshaft accessories pulley, until
the collet (6) of the crankshaft timing pinion is almost
vertical and facing upwards.
a Remove the TDC setting pin plug (7) .
a Screw the TDC setting pin (Mot. 1489) (8) into the
cylinder block.
a Remove the old bolt from the crankshaft accessories
pulley fitted with its spacer.
II - REFITTING OPERATION
a Refit the accessories crankshaft pulley with a new
bolt.
WARNING
Only use brushes with plastic or non-corrosive
metal (brass) bristles.
107272
19650
19650-1
