11A-12
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K9K
11A

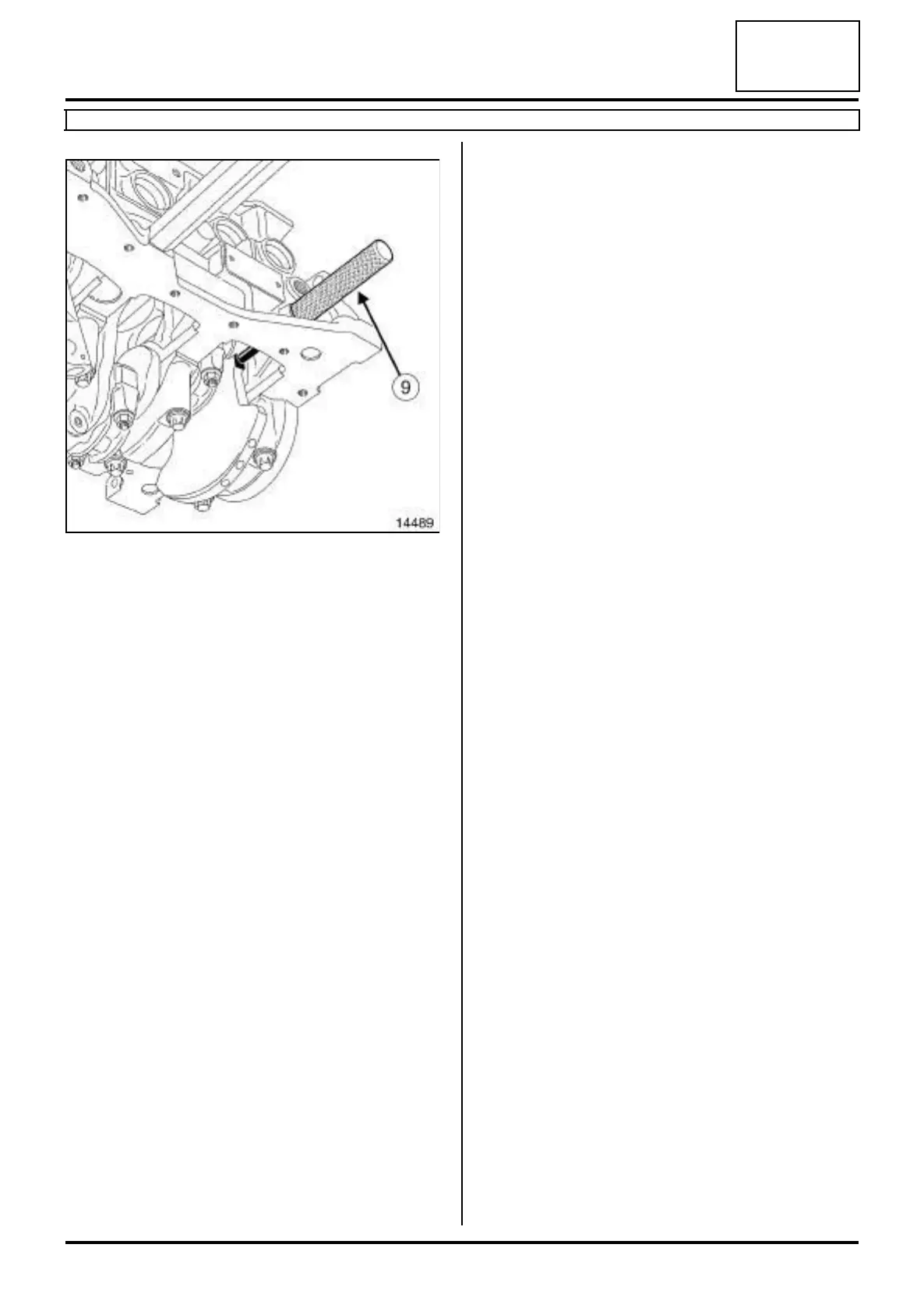

a Turn the crankshaft clockwise (timing end) smoothly
using the bolt of the crankshaft accessories pulley,
until the crankshaft presses against the tool (Mot.
1489) (9) .
a Torque and angle tighten (with the crankshaft in con-
tact with the TDC setting pin) the accessories pul-
ley bolt (120 N.m + 95˚ ±±
±±
15˚).
a Remove the TDC setting rod (Mot. 1489).
III - FINAL OPERATION
a Apply a drop of silicone adhesive sealant (see Ve-
hicle: Parts and consumables for the repair)
(04B, Consumables - Products) to the thread of the
TDC setting pin plug.
a Torque tighten the TDC pin plug (25 N.m).
a Refit:
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) ,
-the front right-hand wheel arch side liner,
-the front right-hand wheel arch (see Front wheel
arch liner: Removal - Refitting) (55A, Exterior
protection),
-the plastic shield underneath the diesel filter,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres).
14489
