11A-13
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K4M
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a lift (see Vehicle: Towing
and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the air inlet duct,
-the air resonator (see 12A, Fuel mixture, Air res-
onator: Removal - Refitting, page 12A-2) ,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) .

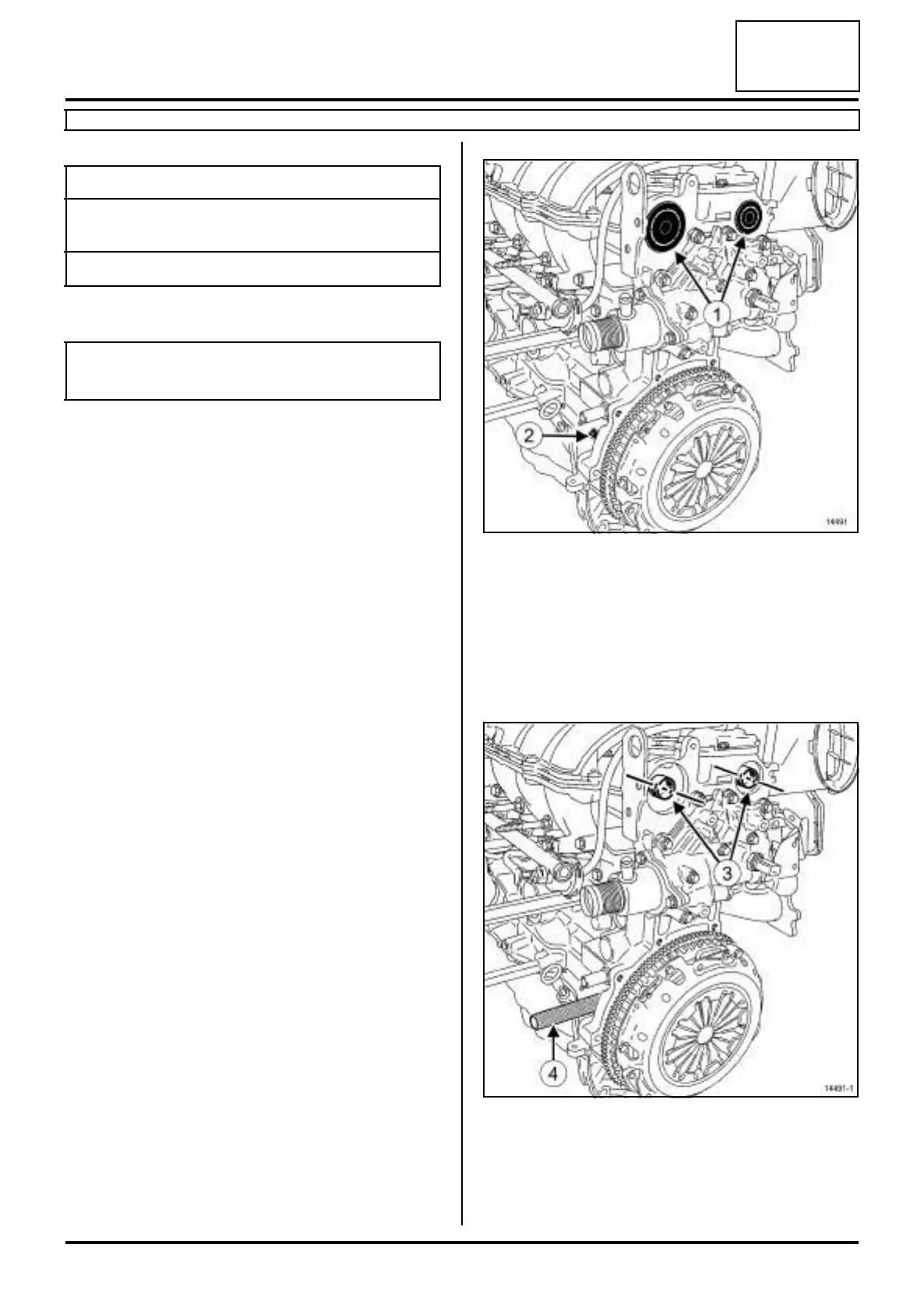

a Pierce the centre of the plugs (1) at the camshaft
ends with a screwdriver.
a Remove:
- the plugs from the camshaft ends with a screwdriv-
er,
- the TDC setting pin plug (2) .
a Position the camshaft grooves (3) almost horizontal-
ly and offset towards the bottom turning the crank-
shaft in the operating direction (clockwise at timing
end).
a Screw in the TDC setting pin (4) .
Tightening torquesm
new crankshaft acces-
sories pulley bolt
40 N.m + 145˚
±±
±±
15˚
TDC pin plug 25 N.m
IMPORTANT
Wear cut-resistant gloves during the operation.
14491
14491-1
