11A-14
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K4M
11A

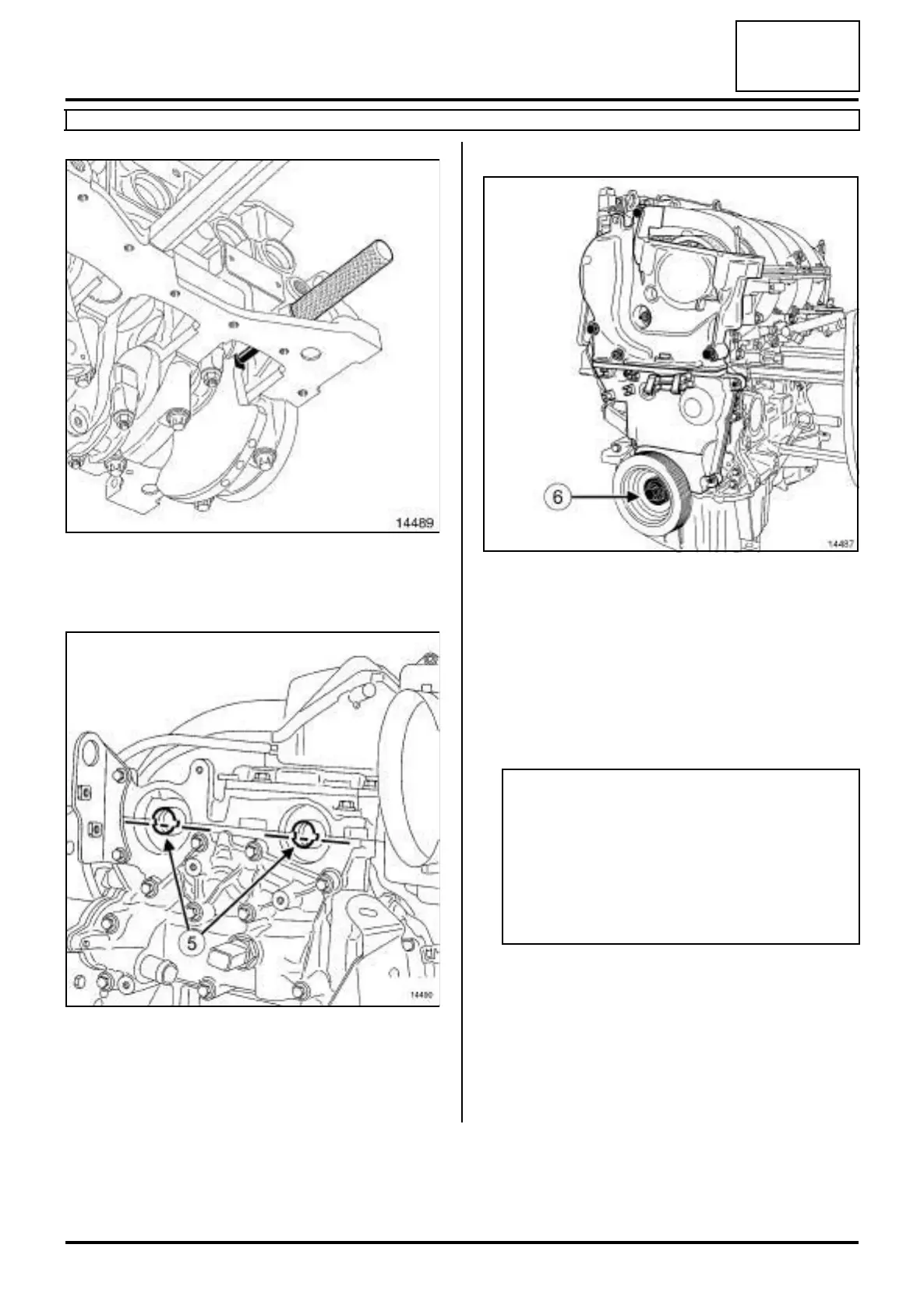

a Turn the crankshaft in its operating direction (clock-
wise at timing end), until the crankshaft presses
against the TDC setting pin.
a The camshaft grooves (5) must be horizontal and
offset downwards.
a Remove the TDC setting pin.
a Lock the flywheel using a screwdriver.
II - REMOVAL OPERATION
a Remove the crankshaft accessories pulley bolt (6) .
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Crankshaft acces-
sories pulley bolts
a
14489
14490
14487
WARNING
Be sure to degrease:
- the end of the crankshaft,
- the bearing face of the crankshaft accessories
pulley.
This is to prevent timing slippage.
