11A-15
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K4M
11A

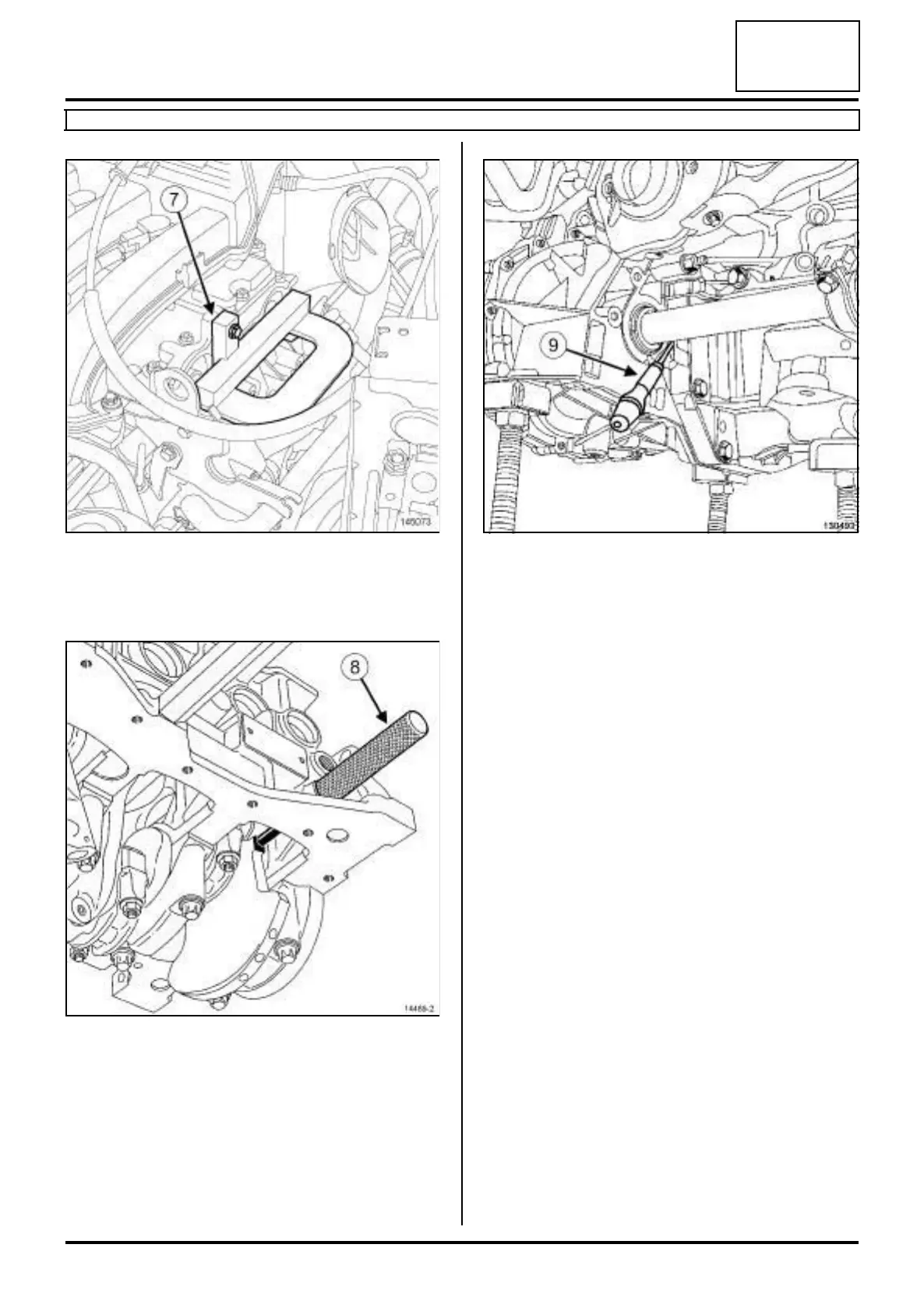

a Position the setting tool.
a Secure theto the ends of the camshafts using an M6
bolt (7) .
a Screw in the TDC setting pin (8) .
a Check that the crankshaft is pressing against the
TDC tool.
a The crankshaft groove must be upwards.
a If the crankshaft is not pressing against the TDC
tool, bring the crankshaft back by turning the fly-
wheel using a screwdriver (9) .
II - REFITTING OPERATION
a Refit the crankshaft accessories pulley.
a Torque and angle tighten the new crankshaft ac-
cessories pulley bolt (40 N.m + 145˚ ±±
±±
15˚).
III - FINAL OPERATION
a Remove:
- the TDC tool,
- the setting tool.
a Refit:
-a new inlet camshaft plug using the,
-a new exhaust camshaft plug using the.
a Place a drop of SILICONE ADHESIVE SEALANT
(see Vehicle: Parts and consumables for the re-
pair) on the threading of the TDC pin plug.
a Refit the TDC setting pin plug.
a Torque tighten the TDC pin plug (25 N.m).
a Refit:
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) ,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
145073
14489-2
130493
