11A-25
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K4M
11A

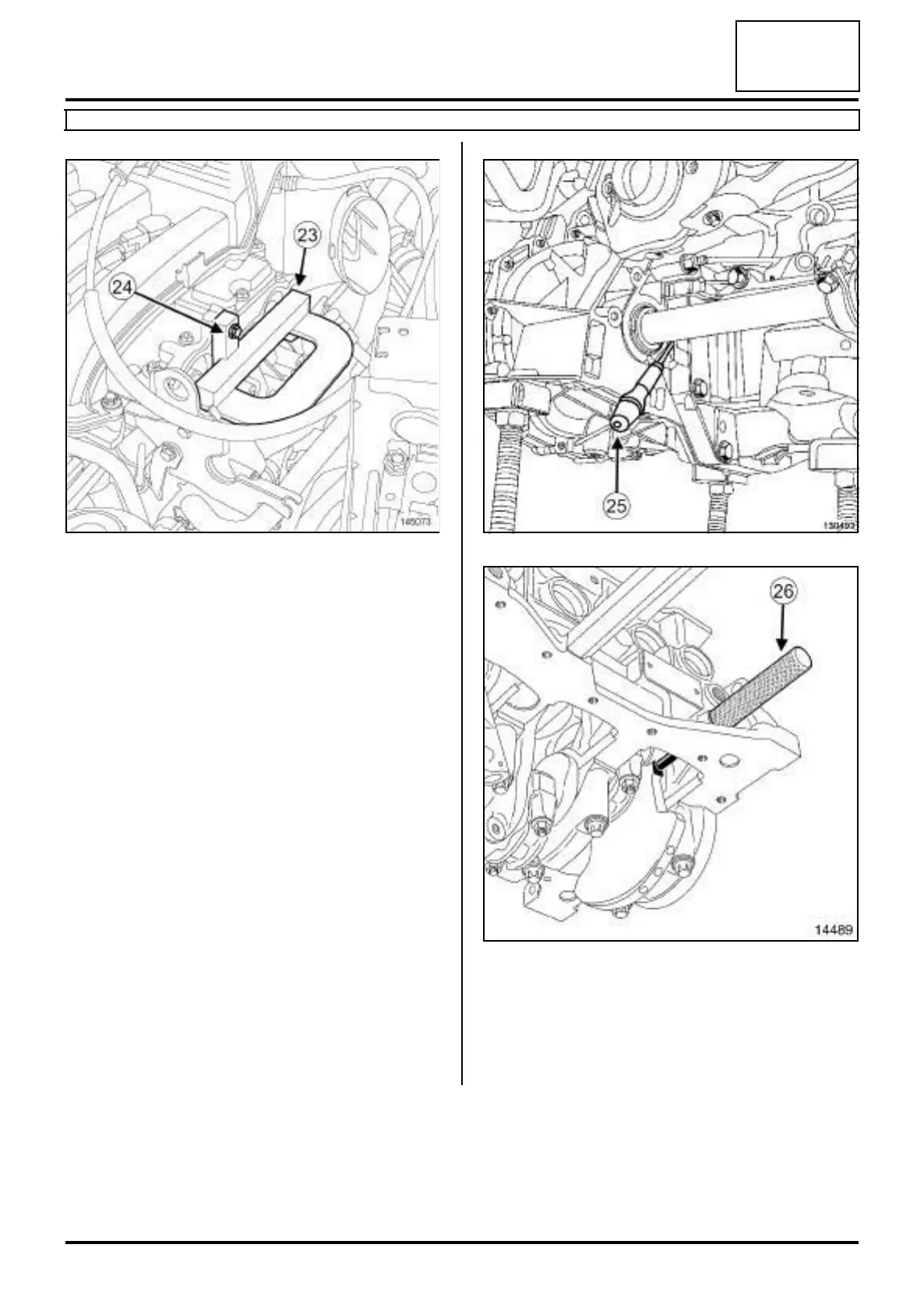

a Fit:
-the (23) onto the ends of the camshafts,
-an M6 bolt (24) to hold the.
a Refit:
-the crankshaft timing sprocket,
-the camshaft sprockets,
-every camshaft sprocket nut.
a Refit the toolon the cylinder block.
a Use a screwdriver (25) to check that the flywheel
does not turn (clockwise at the timing end), other-
wise bring the crankshaft back into contact with the
tool (26) using the screwdriver; the crankshaft
groove should be at the top.
145073 130493
14489
