11A-33
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K, and 796
11A

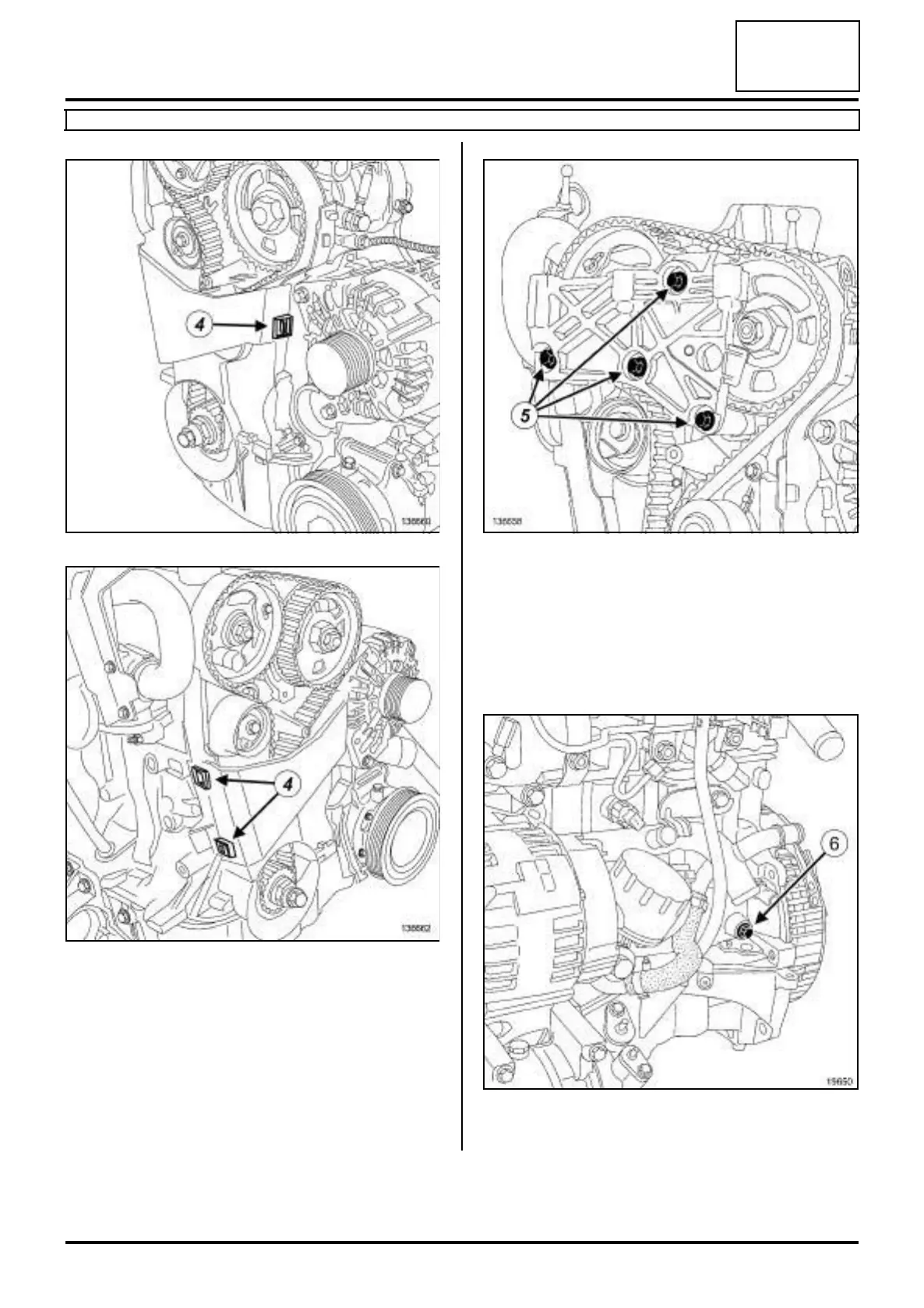

a Unclip the three tabs (4) .
a Remove the lower timing cover.
a Remove:
- the bolts (5) from the right-hand suspended engine
mounting support on the cylinder head,
- the right-hand pendulum suspension support.
II - REMOVAL OPERATION
a Remove the TDC pin plug (6) using a 14 female torx
socket.
