11A-34
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K, and 796
11A

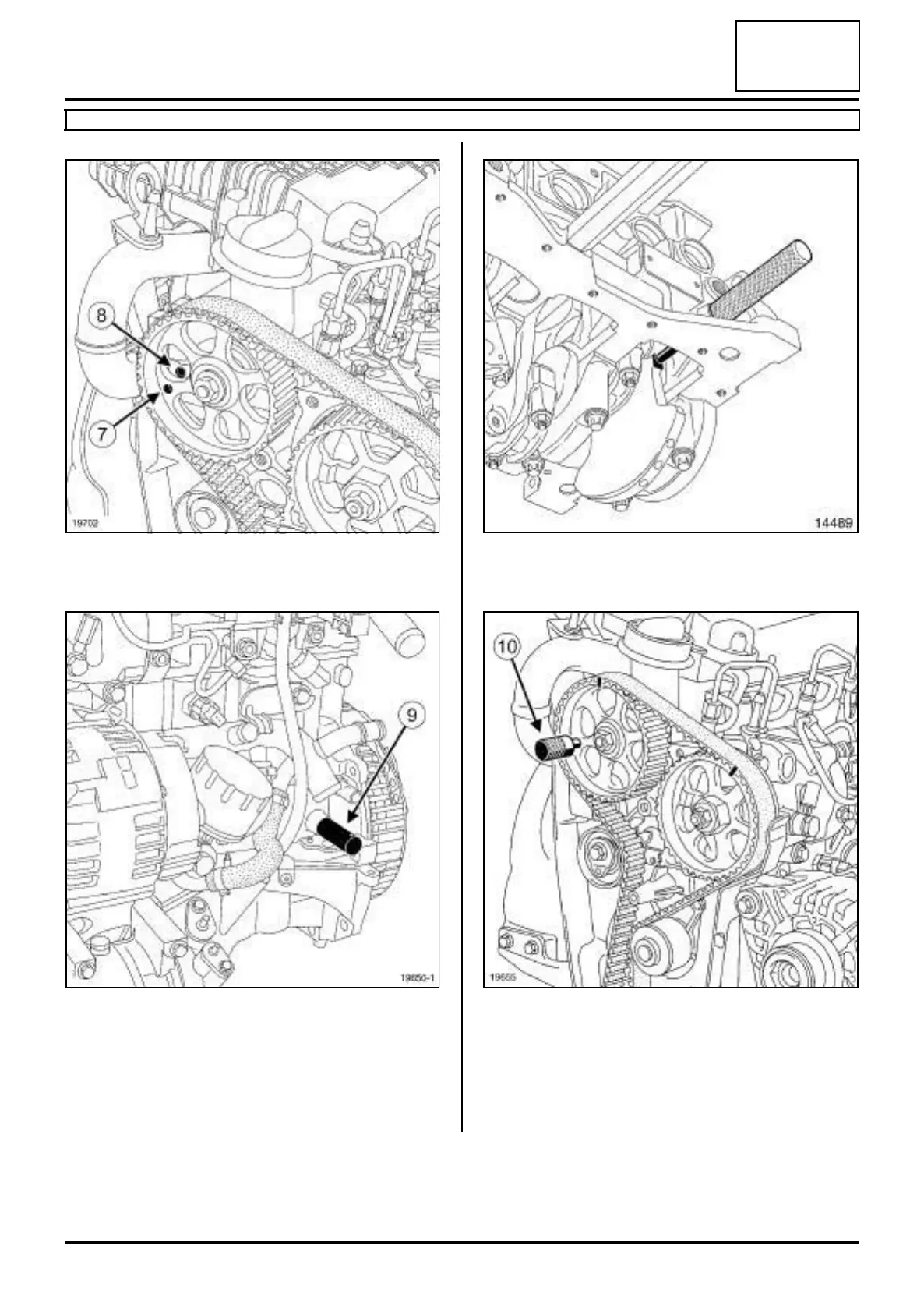

a Turn the crankshaft to position the camshaft pulley
hole (7) almost opposite the cylinder head hole (8) .
a Screw tool (Mot. 1489) (9) into the cylinder block.
a Turn the crankshaft clockwise (timing end) smoothly
until the crankshaft is against the (Mot. 1489).
a Insert the (Mot. 1430) (10) in the holes of the cam-
shaft pulley and cylinder head.
a Remove:
- the (Mot. 1430),
- the (Mot. 1489).
19702
19650-1
14489
19655
