11A-35
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K, and 796
11A

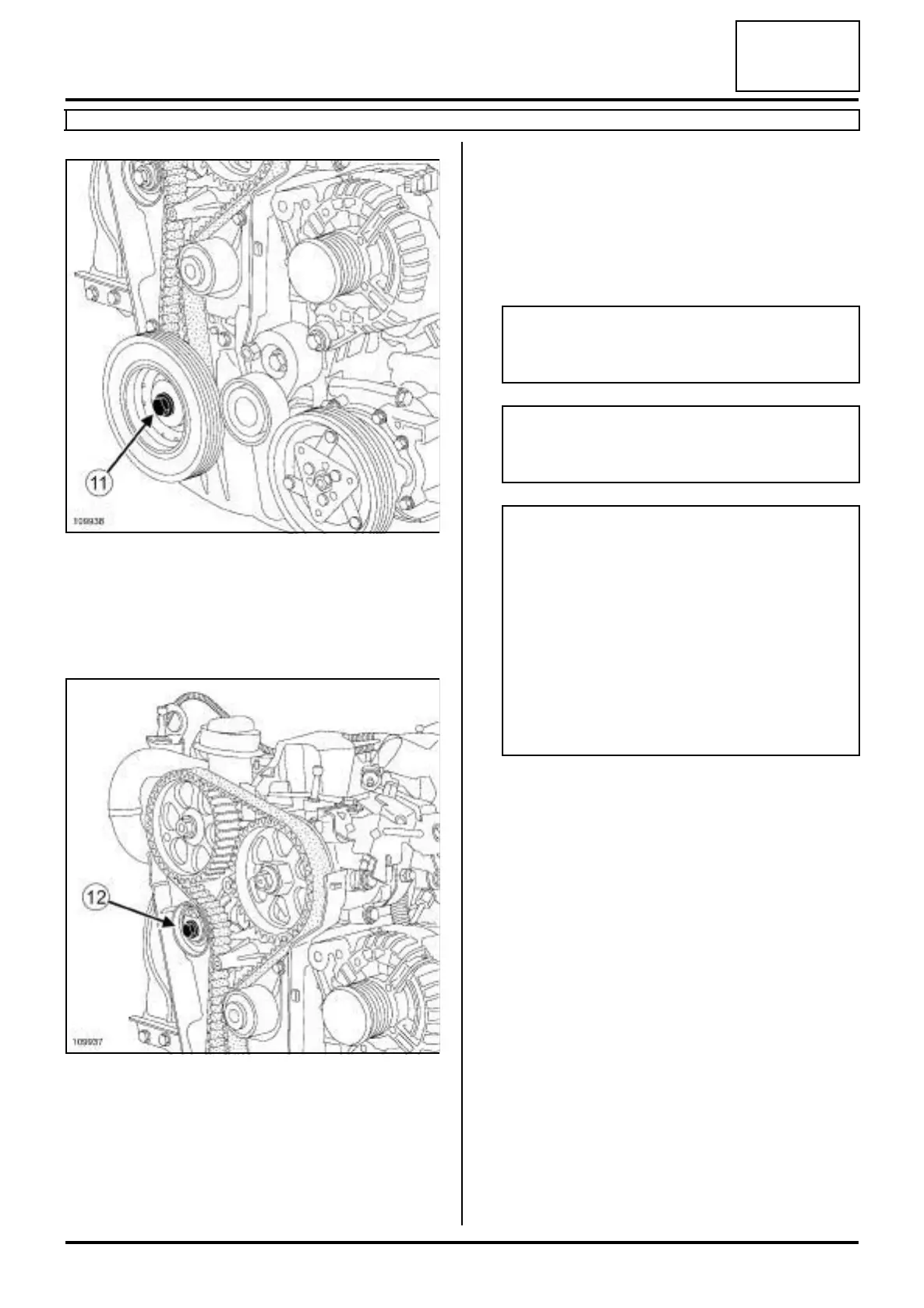

a Remove:
-the bolt (11) from the crankshaft accessories pul-
ley, locking the flywheel using a large screwdriver,
-the crankshaft accessories pulley.
a Undo the timing belt tensioning roller bolt (12) .
a Loosen the timing belt tensioning roller by turning
the eccentric cam using a 6 mm Allen key.
a Remove:
-the timing belt taking care not to let the crankshaft
timing sprocket fall out.
- the timing belt tensioning roller.
REFITTING
I - REFITTING PREPARATION OPERATION
a
II - PARTS AND CONSUMABLES FOR THE REPAIR
a parts always to be replaced: Crankshaft acces-
sories pulley bolts,
a parts always to be replaced: Timing belt tension-
ing roller,
a parts always to be replaced: Timing belt.
109938
109937
WARNING
The belt must be replaced with a new one if it
has been removed.
WARNING
When replacing the belt, always replace the ten-
sion wheels and idler pulleys.
WARNING
Always degrease:
- the end of the crankshaft (timing end),
- the timing sprocket pressure faces and bore of
the crankshaft,
- the contact surfaces of the crankshaft accesso-
ries pulley.
This is to avoid timing slippage.
This slippage leads to engine damage.
