11A-36
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K, and 796
11A
III - REFITTING OPERATION
a Refit:
-the crankshaft timing sprocket,
-a new timing belt tensioning roller.

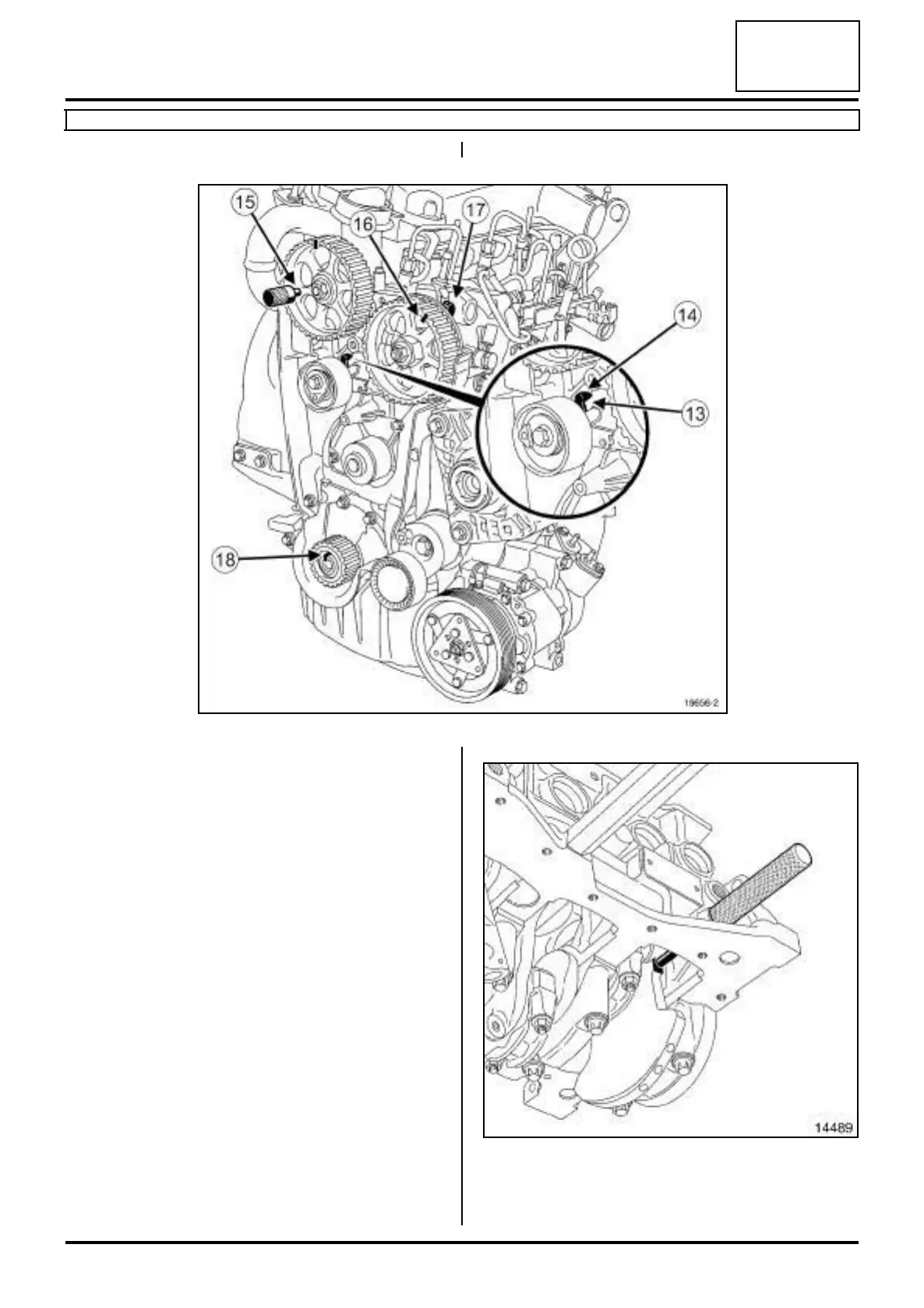

a Put the tensioning roller lug (13) in the cylinder head
groove (14) .
a Engage the (Mot. 1430) in the camshaft pulley hole
and the cylinder head hole at (15) , turning the cam-
shaft using an 18 mm offset wrench if necessary.
a Check that high-pressure pump pulley marking (16)
is opposite the bolt head (17) .
a Refit the (Mot. 1489).
a Place the crankshaft against the (Mot. 1489) (the
crankshaft groove (18) must be upwards).
19656-2
14489
